MS3456W16S-8S

AMP2344656_4
Heilind Number:AMP2344656-4
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W16S-8S
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

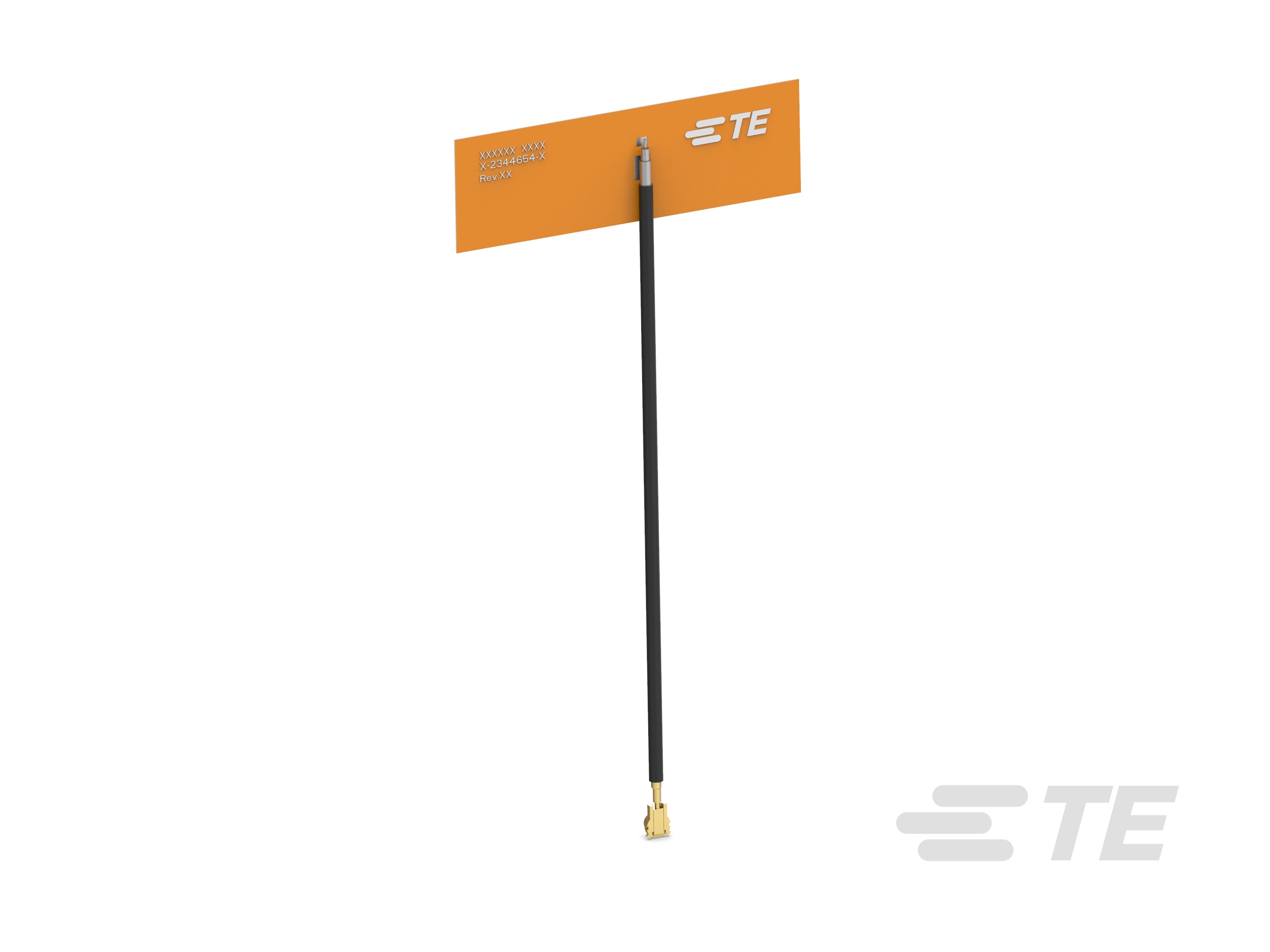

Flexible PCB (FPC) Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W16S-8S
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:2 dB
SKU:AMP2344656-4

Detailed Description

Enhance your connectivity with our Dual Band Flexible PCB Antenna, designed for optimal performance in Wi-Fi and Bluetooth applications. This internal/embedded mount antenna features a convenient adhesive backing for easy installation. With linear polarization and omnidirectional directionality, it ensures reliable signal transmission in any environment. Operating at frequencies of 2400-2500 MHz and 5150-5875 MHz, it covers a wide range for seamless communication. The MHF/MHF1/U.FL antenna termination options offer versatility for various devices. With a gain of less than 3 dBi, it provides a slight boost to signal strength without being overpowering. Upgrade your wireless setup with this high-quality, RoHS-compliant antenna.
