MS3456W16S-8SY

AMP2344656_6
Heilind Number:AMP2344656-6
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W16S-8SY
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

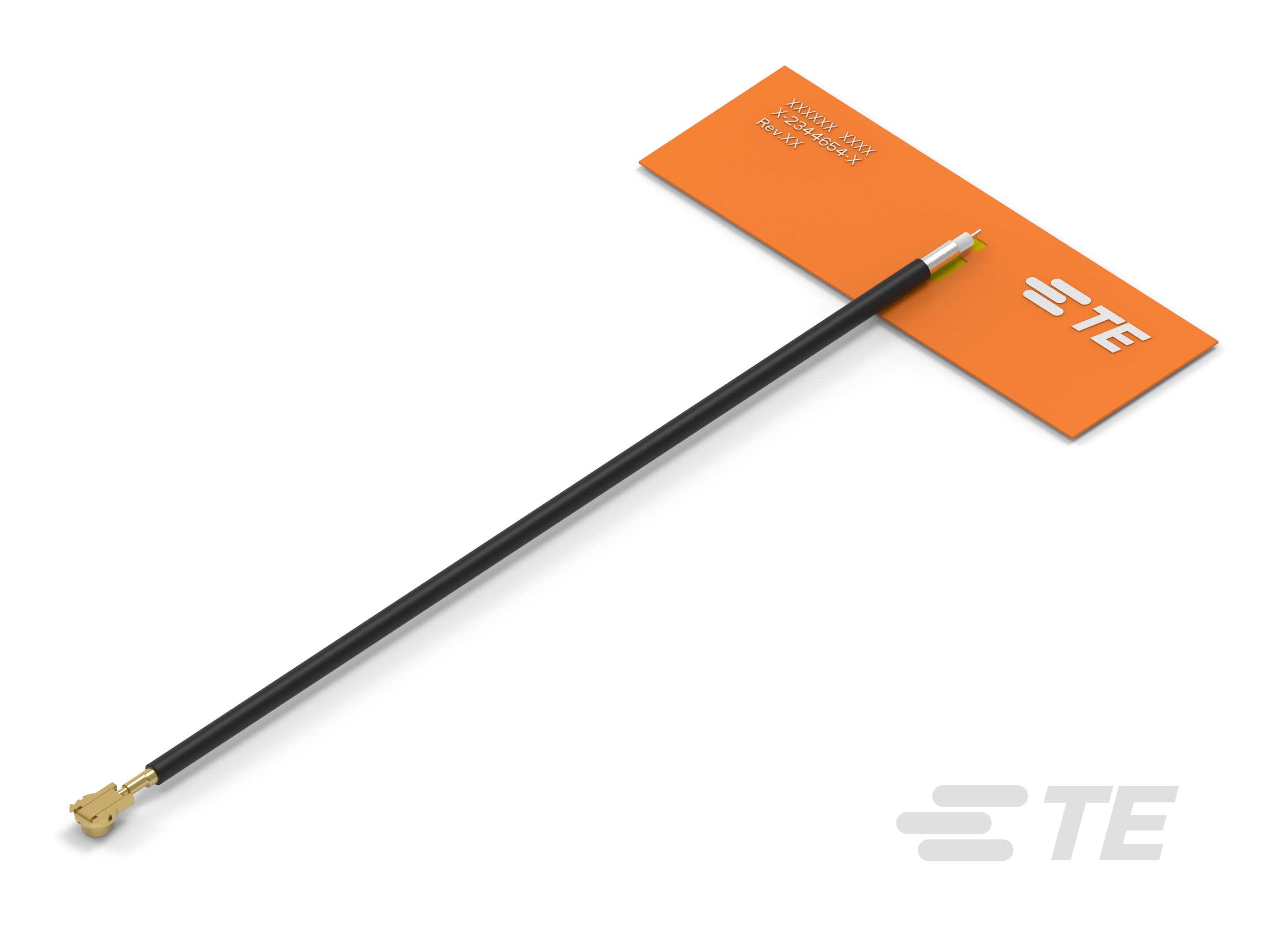

Flexible PCB (FPC) Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W16S-8SY
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:5 dB
SKU:AMP2344656-6

Detailed Description

This RoHS-compliant flexible PCB (FPC) antenna offers a 5 dB gain with a VSWR of 2:1, ideal for seamless connectivity in ZigBee, Bluetooth, and various 802.11 protocols. Designed for dual-band operation, it covers frequencies from 2400 to 2500 MHz and 5150 to 5875 MHz, with a center frequency of 2450 MHz and 5512.5 MHz. Featuring linear polarization and omnidirectional directionality, this internal/embedded mount antenna ensures reliable signal transmission. With an impedance of 50 Ω and MHF4 termination, it is suitable for Bluetooth and Wi-Fi applications. The adhesive mounting style and thin PCB construction make it easy to integrate into devices while delivering a gain of 3 to 6 dBi. Perfect for enhancing wireless connectivity, this antenna is a versatile choice for various applications.
