MS3456W18-10P

AMP2344656_7
Heilind Number:AMP2344656-7
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W18-10P
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

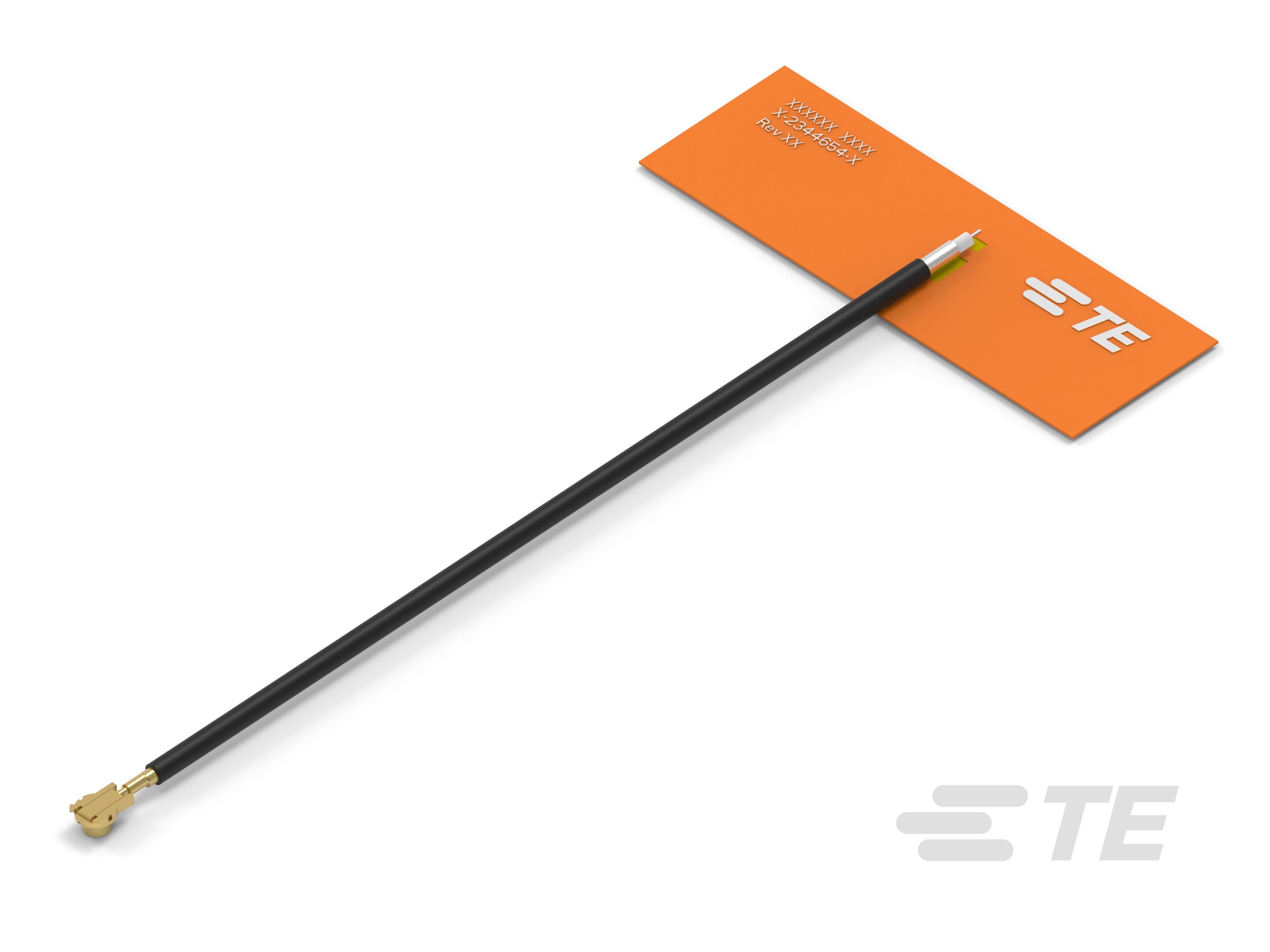

Flexible PCB (FPC) Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W18-10P
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:5 dB
SKU:AMP2344656-7

Detailed Description

Stay connected with our cutting-edge Flexible PCB (FPC) Antenna, designed for seamless integration into your devices. This Dual Band marvel operates in the 2.4 GHz and 5 GHz frequency ranges, catering to a wide range of applications including ZigBee, Bluetooth, and various 802.11 standards. With a sleek internal/embedded mount and adhesive backing, installation is a breeze. Boasting a linear polarization and omnidirectional directionality, it ensures reliable signal transmission in any environment. Featuring a 50 Ω impedance and MHF4 termination, it guarantees optimal performance. Ideal for Bluetooth and Wi-Fi applications, this antenna offers a gain of 3 < 6 dBi, making it a powerhouse in the realm of wireless connectivity. Elevate your technology with this essential component.
