MS3456W18-10PX

AMP2344656_8
Heilind Number:AMP2344656-8
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W18-10PX
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

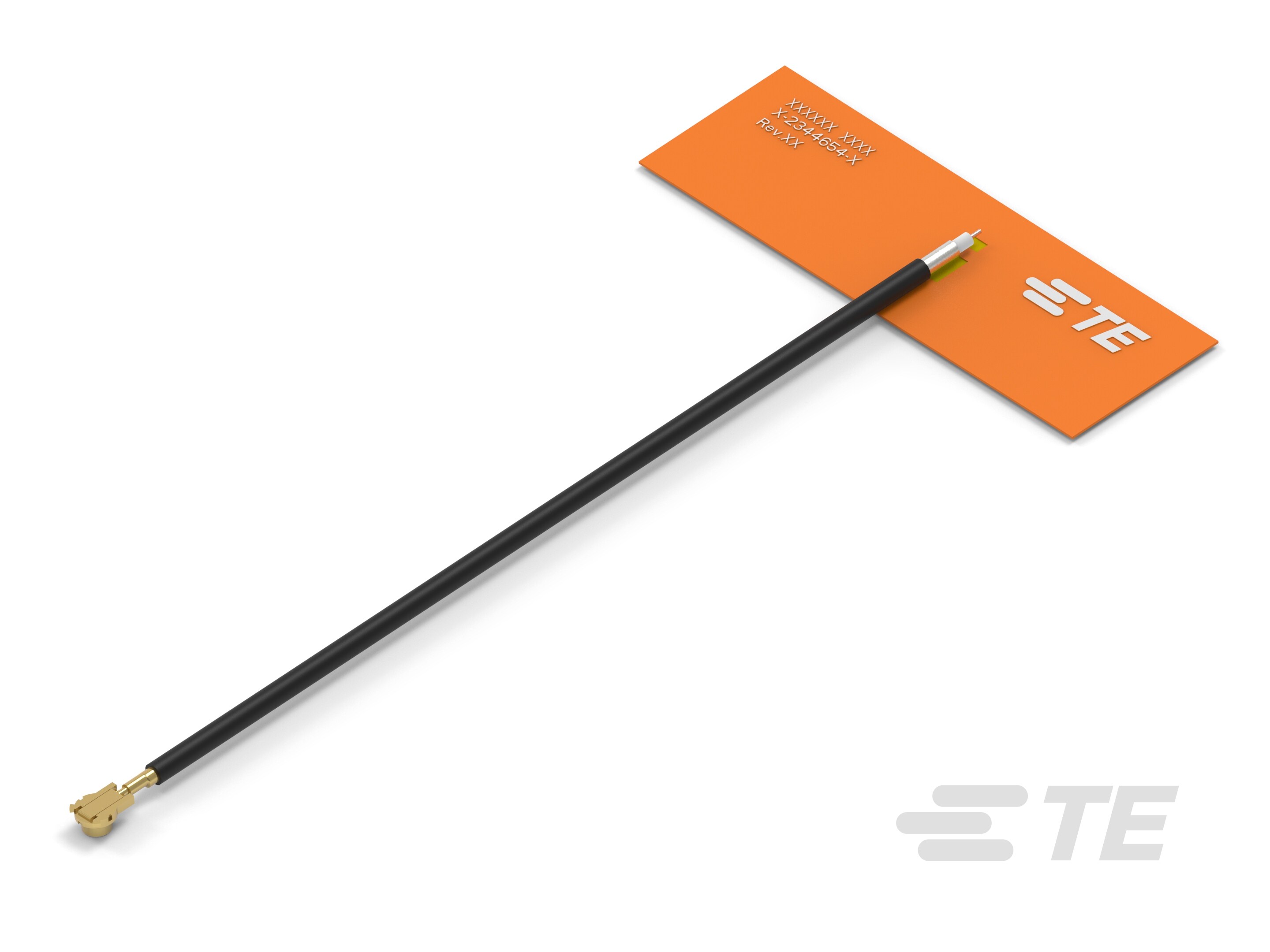

Flexible PCB (FPC) Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W18-10PX
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:5 dB
SKU:AMP2344656-8

Detailed Description

Stay connected seamlessly with our RoHS-compliant flexible PCB antenna, boasting a 5 dB gain and 2:1 VSWR for optimal signal reception. Designed for ZigBee, Bluetooth, and various 802.11 standards including a, ac, ad, b, g, and n, this antenna operates in the 2.4 - 2.5 GHz and 5.15 - 5.875 GHz frequency ranges. With a linear polarization and omnidirectional directionality, it ensures reliable performance in diverse environments. The thin PCB construction with adhesive mounting offers easy integration, while the MHF4 termination simplifies connectivity. Ideal for Bluetooth and Wi-Fi applications, this antenna is a versatile choice for internal/embedded setups, delivering a gain of 3 to 6 dBi. Explore seamless connectivity with this high-performance antenna.
