MS3456W18-10PY

AMP2344657_1
Heilind Number:AMP2344657-1
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W18-10PY
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

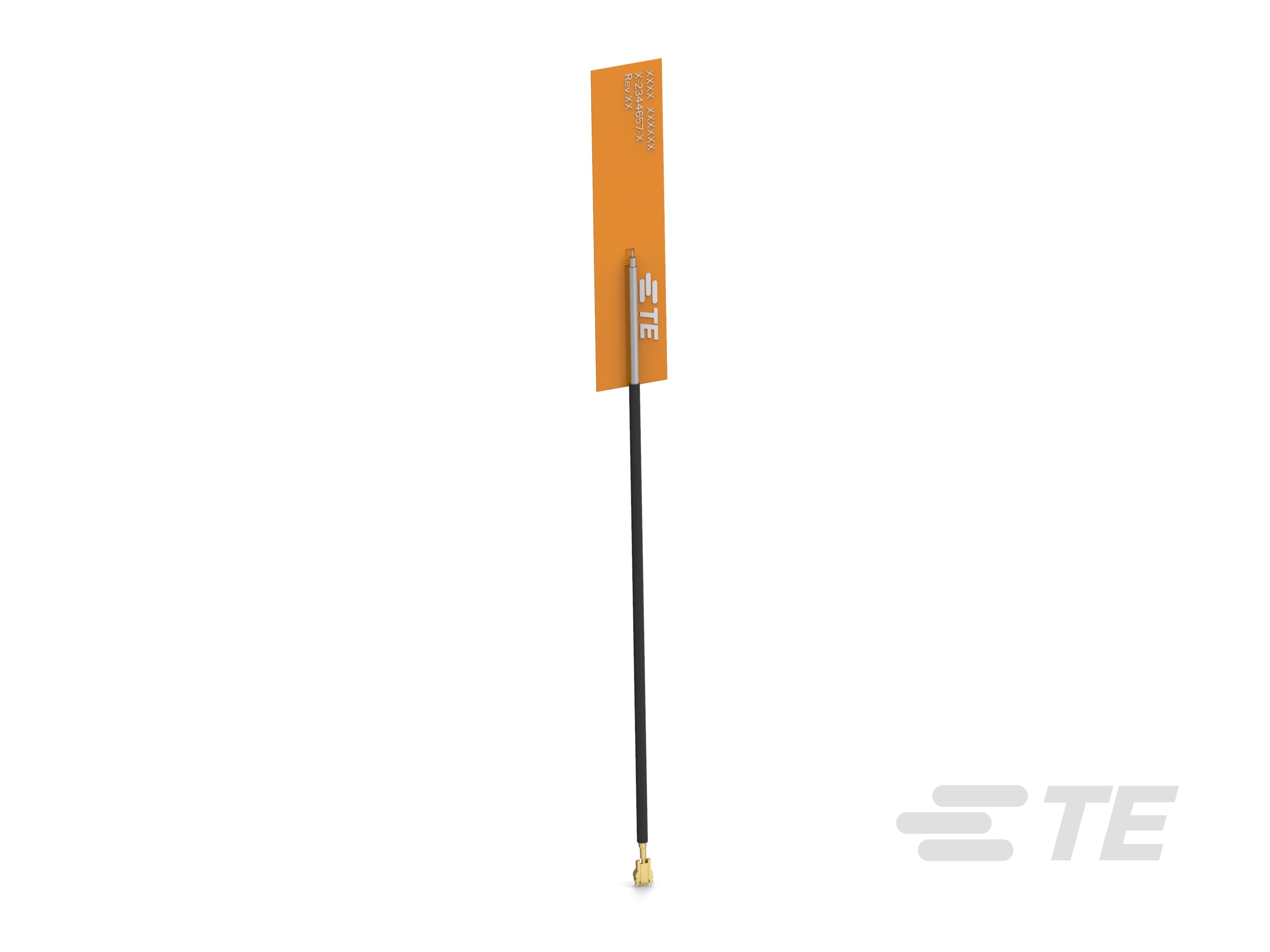

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W18-10PY
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2.7:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:5.3 dB
SKU:AMP2344657-1

Detailed Description

Stay connected with our RoHS compliant Flexible PCB (FPC) Antenna, designed for seamless integration into your devices. With a gain of 5.3 dB and VSWR of 2.7:1, this antenna operates across triple bands, including 2400 - 2500 MHz, 5150 - 5875 MHz, and 5925 - 7125 MHz, catering to ZigBee, Bluetooth, and various 802.11 protocols. Its linear polarization and omnidirectional directionality ensure reliable signal transmission, while the adhesive mounting style and 50 Ω impedance offer easy installation. Perfect for Bluetooth and Wi-Fi applications, this internal/embedded antenna, terminated with MHF, MHF1, U.FL, or UMCC connectors, delivers efficient performance with a gain range of 3 to 6 dBi. Explore its versatility in antenna design, passives, and other product categories.
