MS3456W18-11P

AMP2344657_5
Heilind Number:AMP2344657-5
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W18-11P
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

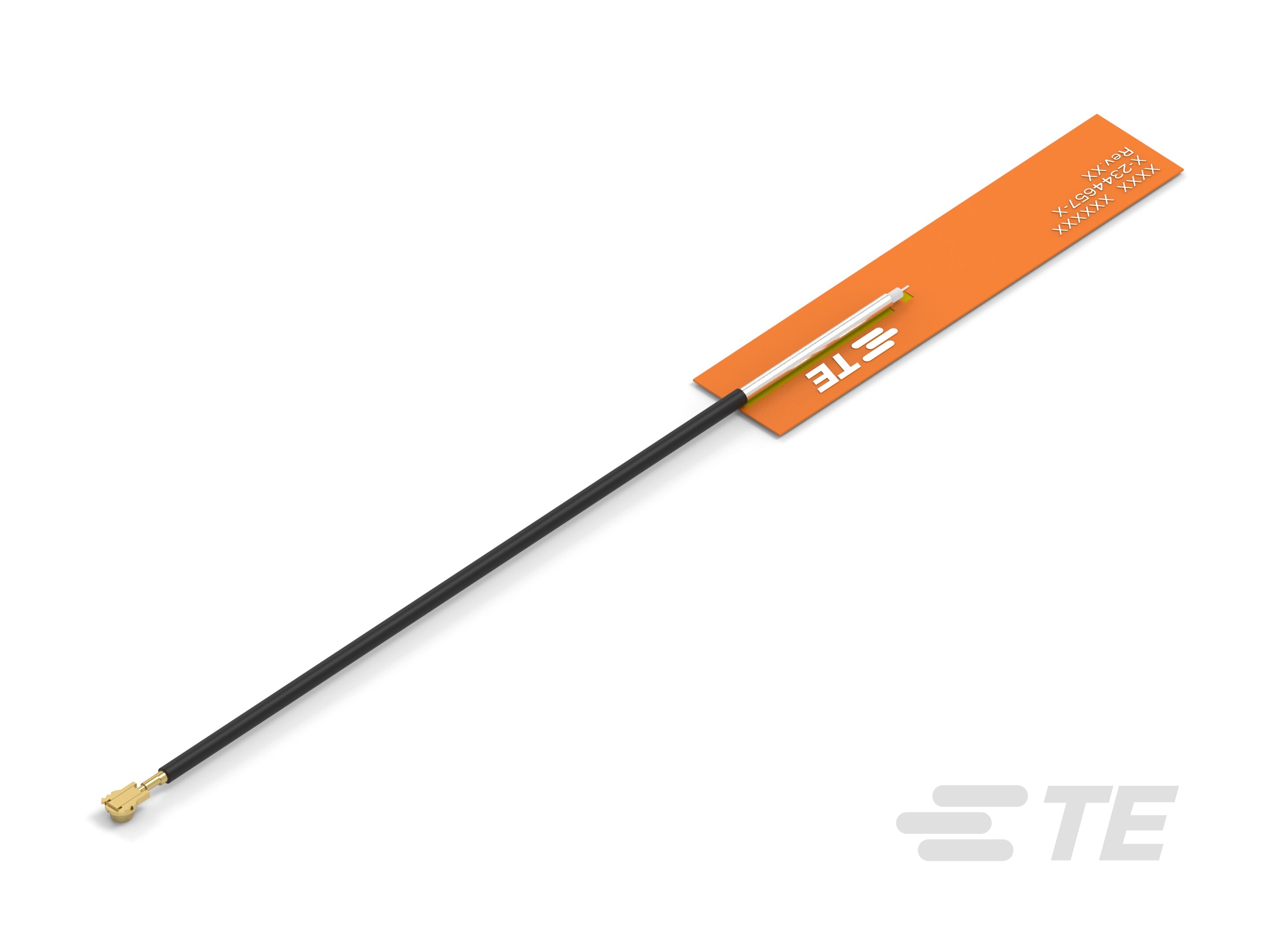

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W18-11P
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2.7:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:5.3 dB
SKU:AMP2344657-5

Detailed Description

Stay connected seamlessly with our Triple Band Flexible PCB (FPC) Antenna, designed for Wi-Fi applications. With a gain of 5.3 dB and a VSWR of 2.7:1, it ensures reliable signal transmission in the 2.4 GHz, 5 GHz, and 6 GHz frequency bands. Featuring a linear polarization and omnidirectional directionality, this internal/embedded mount antenna guarantees efficient coverage. Its adhesive mounting style and MHF4 termination offer easy installation, while the 50 Ω impedance ensures compatibility with various devices. Perfect for Bluetooth and Wi-Fi setups, it's a versatile choice for achieving optimal connectivity in a range of applications.
