MS3456W18-11PX

AMP2344657_6
Heilind Number:AMP2344657-6
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W18-11PX
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

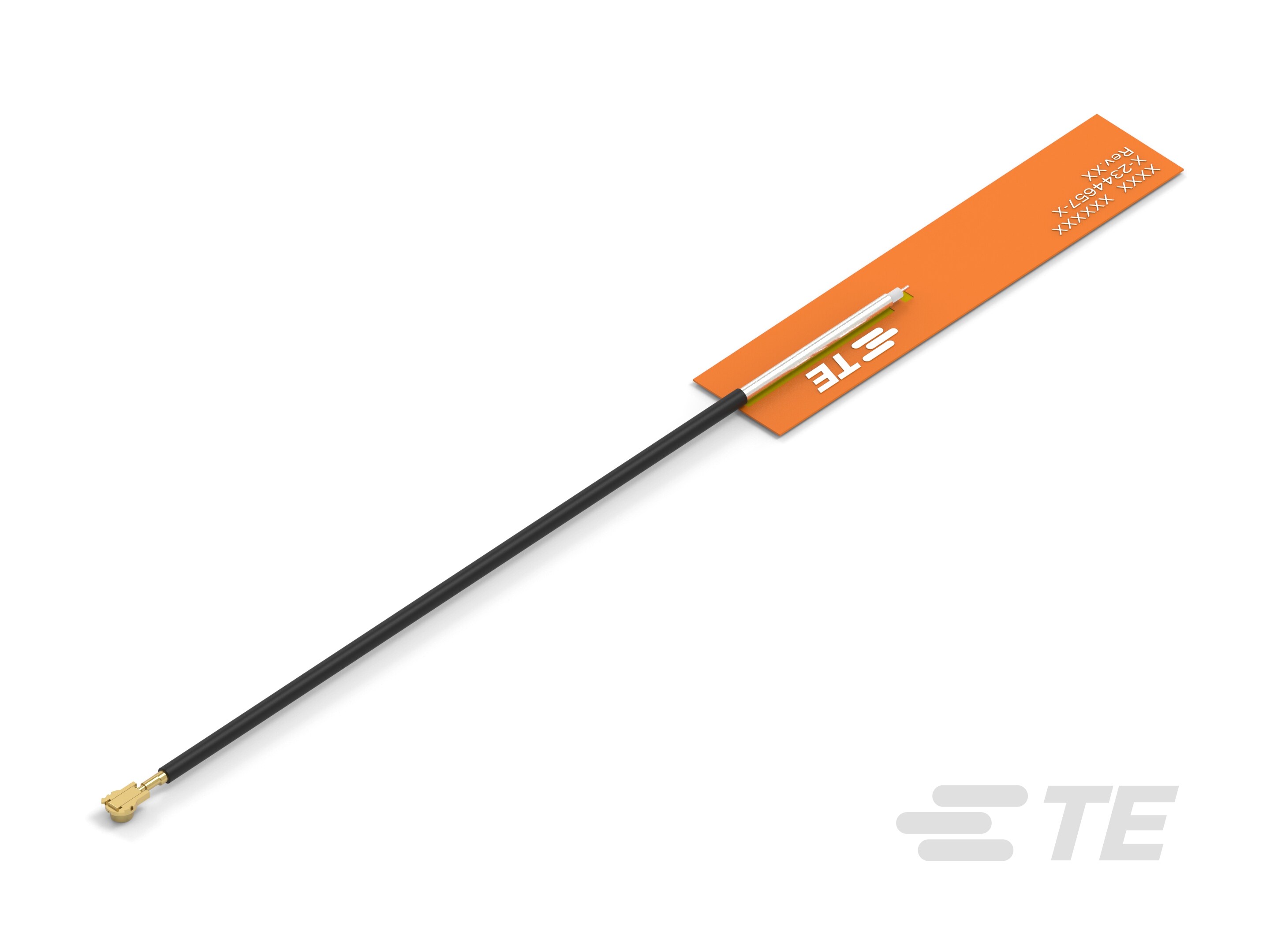

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W18-11PX
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2.7:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Triple Band
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Gain:5.3 dB
SKU:AMP2344657-6

Detailed Description

Stay connected seamlessly with our RoHS-compliant Triple Band Flexible PCB Antenna, designed for optimal performance across ZigBee, Bluetooth, and various 802.11 standards. Offering a gain of 5.3 dB and VSWR of 2.7:1, this antenna ensures reliable signal transmission in the 2.4GHz, 5GHz, and 6GHz frequency bands. Its linear polarization and omnidirectional design guarantee uniform coverage, while the adhesive mounting style facilitates easy installation. With a compact form factor and impedance of 50 Ω, it's perfect for internal/embedded placement in devices requiring Wi-Fi connectivity. Compatible with MHF4 termination, this antenna is a versatile solution for Bluetooth and Wi-Fi applications, delivering a gain of 3-6 dBi for efficient signal reception and transmission. Ideal for a wide range of wireless communication systems, it's a must-have component in your connectivity arsenal.
