2372105-2

AMP2372105_2
Heilind Number:AMP2372105-2
Manufacturer:TE Connectivity
Manufacturer Number:2372105-2
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

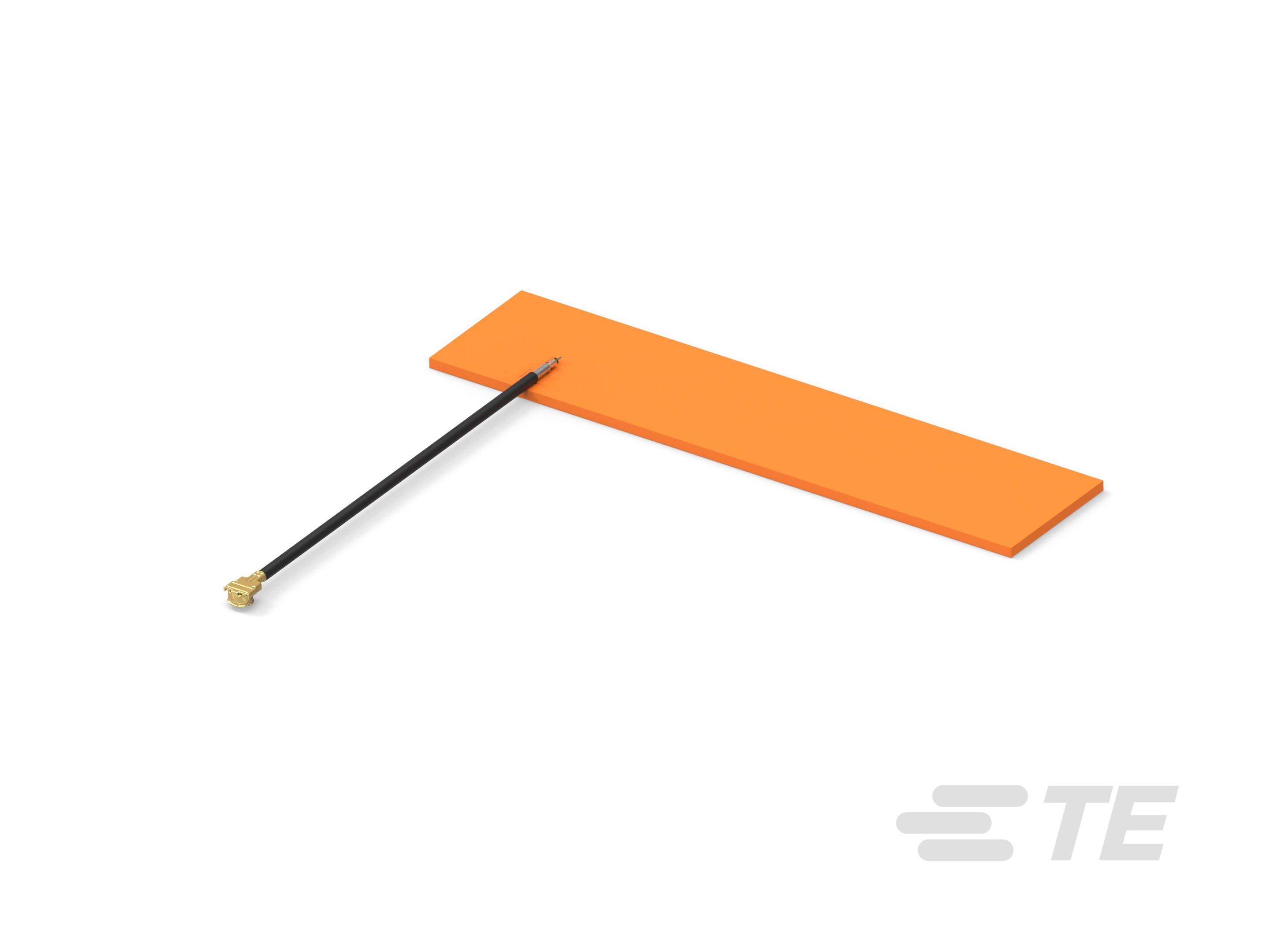

PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2372105-2
Gain:2.5 dB
VSWR:3:1
Protocol:EU Triband, LTE, UMTS, US Dual Band, WCDMA
Band Type:Multi Band
Impedance:50 Ω
Antenna Type:PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:1710 - 2700 MHz, 698 - 960 MHz
Center Frequency:2205 MHz, 829 MHz
Application:Cat-M/NB-IoT, Cellular, LoRaWAN, LPWA, Wi-Fi, Zigbee
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2372105-2

Detailed Description

Stay connected with our RoHS-compliant PCB Antenna, ideal for LTE, UMTS, EU Triband, US Dual Band, and WCDMA applications. Featuring a gain of 2.5 dB and VSWR of 3:1, this multi-band antenna operates over a frequency range of 1710-2700 MHz and 698-960 MHz. With a linear polarization and omnidirectional directionality, it ensures reliable signal reception. Designed for internal/embedded mounting with adhesive, it offers seamless integration. Perfect for Cat-M/NB-IoT, Cellular, LoRaWAN, LPWA, Wi-Fi, and Zigbee applications, it is versatile and efficient. The antenna termination options include MHF, MHF1, U.FL, and UMCC connectors, catering to various connectivity needs. Ideal for a range of devices, this antenna promises high performance and connectivity.
