282828-7

AMP282828-7
Heilind Number:AMP282828-7
Manufacturer:TE Connectivity
Manufacturer Number:282828-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

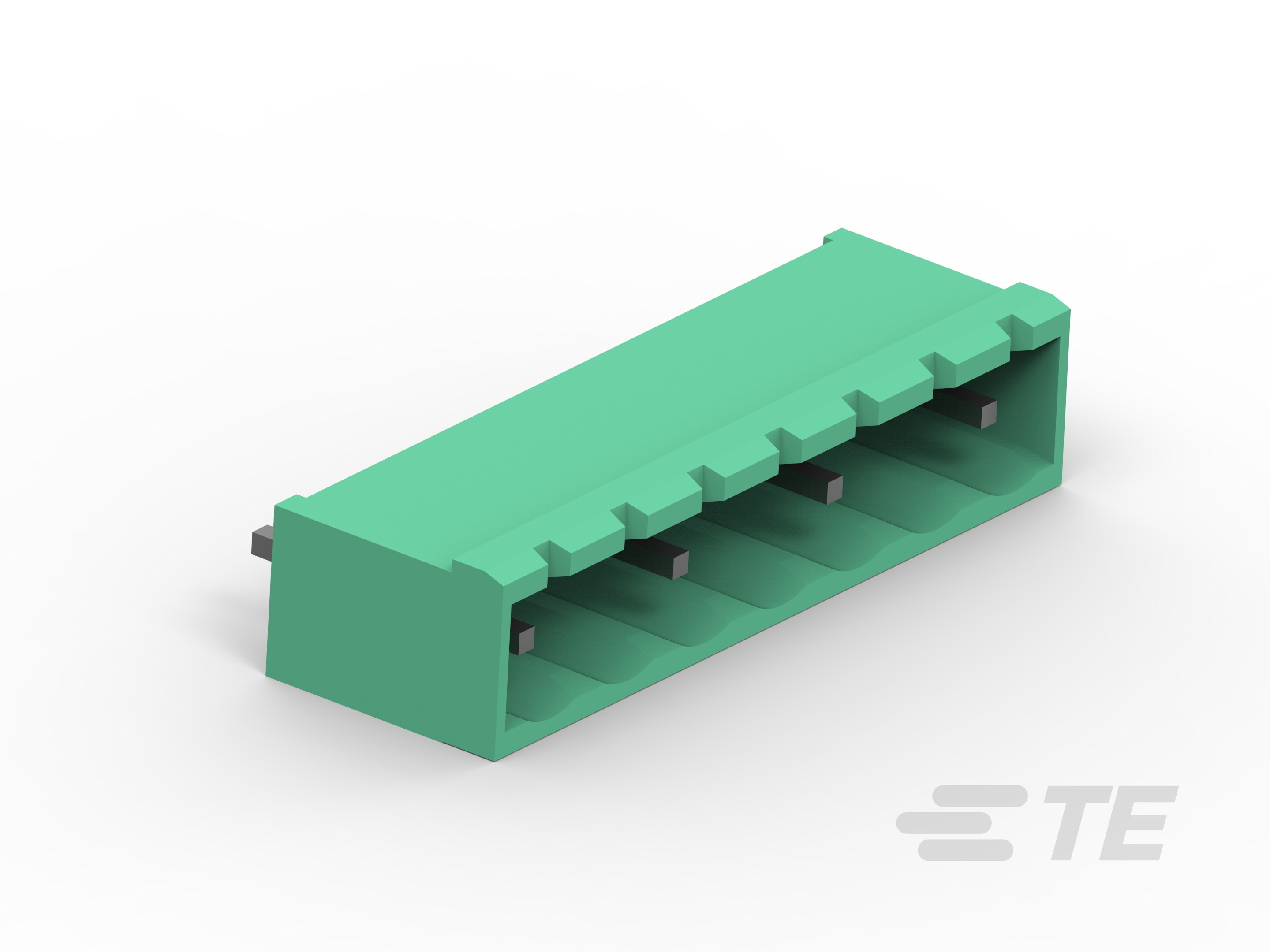

TERMI-BLOK HEADER,ASSY90 7P.

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282828-7
Amperage:15 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:10.16 mm, .4 in
Voltage:600 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Package Quantity:50
Contact Amperage:15 A
Number of Positions:7
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:180°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:282828-7
SKU:AMP282828-7

Detailed Description

Easily connect power and signal wires with this TERMI-BLOK HEADER, ASSY90 7P. Featuring a durable PA 6/6 housing in a vibrant green color, this connector is designed for board mount installation with a single row of 7 positions. With a 10.16mm pitch and 600V AC voltage rating, it ensures reliable performance in various industrial applications. The copper alloy contacts with tin plating are suitable for wire sizes ranging from 12 to 30 AWG, accommodating a wide range of needs. Operating in temperatures from -40 to 105°C, this header is RoHS compliant and suitable for lead-free soldering processes, making it a versatile and environmentally friendly choice for wire-to-board connections. Each package contains 50 units, ready for use in your projects.
