282844-3

AMP282844-3
Heilind Number:AMP282844-3
Manufacturer:TE Connectivity
Manufacturer Number:282844-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

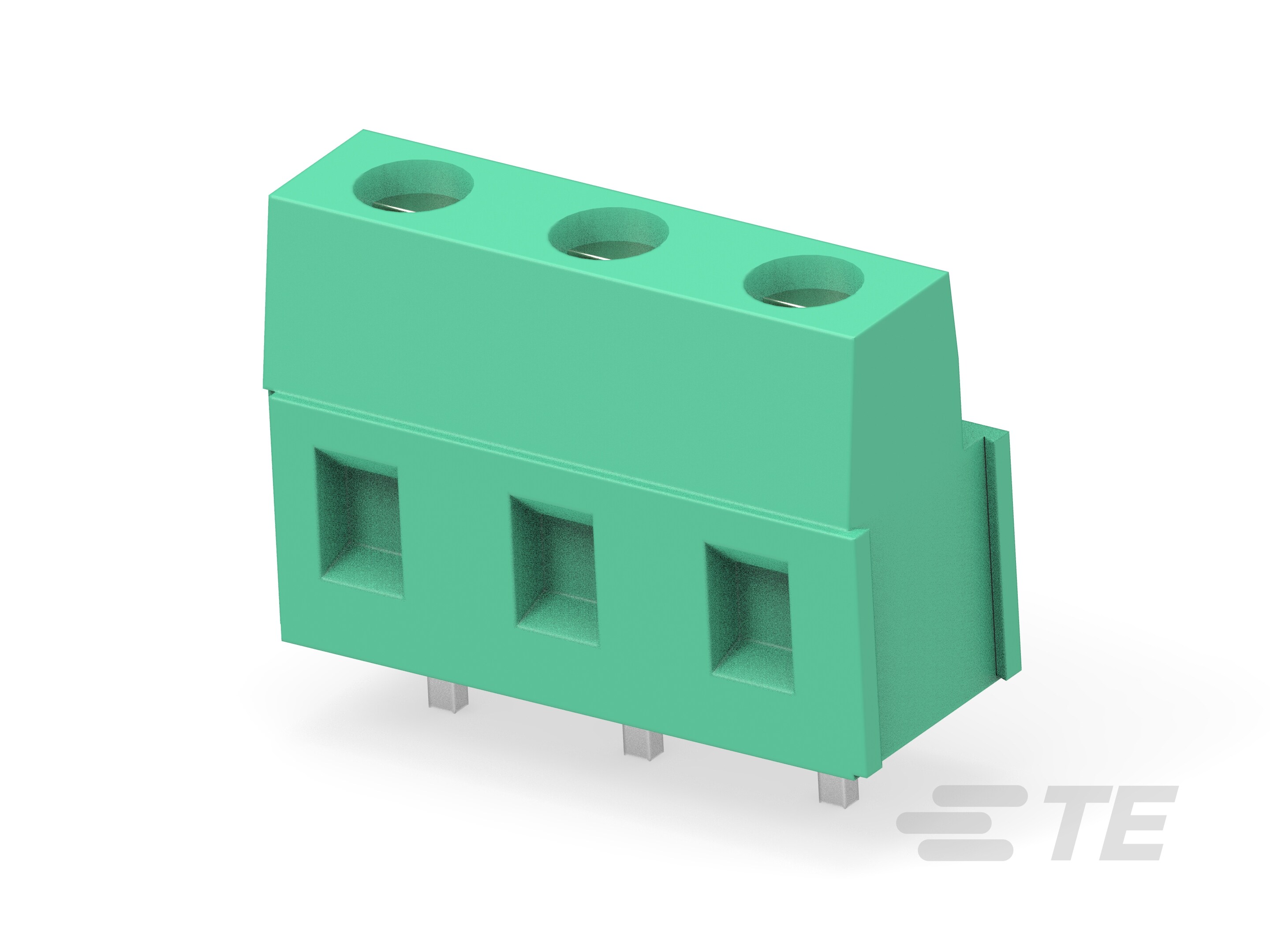

TERMI-BLOK PCB MOUNT 90 3P.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282844-3
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Screw Size:M3
Package Quantity:150
Contact Amperage:17.5 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282844-3
SKU:AMP282844-3

Detailed Description

Introducing the TERMI-BLOK PCB Mount 90 3P, a versatile and reliable solution for your connectivity needs. This header, with a 90° mount angle, is designed for secure board attachment. Featuring a green PA 6/6 housing and durable brass contacts with tin plating, it ensures efficient power and signal transmission. With a 7.5mm pitch and 3.5mm tail length, it accommodates wire sizes from 0.05 to 2mm² (12-30 AWG). Rated for 17.5A and 300V AC, it is suitable for industrial applications. RoHS compliant and capable of wave soldering, it meets stringent quality standards. Ideal for wire-to-board connections, this header is a dependable choice for your projects.
