282847-3

AMP282847-3
Heilind Number:AMP282847-3
Manufacturer:TE Connectivity
Manufacturer Number:282847-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

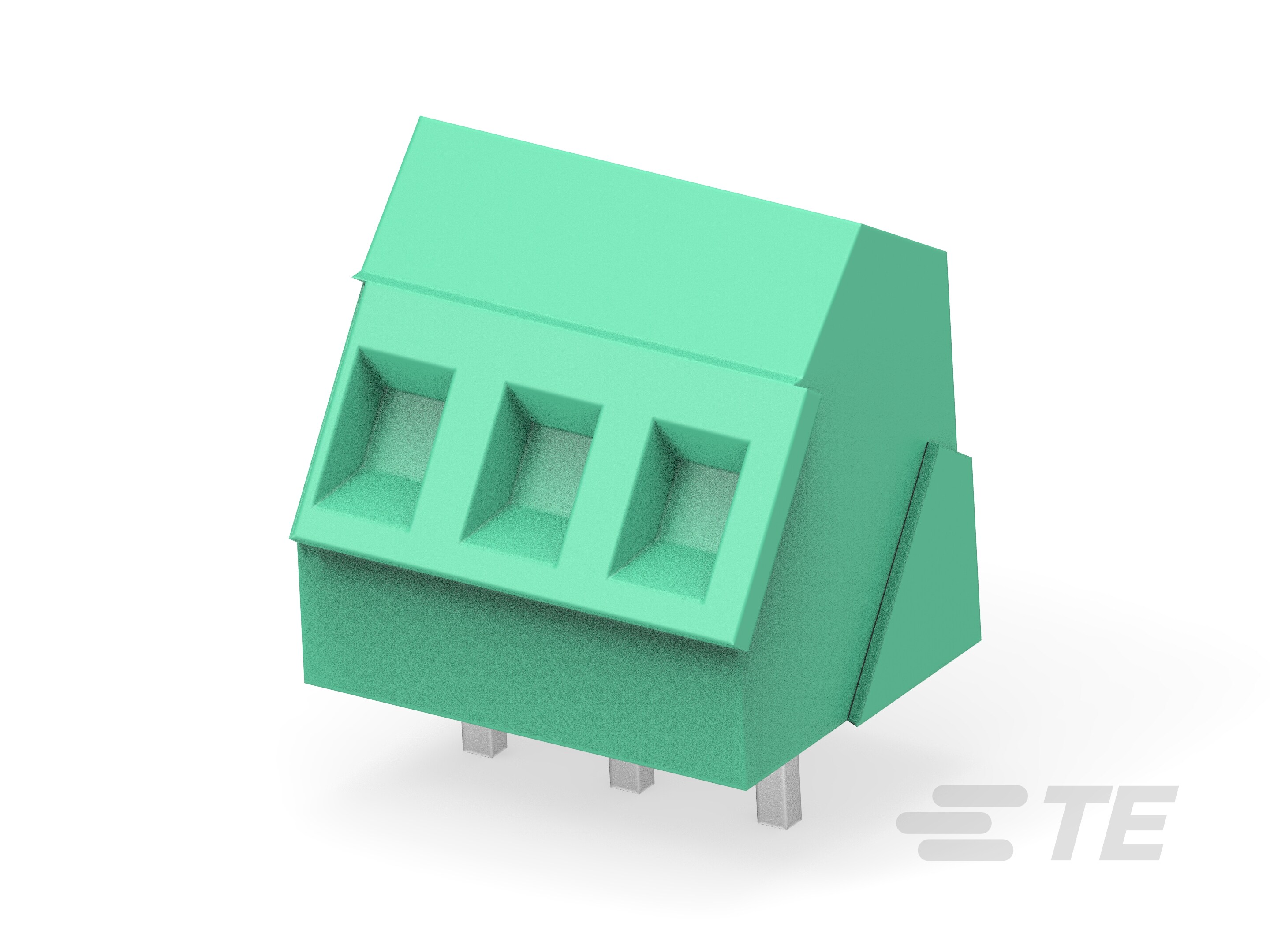

TERMI-BLOK PCB MOUNT 35 3P.5

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282847-3
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:200
Contact Amperage:17.5 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.15 in, 3.8 mm
Packaging:Carton
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:35° Angle
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282847-3
SKU:AMP282847-3

Detailed Description

Introducing the TERMI-BLOK PCB MOUNT 35 3P.5, a versatile solution for your power and signal connectivity needs. This header, featuring a single row with three contacts, is designed for efficient board mounting with a pitch of 5.08mm. With a robust housing made of PA 6/6 in a distinctive green color, it ensures durability and easy identification. The brass contact material, plated with tin for optimal conductivity, can accommodate wire sizes ranging from 12 to 30 AWG. Operating in a wide temperature range from -40 to 110°C, it is suitable for various industrial applications. Wave solder capable and RoHS compliant, this connector guarantees reliable performance while meeting environmental standards. With its 35° entry angle and side stackable configuration, it offers flexibility in installation. Whether you're assembling power systems or signal interfaces, the TERMI-BLOK 35 3P.5 is the perfect choice for secure and efficient connections.
