| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 282847-4 |
| Amperage: | 17.5 A |
| Gender: | Header |
| Housing Material: | PA 6/6 |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Mount Type: | Board Mount |
| Contact Material: | Brass |
| Pitch: | .2 in, 5.08 mm |
| Voltage: | 300 V AC |
| Mount Angle: | Straight |
| Block Type: | Stacking w/interlock |
| Screw Size: | M3 |
| Contact Amperage: | 17.5 A |
| Number of Positions: | 4 |
| Housing Color: | Green |
| GPL: | 124 |
| Tail Length: | .15 in, 3.8 mm |
| Operating Temperature Range: | -40 - 110 °C, -40 - 230 °F |
| Circuit Application: | Power & Signal |
| Contact Mating Area Plating: | Tin |
| GPL Description: | Industrial |
| Connector and Contact Terminate To: | Printed Circuit Board |
| Product Code: | 7742 |
| Wire Size: | .05 - 3 mm², 12 - 30 AWG |
| Connector System: | Wire to Board |
| Screw Material: | Brass |
| Stacking Configuration: | Side Stackable |
| ECCN: | EAR99 |
| Screw Plating: | Nickel |
| Entry Angle: | 35° Angle |
| Interlock: | With |
| Threaded Flange: | Without |
| Contact Mount Style: | Through Hole |
| Screw Flange: | Without |
| Screwless Terminal Block: | No |
| Wire Protection: | With |
| Part Aliases: | 282847-4 |
| SKU: | AMP282847-4 |

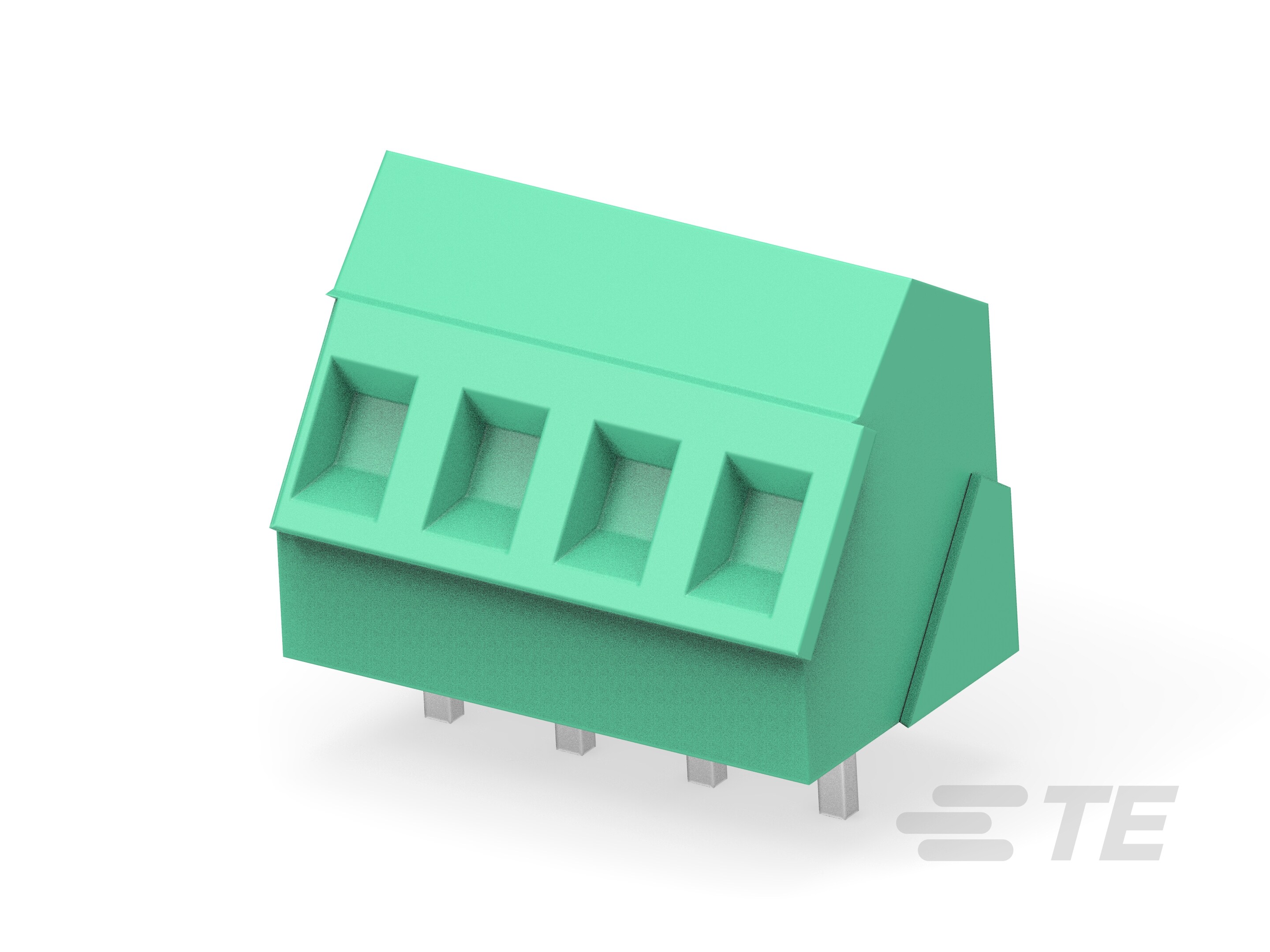

282847-4
Specifications
Detailed Description
Introducing the TERMI-BLOK PCB MOUNT 35 4P.5, a versatile and efficient solution for your power and signal connectivity needs. This straight-mount header features a stackable design with an interlock for secure connections. With a housing made of durable PA 6/6 material in a vibrant green color, it offers reliable performance in industrial environments. Each contact, crafted from brass with tin plating, ensures optimal conductivity. Rated for 17.5 A and 300 V AC, it accommodates wire sizes ranging from 12 to 30 AWG. Suitable for through-hole mounting on printed circuit boards, it guarantees easy and secure installation. Operating within a wide temperature range of -40 to 110°C (-40 to 230°F), this terminal block header is built to withstand harsh conditions. RoHS compliant and with a 35° entry angle, it meets international standards for environmental sustainability and ease of use. Upgrade your connectivity setup with the TERMI-BLOK 35 4P.5 for seamless and reliable performance.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 1546074-4 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
