282905-2

AMP282905-2
Heilind Number:AMP282905-2
Manufacturer:TE Connectivity
Manufacturer Number:282905-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

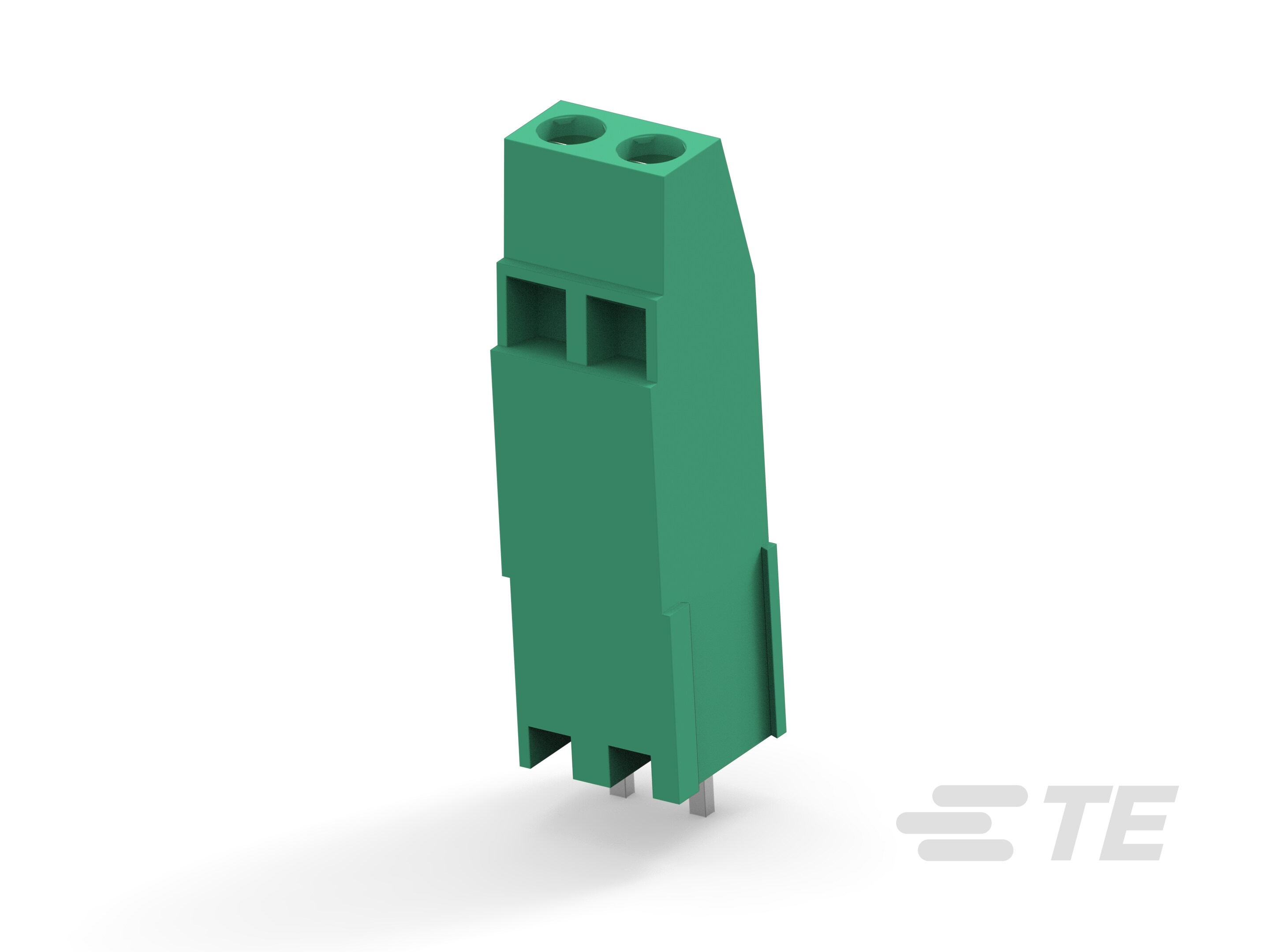

TERMI-BLOK PCB MOUNT 3RD 2P.5,

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282905-2
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:2
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Screw Size:M3
Package Quantity:250
Contact Amperage:17.5 A
Number of Positions:2
Housing Color:Green
GPL:124
Tail Length:.15 in, 3.8 mm
Packaging:Box
Operating Temperature Range:-40 - 120 °C, -40 - 248 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Shrouded
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Level 3
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282905-2
SKU:AMP282905-2

Detailed Description

Easily mount this TERMI-BLOK PCB connector for secure power and signal connections. With two brass contacts and a pitch of 5.08mm, it offers reliable performance for industrial applications. The header housing, made of durable PA 6/6 in a vibrant green color, ensures a sturdy connection. With a contact amperage of 17.5A and voltage rating of 300V AC, it's suitable for various power requirements. Featuring through-hole mounting and wave solder compatibility, installation is convenient and efficient. Meeting RoHS compliance standards, this connector is environmentally friendly. Perfect for wire-to-board connections, it accommodates 12-30 AWG wire sizes. Whether in a single or side-stackable configuration, this connector guarantees seamless connectivity in any setup.
