282959-3

AMP282959-3
Heilind Number:AMP282959-3
Manufacturer:TE Connectivity
Manufacturer Number:282959-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

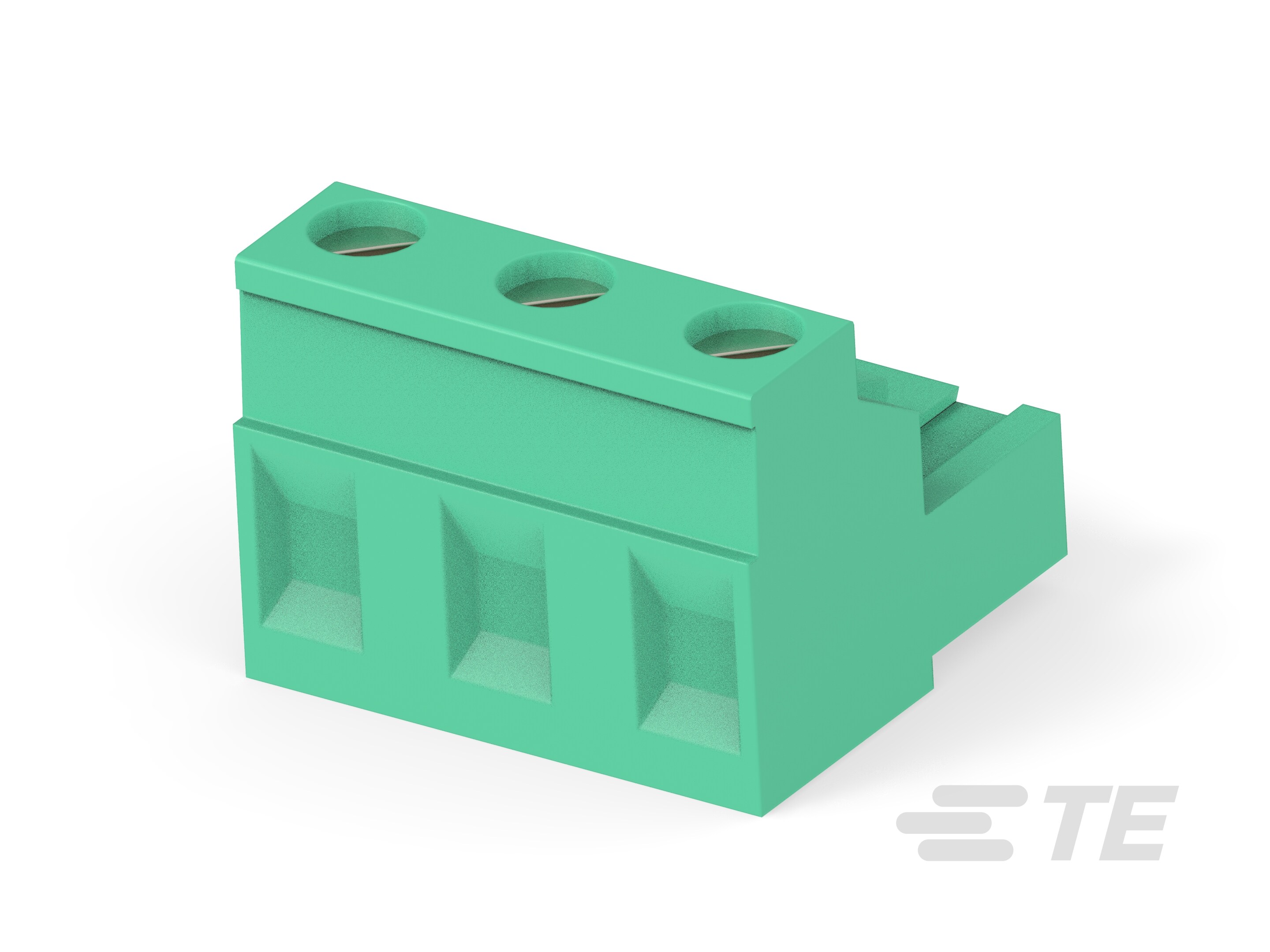

TERMI-BLOK PLUG 3P. 7

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282959-3
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:150
Contact Amperage:15 A
Number of Positions:3
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side, Top
Interlock:Without
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282959-3
SKU:AMP282959-3

Detailed Description

Introducing the TERMI-BLOK Plug, a 3-position, 7-amp connector designed for reliable power and signal transmission. With a durable PA 6/6 housing in a vibrant green hue, this plug is built for industrial applications. Featuring phosphor bronze contacts with tin plating, it ensures efficient conductivity. The right-angle mount and stacking plug design offer versatile installation options. Suitable for wire sizes ranging from 12-30 AWG, it accommodates various cable types. With RoHS compliance and an operating temperature range of -40 to 105°C (-40 to 221°F), it meets stringent industry standards for environmental and performance regulations. Each package includes 150 units, making it ideal for bulk installations. Upgrade your connectivity solutions with the TERMI-BLOK Plug.
