282959-5

AMP282959-5
Heilind Number:AMP282959-5
Manufacturer:TE Connectivity
Manufacturer Number:282959-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

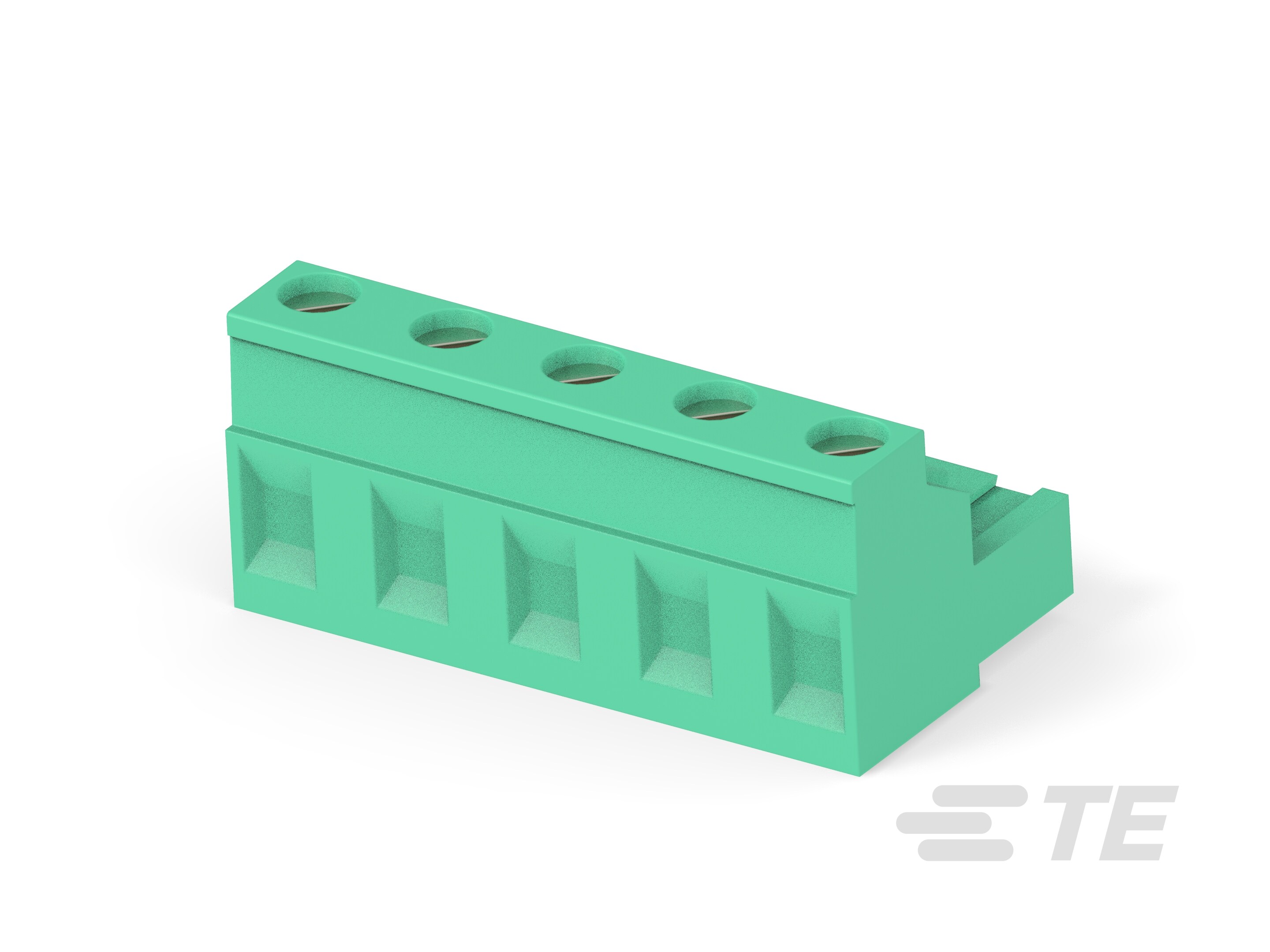

TERMI-BLOK PLUG 5P. 7

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282959-5
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:100
Contact Amperage:15 A
Number of Positions:5
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side, Top
Interlock:Without
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282959-5
SKU:AMP282959-5

Detailed Description

Experience seamless connectivity with our TERMI-BLOK PLUG, a versatile 5-position plug designed for high-performance power and signal applications. With a sturdy PA 6/6 housing in a vibrant green color, this plug offers durability and easy identification. Featuring phosphor bronze contacts with tin plating, it ensures reliable conductivity. The right-angle mount angle and stacking plug design make it ideal for space-saving installations. Suitable for wire sizes ranging from 12 to 30 AWG, it accommodates various setups with ease. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it guarantees performance in diverse environments. Compliant with RoHS standards, this plug is a sustainable choice for your connectivity needs. Whether for industrial or commercial use, the TERMI-BLOK PLUG delivers efficiency and quality in every connection.
