284093-4

AMP284093-4
Heilind Number:AMP284093-4
Manufacturer:TE Connectivity
Manufacturer Number:284093-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

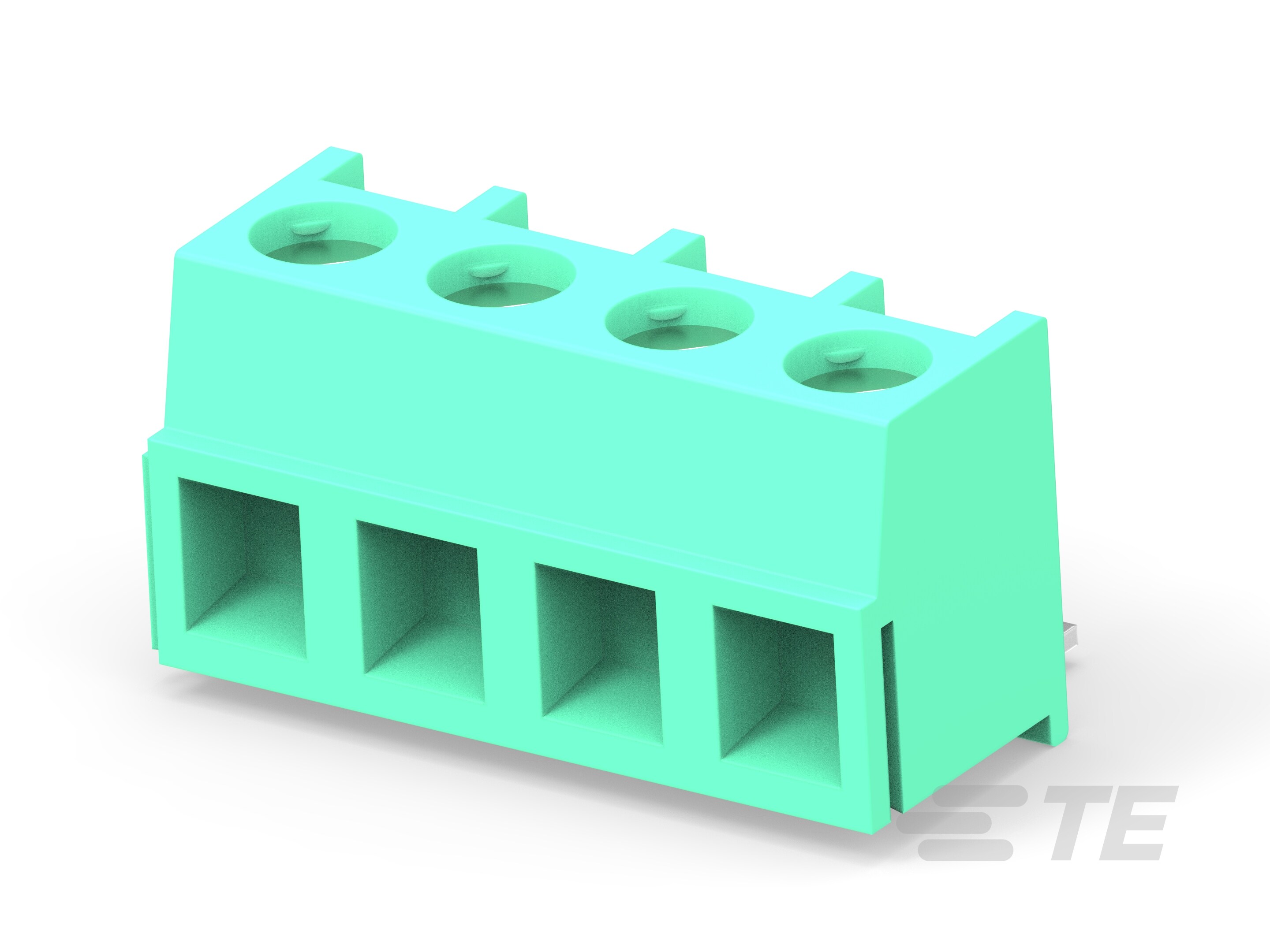

TERMI-BLOK PCB MOUNT 90, 5,0MM

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284093-4
Amperage:13.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:4
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.197 in, 5 mm
Voltage:300 V AC
Block Type:Stacking w/interlock
Screw Size:M3
Contact Amperage:300 A
Number of Positions:4
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 1.31 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Top
Interlock:With
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284093-4
SKU:AMP284093-4

Detailed Description

Easily mount and connect with our TERMI-BLOK PCB MOUNT 90, featuring a 5.0mm pitch and a durable PA 6/6 housing in a sleek green color. This header boasts 4 contacts arranged in a single row for efficient board mounting. With a maximum amperage of 13.5A and a voltage rating of 300V AC, it's ideal for power and signal applications. The contact material is high-quality brass with tin plating, ensuring reliable conductivity. Operating in a wide temperature range from -40 to 110°C (-40 to 230°F), this connector is suitable for various industrial settings. Its stacking design with interlock feature provides secure connections, while the through-hole mount type offers easy installation. RoHS compliant and designed for wire to board connection, this terminal block header is a versatile solution for your electronic projects.
