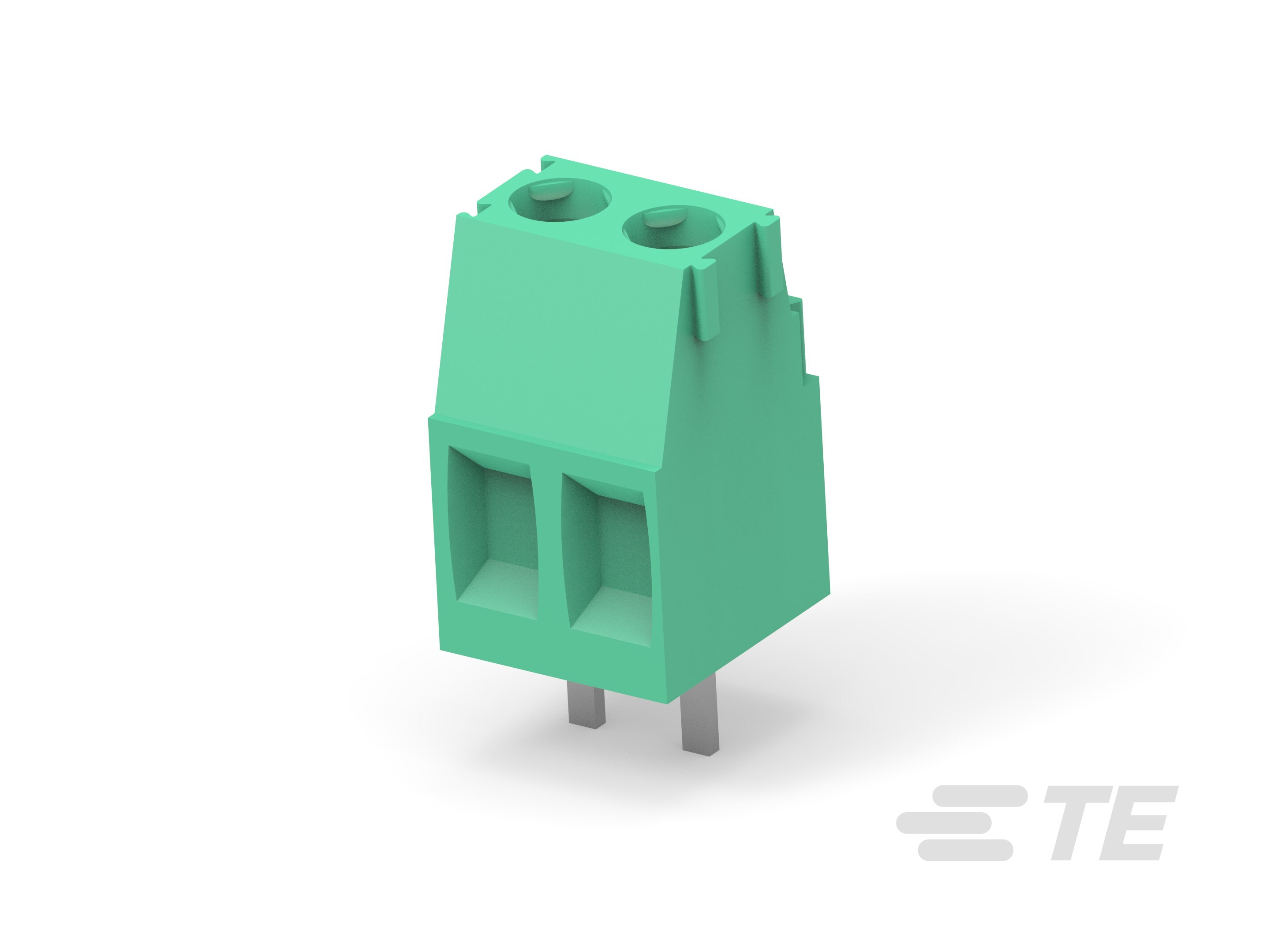

284392-2

AMP284392-2
Heilind Number:AMP284392-2
Manufacturer:TE Connectivity
Manufacturer Number:284392-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

TERMI-BLOK PCB SIDE ENTRY STAC

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284392-2
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:2
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:300
Contact Amperage:12 A
Number of Positions:2
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284392-2
SKU:AMP284392-2

Detailed Description

Introducing the TERMI-BLOK PCB SIDE ENTRY STAC, a versatile solution for your connectivity needs. This header features a sleek design with a straight mount angle, perfect for board mounting. Crafted from durable PA 6/6 housing material in a vibrant green color, it offers reliable performance in industrial settings. With two contacts and a pitch of 3.81 mm, it ensures efficient power and signal transmission. Operating temperature ranges from -40 to 110°C, making it suitable for a variety of environments. Its wave solder capability and lead-free solder processes ensure easy installation. RoHS compliant and with a voltage rating of 300 V AC, this header prioritizes safety and environmental responsibility. Perfect for wire-to-board connections, it accommodates wire sizes from 0.05 to 2 mm². Whether for power or signal applications, the TERMI-BLOK PCB SIDE ENTRY STAC is a dependable choice for your projects.
