284392-4

AMP284392-4
Heilind Number:AMP284392-4
Manufacturer:TE Connectivity
Manufacturer Number:284392-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

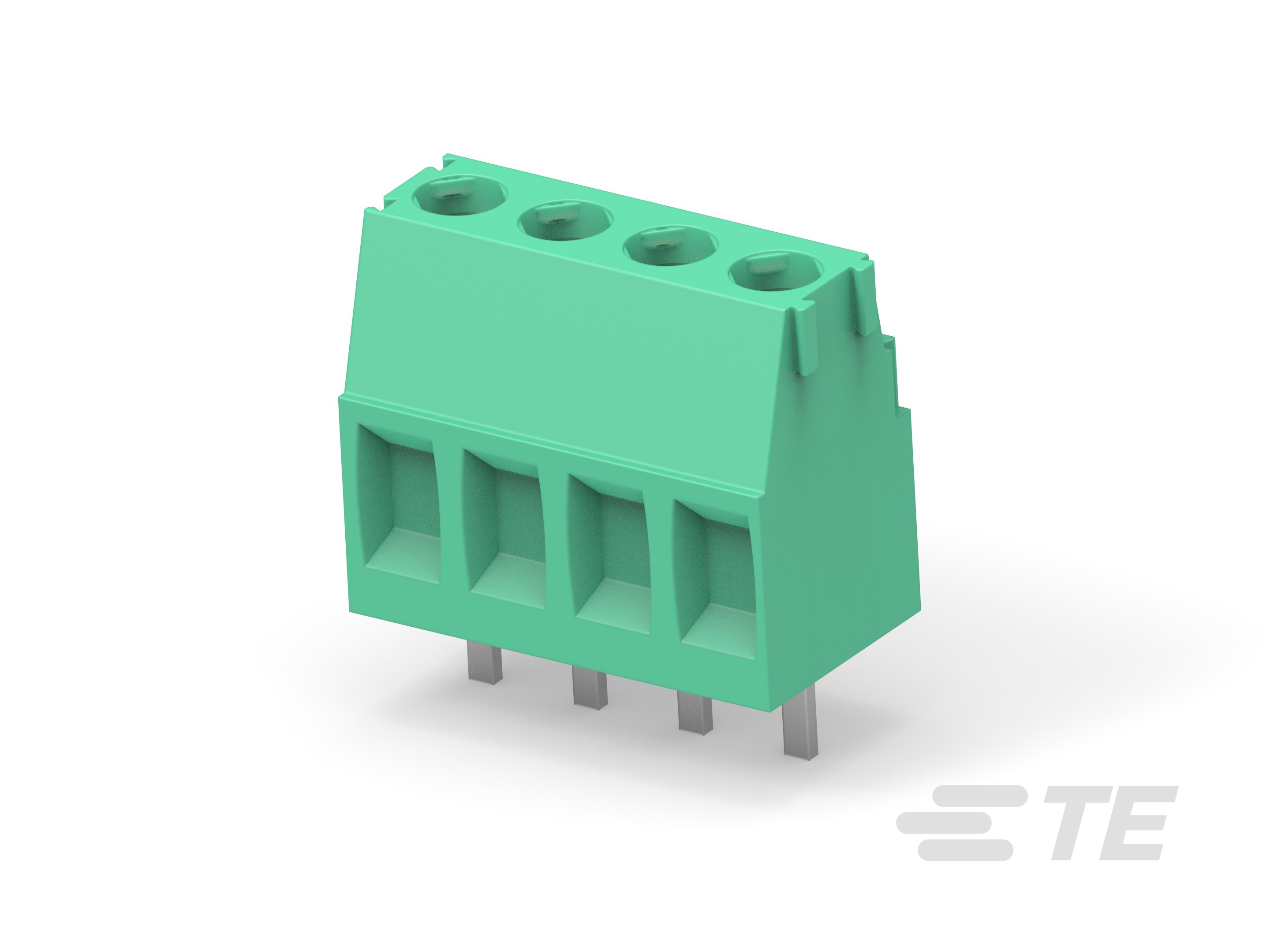

TERMI-BLOK PCB SIDE ENTRY STAC

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284392-4
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:4
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Contact Amperage:12 A
Number of Positions:4
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284392-4
SKU:AMP284392-4

Detailed Description

Introducing the TERMI-BLOK PCB SIDE ENTRY STAC, a streamlined solution for your connectivity needs. This single-row header features a durable PA 6/6 housing in a vibrant green hue, offering reliable performance in a range of settings. With four contacts, each made of robust brass with tin plating, it ensures secure power and signal transmission. Its straight mount angle and through-hole design make installation a breeze, while its industrial lead-free solder process compatibility and RoHS compliance guarantee environmental responsibility. Perfect for wire-to-board applications, this terminal block header is a versatile and essential component for your electronic projects.
