284392-5

AMP284392-5
Heilind Number:AMP284392-5
Manufacturer:TE Connectivity
Manufacturer Number:284392-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

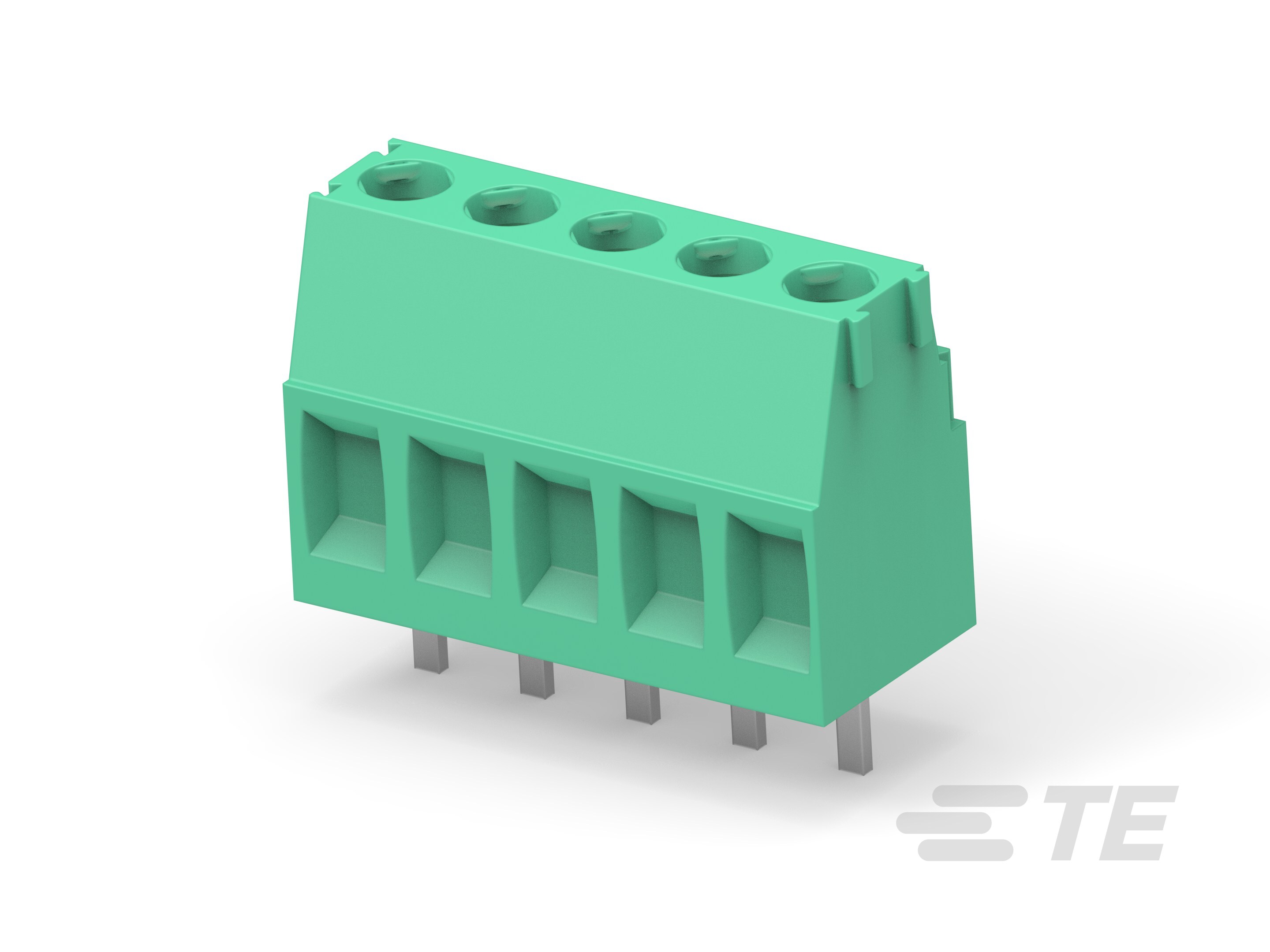

TERMI-BLOK PCB SIDE ENTRY STAC

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284392-5
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:5
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:150
Contact Amperage:12 A
Number of Positions:5
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284392-5
SKU:AMP284392-5

Detailed Description

Introducing our TERMI-BLOK PCB Side Entry Stacking Header, designed for seamless board mounting in electronic applications. With a 3.81mm pitch and 5 contacts in a single row, this header offers efficient power and signal connectivity. The housing, made of durable PA 6/6 in a vibrant green color, ensures reliability in industrial settings. Featuring tin-plated brass contacts, it can handle up to 12A of current at 300V AC, ideal for various circuit applications. With a straight mount angle and side entry, installation is convenient and space-saving. This header is RoHS compliant, making it an environmentally friendly choice for your projects. Each package contains 150 units, perfect for bulk installations. Elevate your connectivity solutions with our TERMI-BLOK PCB Side Entry Stacking Header.
