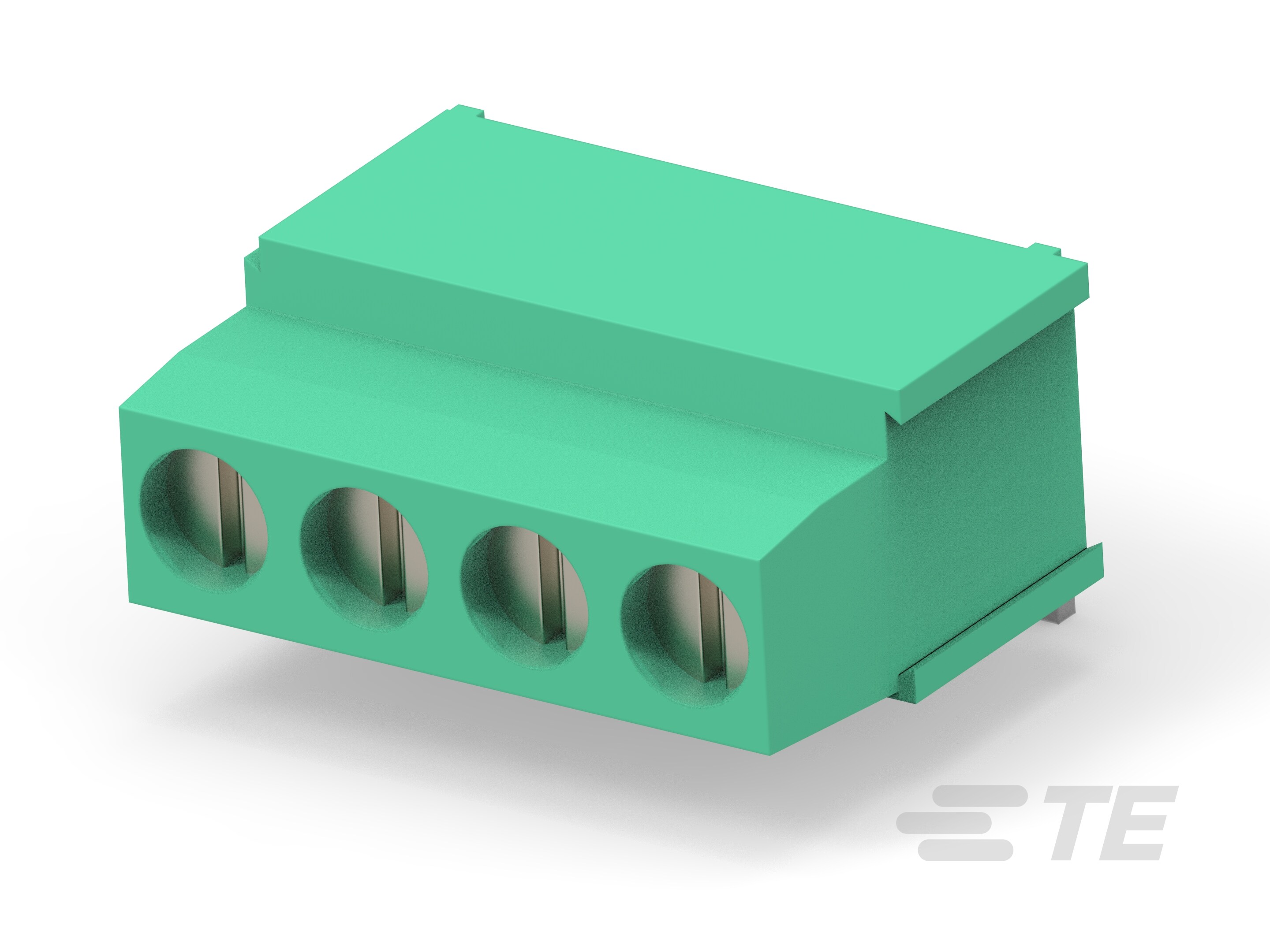

284410-4

Heilind Number:	AMP284410-4
Manufacturer:	TE Connectivity
Manufacturer Number:	284410-4
Datasheet:	3D Drawing
ECAD Model:

Description:

TERMI-BLOK 2700 PCB 4 POS. 5 m

More >>

Specifications

Attribute	Value
Product Category:	Connectors Terminal Blocks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 284410-4
Amperage:	17.5 A
Gender:	Header
Housing Material:	PA 6/6
Number of Rows:	1
Mount Type:	Board Mount
Contact Material:	Brass
Pitch:	.197 in, 5 mm
Voltage:	300 V AC
Mount Angle:	270°
Block Type:	PCB Mount
Screw Size:	M3
Package Quantity:	150
Contact Amperage:	17.5 A
Number of Positions:	4
Housing Color:	Green
GPL:	124
Tail Length:	.098 in, 2.5 mm
Packaging:	Box
Operating Temperature Range:	-40 - 105 °C, -40 - 221 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	7742
Wire Size:	.05 - 3 mm², 12 - 30 AWG
Connector System:	Wire to Board
Screw Material:	Brass
Header Type:	Shrouded
Screw Plating:	Nickel
Entry Angle:	Bottom
Interlock:	With
Closed End:	With
Stacked Levels:	Without
Threaded Flange:	Without
Contact Mount Style:	Through Hole
Mating Angle:	270°
Screw Flange:	Without
Screwless Terminal Block:	No
Wire Protection:	With
Part Aliases:	284410-4
SKU:	AMP284410-4

Detailed Description

Easily connect power and signal wires with our TERMI-BLOK 2700 PCB 4 Position Terminal Block. Designed for efficient board mounting, this connector features a 270° mount angle and a durable PA 6/6 housing in a vibrant green color. With brass contacts plated in tin, it offers reliable conductivity for wire sizes ranging from 12 to 30 AWG. Operating in temperatures from -40 to 105°C, this RoHS-compliant connector is ideal for industrial applications. Each package contains 150 units, making it convenient for bulk installations. Trust in its 17.5A amperage and 300V AC voltage rating for secure power transmission in your projects.
