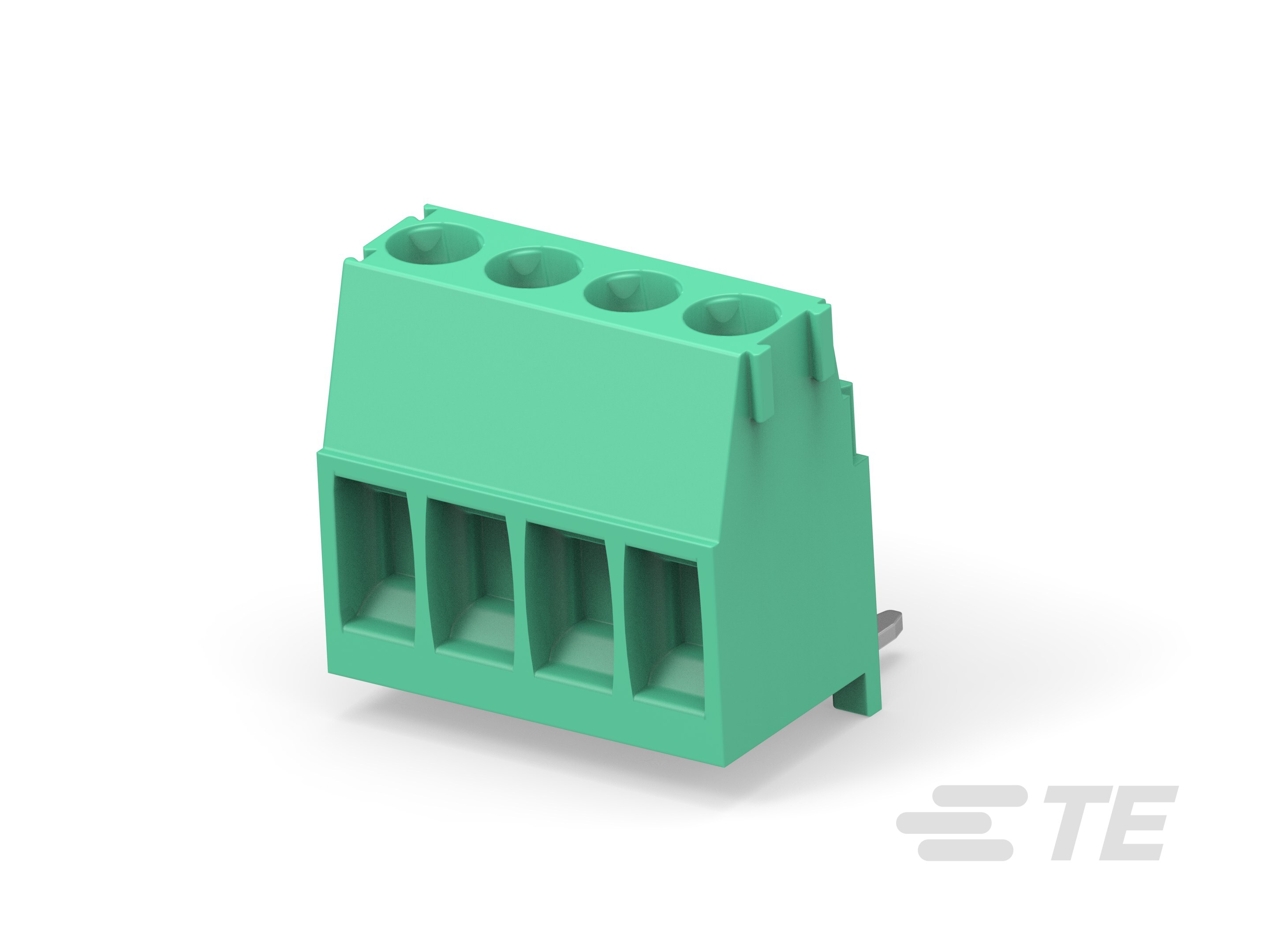

284414-9

AMP284414-9
Heilind Number:AMP284414-9
Manufacturer:TE Connectivity
Manufacturer Number:284414-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

TERMI-BLOK 900 PCB 9 POS 3,5 m

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284414-9
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking w/interlock
Screw Size:M2
Package Quantity:100
Contact Amperage:12 A
Number of Positions:9
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Top
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284414-9
SKU:AMP284414-9

Detailed Description

Enhance your PCB connections with the TERMI-BLOK 900, a 9-position header featuring a 3.5mm pitch. Designed for efficient power and signal transmission, this industrial-grade connector boasts a durable PA 6/6 housing in a vibrant green color. With a right-angle mount and stacking capability, it offers flexibility in board installations. The brass contacts with tin plating ensure reliable conductivity, accommodating wire sizes ranging from 12 to 30 AWG. Operating in a wide temperature range from -40 to 110°C, this connector is suitable for various environments. RoHS compliant and with a package quantity of 100, it's ideal for bulk applications in electronics assembly. Elevate your connectivity solutions with this high-performance TERMI-BLOK 900 header.
