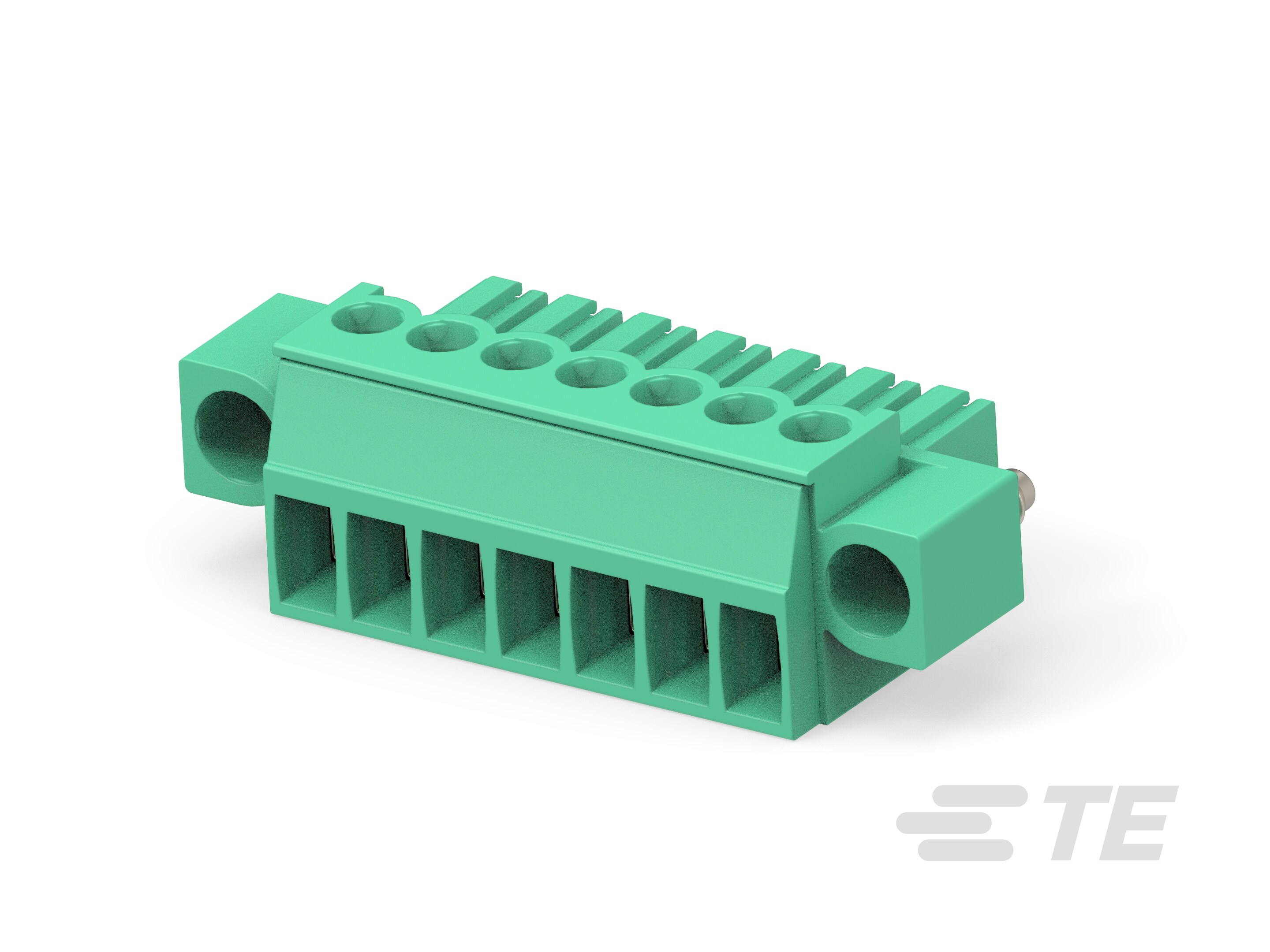

284510-7

AMP284510-7
Heilind Number:AMP284510-7
Manufacturer:TE Connectivity
Manufacturer Number:284510-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

7P TERMI-BLOK PLUG CON VITI

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284510-7
Amperage:11 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:7
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M2
Package Quantity:100
Contact Amperage:11 A
Number of Positions:7
Housing Color:Green
GPL:124
Packaging:Carton
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Screw Flange:With
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284510-7
SKU:AMP284510-7

Detailed Description

Ensure secure power and signal connections with our 7-position Stacking Plug Terminal Block Header. Designed for industrial applications, this green PA 6/6 housing features a right-angle mount angle for convenient installation. With a contact amperage of 11 A and a voltage rating of 300 V AC, it guarantees reliable performance. The Phosphor Bronze contacts with tin plating ensure optimal conductivity, while the wire-to-board termination allows for easy setup. Operating in a wide temperature range from -40 to 105 °C, it's suitable for various environments. RoHS compliant and packaged in quantities of 100, this terminal block header is a must-have for your connectivity needs.
