284511-2

AMP284511-2
Heilind Number:AMP284511-2
Manufacturer:TE Connectivity
Manufacturer Number:284511-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

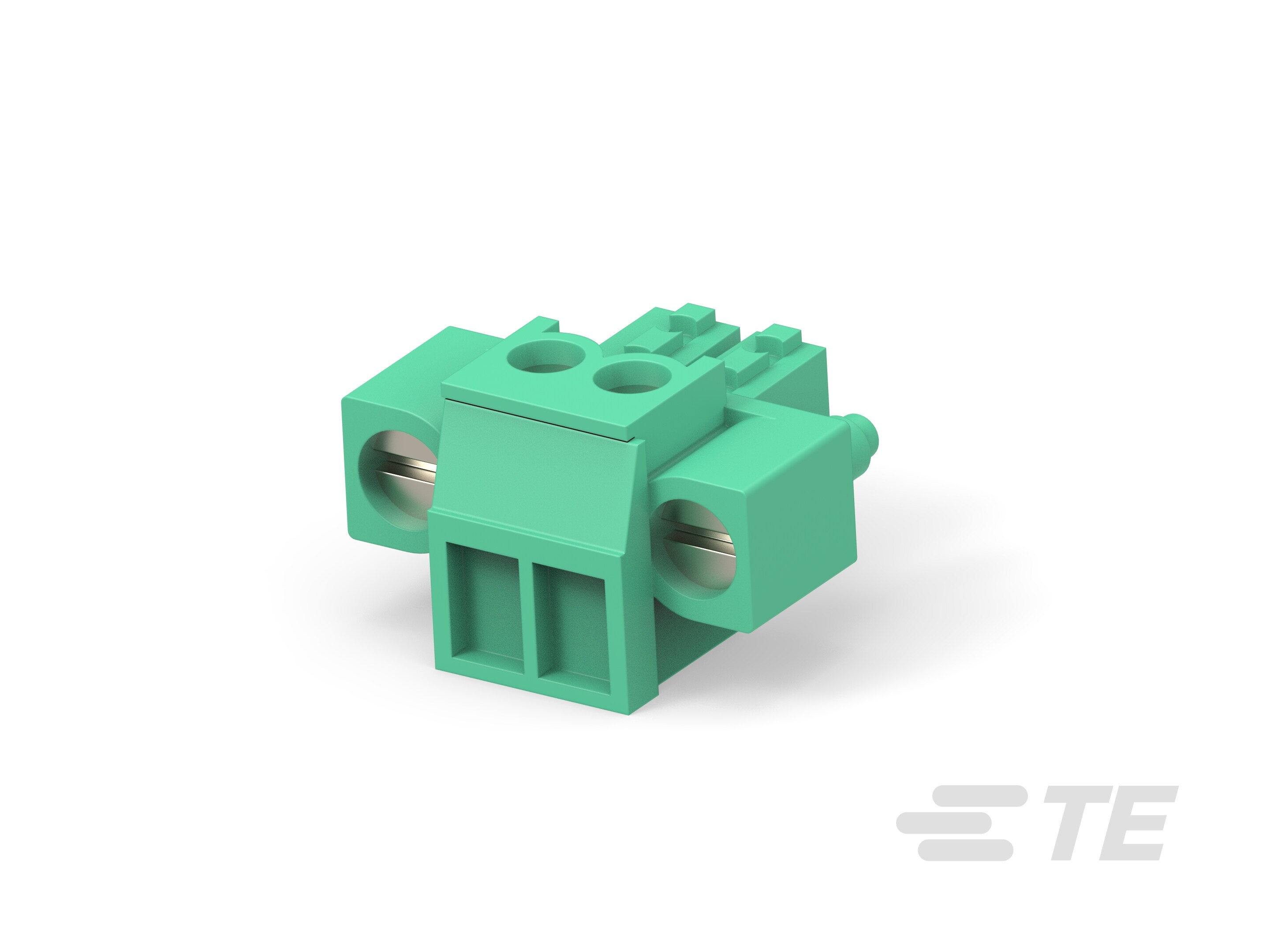

2 POS TERMI-BLOK PLUG C. VITI

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284511-2
Amperage:11 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:2
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:None
Screw Size:M2
Package Quantity:300
Contact Amperage:11 A
Number of Positions:2
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Threaded Flange:With
Screw Flange:With
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284511-2
SKU:AMP284511-2

Detailed Description

Power up your connections with this industrial-grade terminal block header, featuring a right-angle mount for convenient installation. With a green housing and nickel-plated screws, it offers durable performance in demanding environments. Suitable for wire sizes ranging from .05 to 2mm², it accommodates a variety of applications. RoHS compliant and lead-free solder capable, this connector ensures environmental responsibility without compromising on quality. Whether for power or signal transmission, trust in its 11A amperage and 300V AC voltage rating. Elevate your connectivity with this reliable solution.
