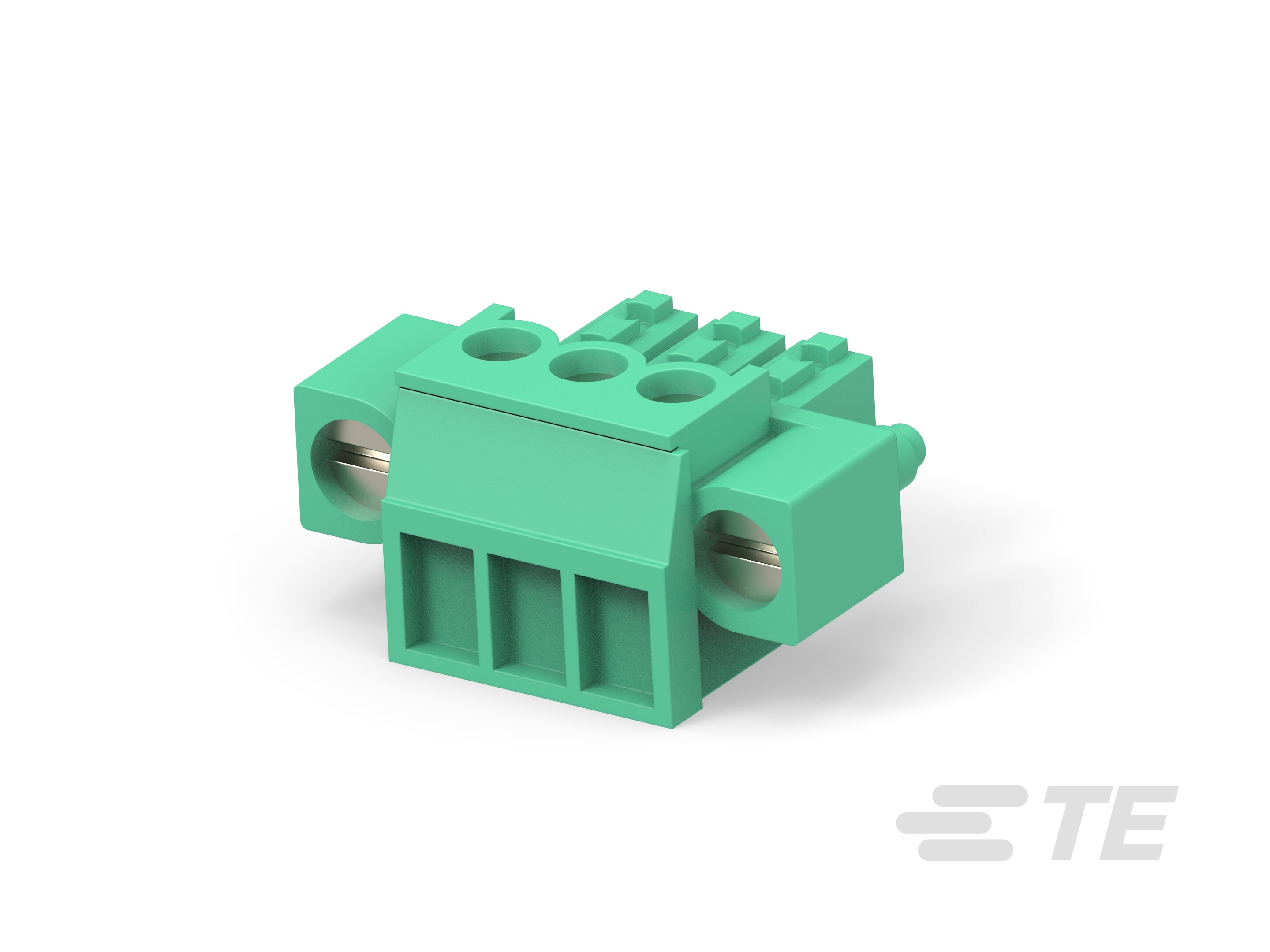

284511-3

AMP284511-3
Heilind Number:AMP284511-3
Manufacturer:TE Connectivity
Manufacturer Number:284511-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

3 POS TERMI-BLOK PLUG C. VITI

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284511-3
Amperage:11 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:None
Screw Size:M2
Package Quantity:200
Contact Amperage:11 A
Number of Positions:3
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Threaded Flange:With
Screw Flange:With
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284511-3
SKU:AMP284511-3

Detailed Description

Power up your connections with this robust pluggable terminal block header. Featuring a durable PA 6/6 housing in a vibrant green color, this connector ensures reliable performance in industrial settings. With three contacts, 11A amperage, and a voltage rating of 300V AC, it's suitable for power and signal applications. The right-angle mount and side entry angle offer flexibility in installation, while the nickel-plated brass screws guarantee secure connections. RoHS compliant and suitable for wire sizes ranging from 14-30 AWG, this terminal block header is a dependable choice for your wiring needs. With a package quantity of 200, stock up on this essential component for your projects.
