284513-7

AMP284513-7
Heilind Number:AMP284513-7
Manufacturer:TE Connectivity
Manufacturer Number:284513-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

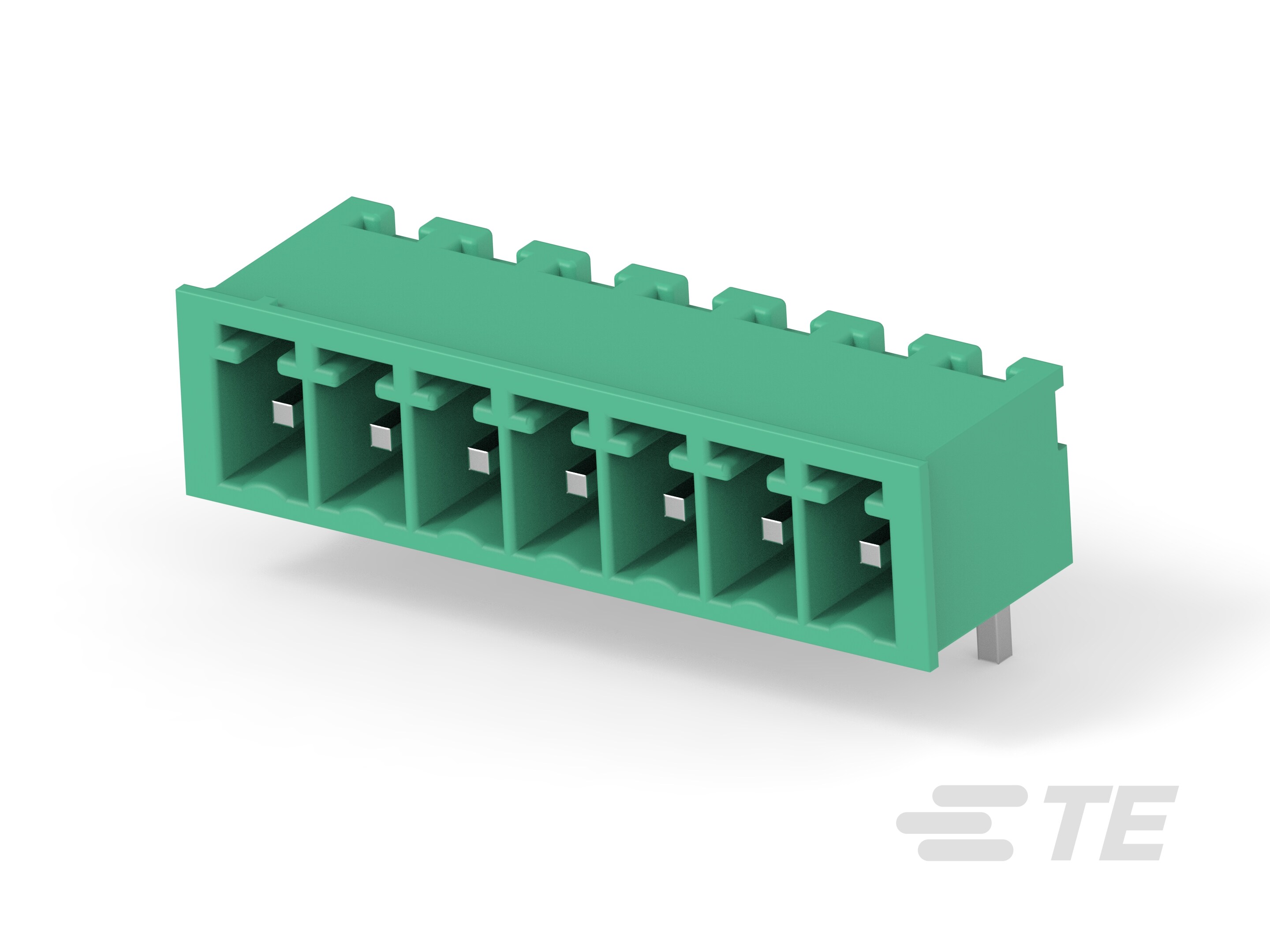

7 POS TERMI-BLOK HDR 900 POL.

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284513-7
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:100
Contact Amperage:11 A
Number of Positions:7
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284513-7
SKU:AMP284513-7

Detailed Description

Enhance your board assembly with our 7-position right angle header connector, designed for efficient power and signal transmission in industrial settings. With a durable PA 6/6 housing in a vibrant green color, this connector ensures reliable performance even in harsh operating conditions, with an impressive amperage rating of 11 A. Each contact features phosphor bronze construction and tin plating for optimal conductivity, while the 3.81 mm pitch allows for easy integration into your PCB layout. The closed-end design adds extra protection, and with RoHS compliance, you can trust in the environmental responsibility of this component. Whether you're working with 14-30 AWG wire, this wire-to-board connector is the perfect choice for your application. Upgrade your connectivity solution today.
