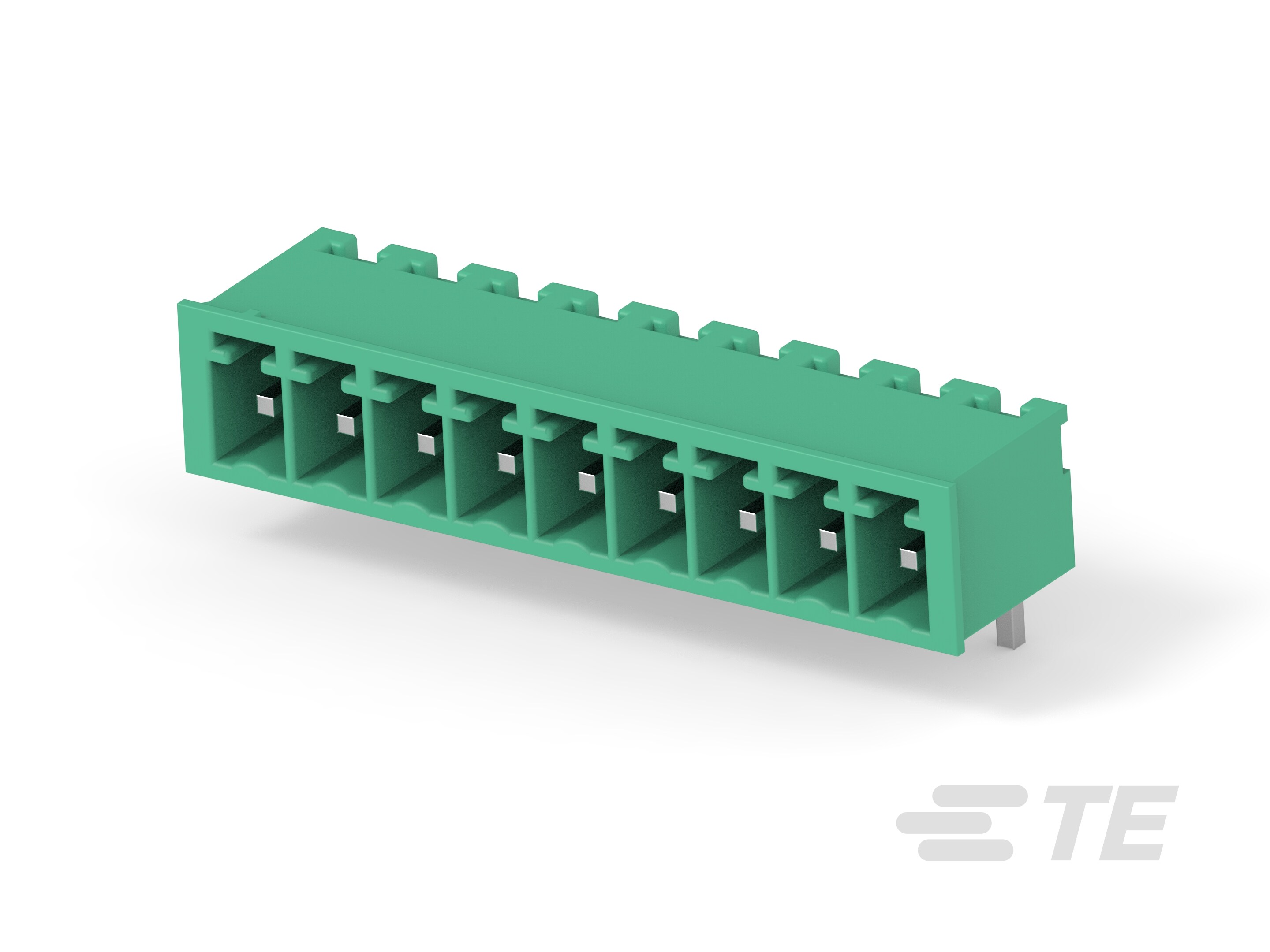

284513-9

AMP284513-9
Heilind Number:AMP284513-9
Manufacturer:TE Connectivity
Manufacturer Number:284513-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

9 POS TERMI-BLOK HDR 900 POL.

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284513-9
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Contact Amperage:11 A
Number of Positions:9
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284513-9
SKU:AMP284513-9

Detailed Description

Elevate your power and signal connections with our industrial-grade 9-position PCB mount terminal block. Designed for seamless board integration, this header boasts a 3.81mm pitch and 11A contact amperage, ensuring reliable performance in diverse applications. Its right-angle mount angle and shrouded header type offer versatility, while the durable PA 6/6 housing in vibrant green guarantees longevity. With operating temperatures ranging from -40 to 105°C (-40 to 221°F) and compliance with RoHS standards, it's a dependable choice for your electronic projects. Experience the convenience of wire-to-board connectivity at its finest.
