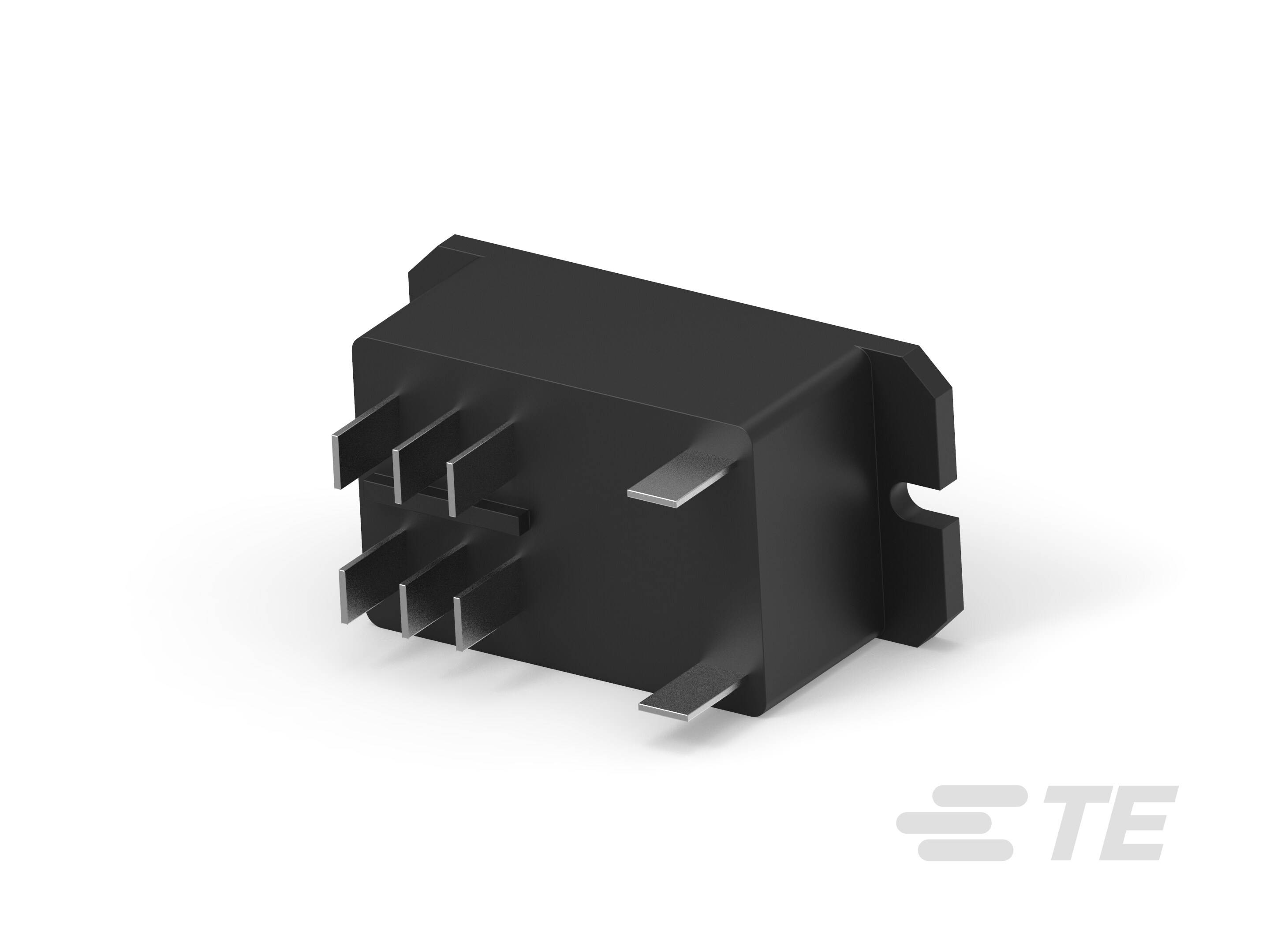

3-1393211-9

AMP3_1393211_9
Heilind Number:AMP3-1393211-9
Manufacturer:TE Connectivity
Manufacturer Number:3-1393211-9
Datasheet:Agency Approval Document (CQC)
ECAD Model:
3D Model

Description:

T92P11A22-12

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 3-1393211-9
Amperage:30 A
Mount Type:Panel Mount
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Plating:Silver Cadmium Oxide (AgCdO)
Number of Poles:2
Coil Resistance:9.1 Ω
Coil Current:.333 A
Coil Voltage:12 VAC
Output Type:AC
Maximum Output Voltage:600 V
Maximum Switching Voltage:600 VAC
Contact Voltage:277 VAC
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Contact Arrangement:2 Form C, DPDT
Input Voltage:0 - 12 VAC
SKU:AMP3-1393211-9

Detailed Description

Enhance your power relay system with the high-performance T92P11A22-12 model. Designed for efficient panel mounting, this relay features two poles with silver cadmium oxide contacts for reliable conductivity. With a 30A amperage capacity and a coil voltage of 12VAC, it ensures seamless operation in various applications. Its double-pole, double-throw configuration (2 Form C, DPDT) allows for versatile control, while meeting stringent RoHS compliance standards. Operating smoothly in temperatures ranging from -55°C to 85°C (-67°F to 185°F), it guarantees durability and performance even in harsh environments. Ideal for HVAC and other power relay setups, this component offers a maximum switching voltage of 600VAC, making it a dependable choice for your industrial needs.
