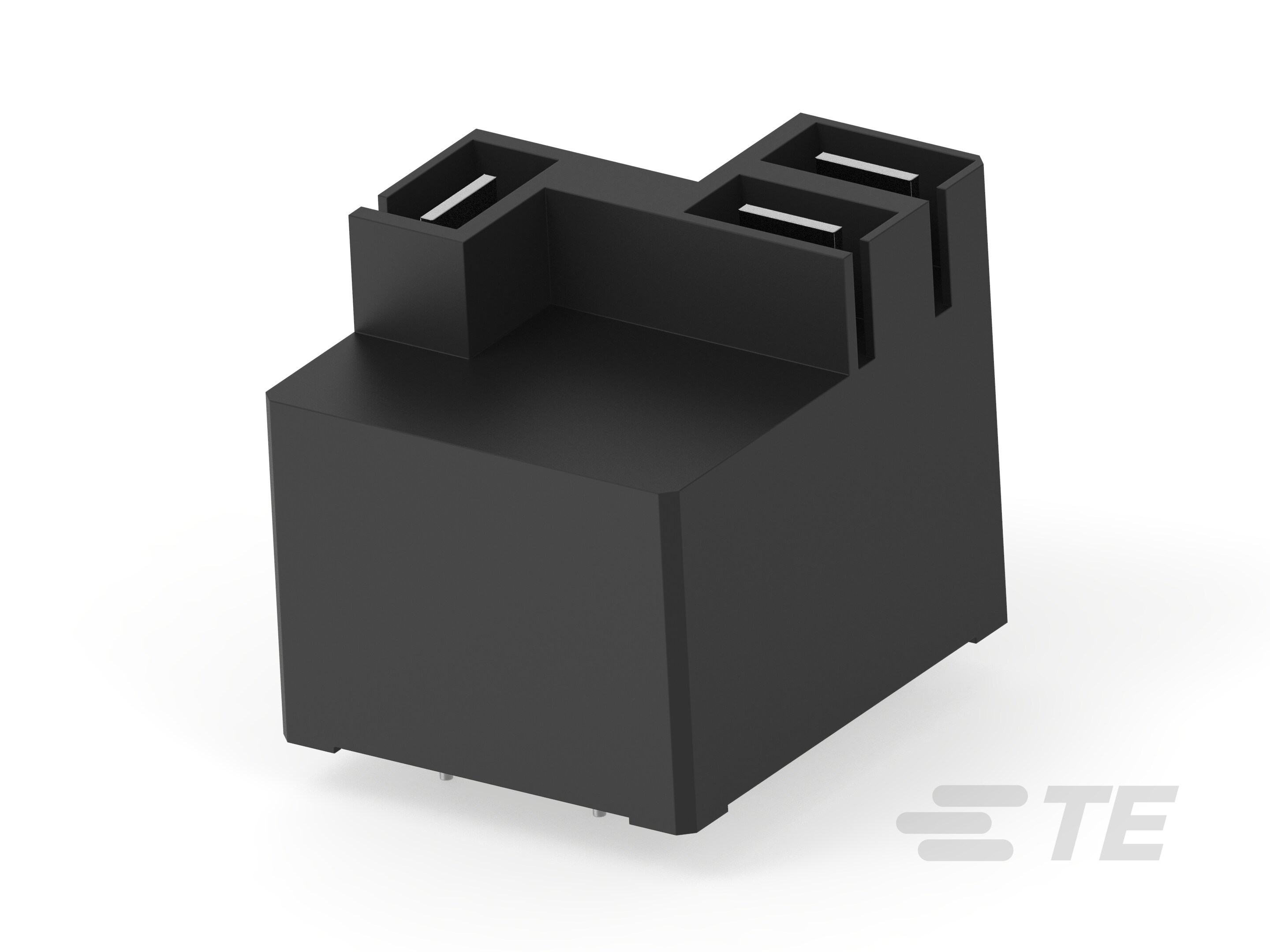

3-1419104-4

AMP3-1419104-4
Heilind Number:AMP3-1419104-4
Manufacturer:TE Connectivity
Manufacturer Number:3-1419104-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

T9AS5D22-18

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 3-1419104-4
Amperage:20 A
Mount Type:Printed Circuit Board
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Plating:Silver Cadmium Oxide (AgCdO)
Number of Poles:1
Coil Resistance:324 Ω
Coil Current:.056 A
Coil Voltage:18 VDC
Output Type:AC
Maximum Output Voltage:240 V
Maximum Switching Voltage:277 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:277 VAC
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Contact Arrangement:1 Form C (CO)
SKU:AMP3-1419104-4

Detailed Description

Easily manage power distribution with the T9AS5D22-18 relay. Designed for efficient performance, this relay has a 20A amperage capacity and operates on a 18VDC coil voltage. Featuring a Printed Circuit Board mount type and Silver Cadmium Oxide contacts, it ensures reliable conductivity. With a 1 Form C contact arrangement, it offers versatility in switching applications. The RoHS-compliant design and wide operating temperature range make it suitable for various environments. Trust this AC output relay for seamless power control in your electronic systems.
