3-1534799-3

AMP3-1534799-3
Heilind Number:AMP3-1534799-3
Manufacturer:TE Connectivity
Manufacturer Number:3-1534799-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

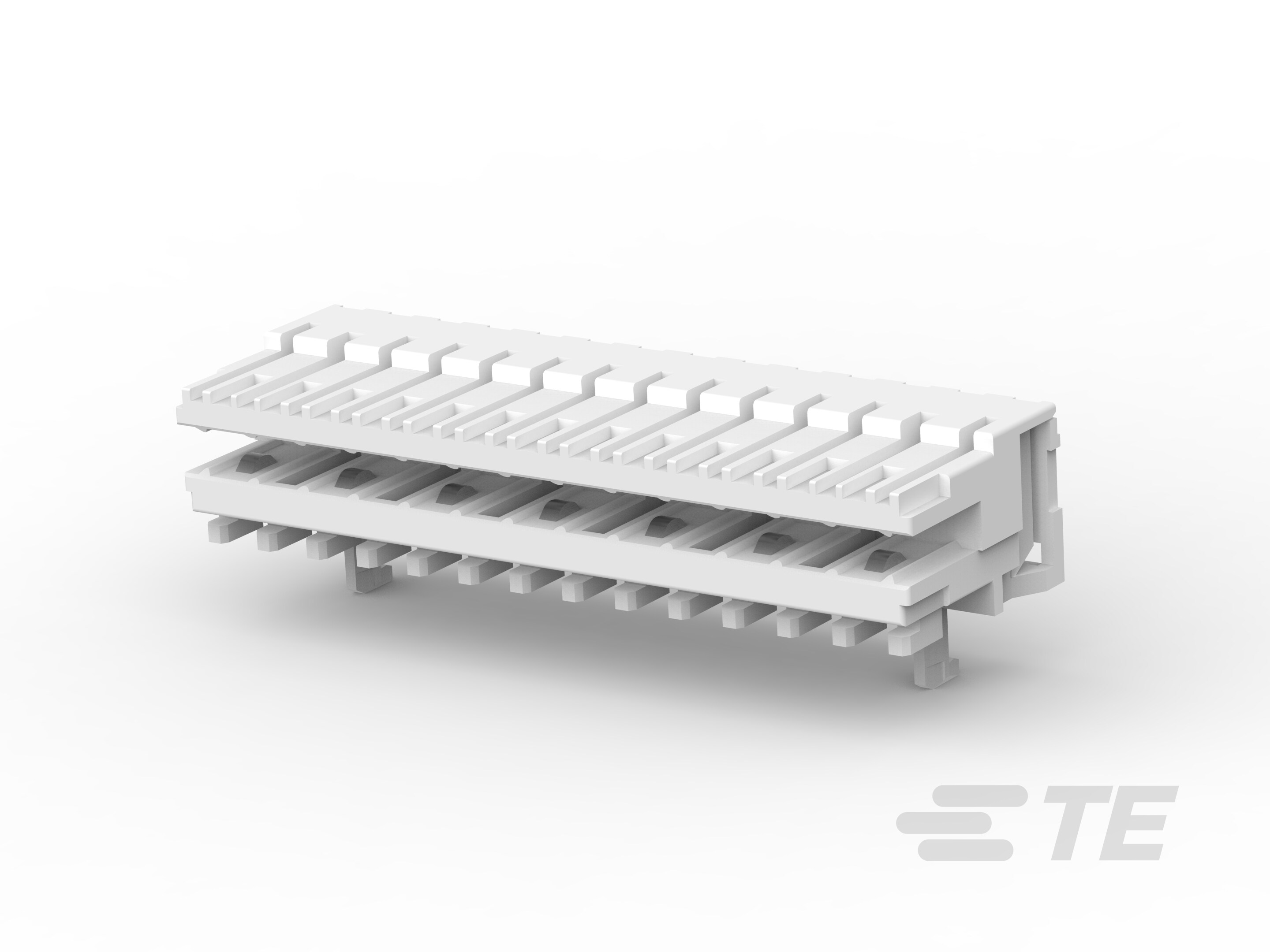

AMP DUOPLUG MARK II CONNEC.SELEC.LOADED

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Card Edge Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 3-1534799-3
Amperage:2 A
Housing Material:PA 6 GF
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Insulation Displacement Crimp (IDC)
Contact Material:Copper Tin
Pitch:.098 in, 2.5 mm
Voltage:250 V
Contact Type:Socket
Package Quantity:4312
Number of Positions:13
Housing Color:Natural
Mount Orientation:Right Angle
GPL:405
Profile:Standard
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Signal
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:3 - 6 µm
Panel Mount:Without
PCB Retention:Without
PCB Contact Termination Area Plating:Tin
PCB Thickness (Recommended):.059 in, 1.5 mm
Connector Height:.287 in, 7.3 mm
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K358
Wire Size:22 - 24 AWG, .22 - .35 mm²
Connector System:Wire to Board
ECCN:EAR99
Connector Contact Load Condition:Selectively Loaded
Mating Retention:Without
PCB Mount Alignment:With
Position Locations Omitted:6
Card Entry Location:Side
Accepts Wire Insulation Diameter:.047 - .055 in, 1.2 - 1.4 mm
Housing Configuration:Both Ends Opened
Contact Retention:With
Compatible Wire / Cable Type:Discrete Wire
Contact Retention Type in Housing:Locking Lance
Card Slot Depth:5.05 mm
Connector and Housing Type:Receptacle
Material Flammability Standard:UL 94V-2
Part Aliases:3-1534799-3
SKU:AMP3-1534799-3

Detailed Description

Enhance your connectivity with the AMP DUOPLUG MARK II CONNECTOR, designed for seamless signal transmission in electronic devices. This loaded connector features a single row design with 13 positions, allowing for efficient cable mounting with Insulation Displacement Crimp termination. Crafted with durable PA 6 GF housing material and Copper Tin contacts, it ensures reliable performance in a wide operating temperature range. With a 2A amperage rating and 250V voltage capacity, it's suitable for various applications in appliances and more. The natural housing color and compact profile make it versatile for different setups, while the UL 94V-2 flammability standard compliance guarantees safety. Ideal for wire-to-board connections, this connector is RoHS compliant and offers easy installation with a Box packaging format. Elevate your circuitry with this high-quality connector for seamless and secure board-to-board connections.
