796949-3

AMP796949-3
Heilind Number:AMP796949-3
Manufacturer:TE Connectivity
Manufacturer Number:796949-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

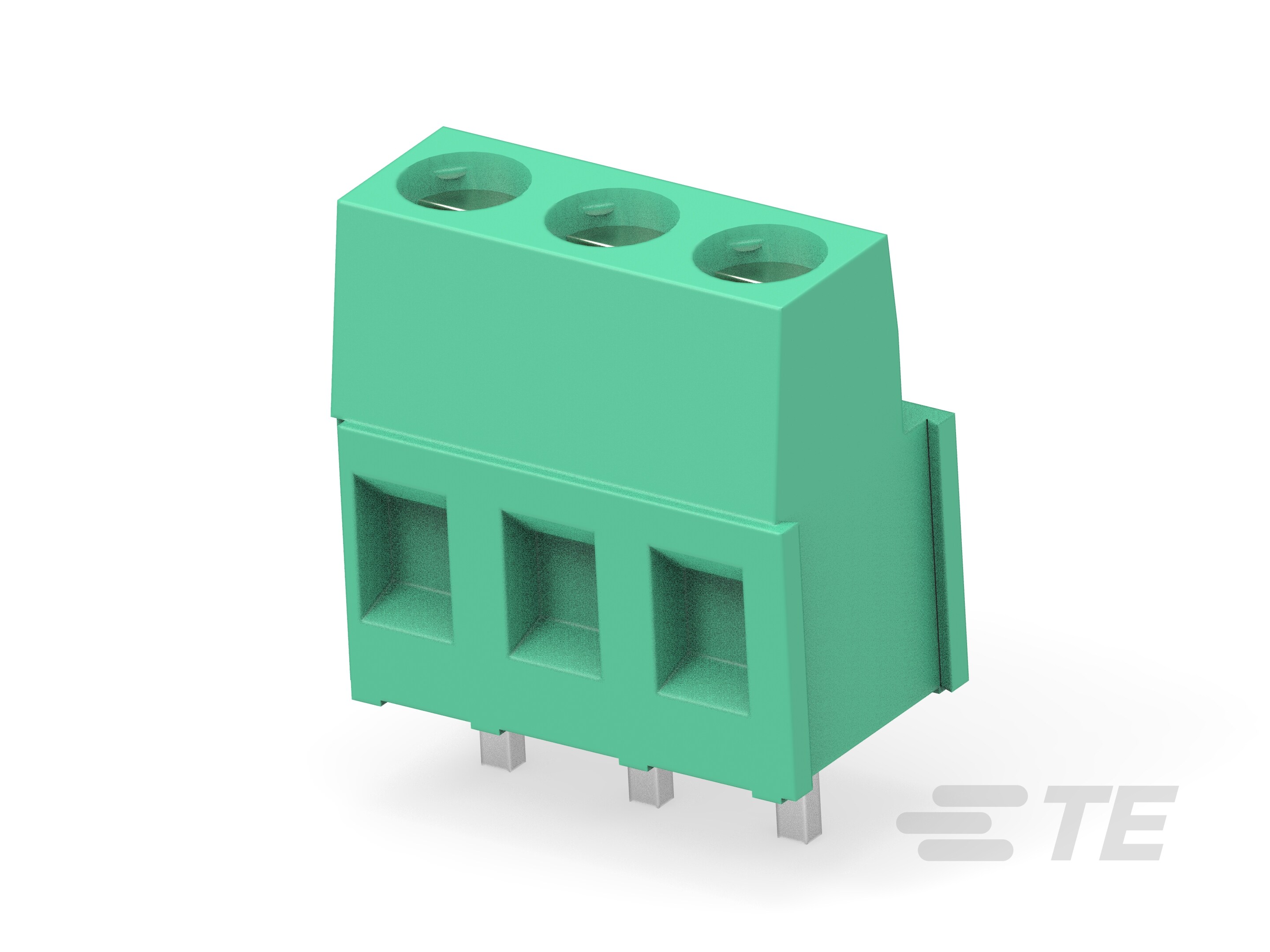

3 POS TERMI-BLOK PCB MOUNT

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 796949-3
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:200
Contact Amperage:17.5 A
Number of Positions:3
Housing Color:Black
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Marking Color:White
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:796949-3
SKU:AMP796949-3

Detailed Description

Enhance your power and signal connectivity with our 3-position terminal block header. Designed for board mount installation, this header features a durable PA 6/6 housing in sleek black, with brass contacts for reliable performance. With a 5.08mm pitch and a maximum voltage of 300V AC, it ensures secure and efficient connections. Operating in a wide temperature range from -40 to 110°C, it's suitable for industrial applications. Wave solder capable and RoHS compliant, this header is an environmentally friendly choice. Its side stackable design with an interlock feature offers versatility in assembly. Ideal for wire-to-board connections, it accommodates 12-30 AWG wire sizes. With 200 pieces in a box, it's convenient for large-scale projects. Upgrade your connectivity solutions with this high-quality terminal block header.
