282841-3

AMP282841-3
Heilind Number:AMP282841-3
Manufacturer:TE Connectivity
Manufacturer Number:282841-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

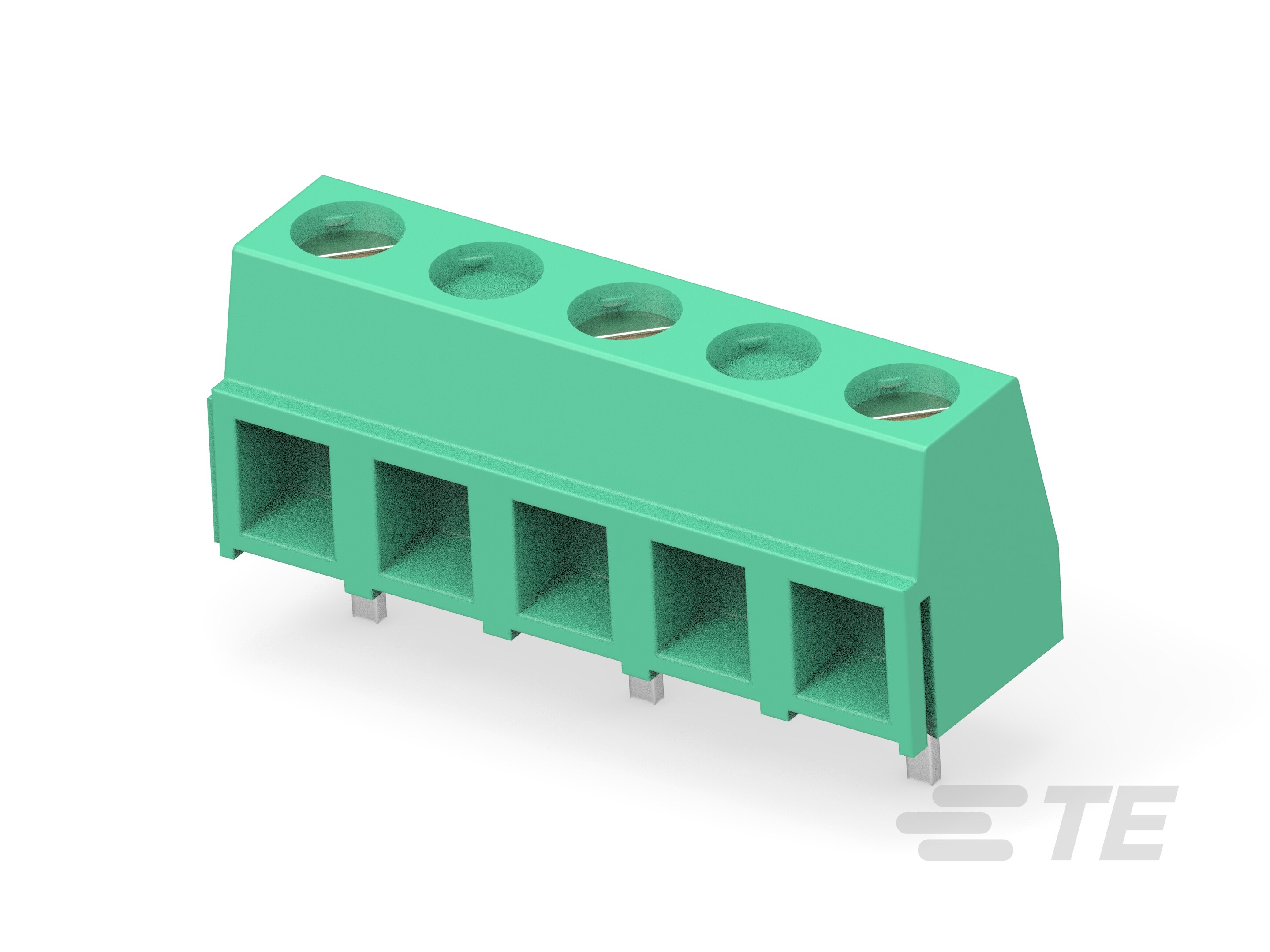

TERMI-BLOK PCB MOUNT 3P. 5

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282841-3
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:200
Contact Amperage:17.5 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Carton
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282841-3
SKU:AMP282841-3

Detailed Description

Introducing the TERMI-BLOK PCB MOUNT 3P, a versatile solution for power and signal connections. This single-row header features three contacts, ideal for various applications. With a current rating of 17.5A and a voltage of 300V AC, it ensures reliable performance. The housing, made of durable PA 6/6 in a vibrant green color, offers robust protection. With a pitch of 5.08mm (.2 in) and through-hole mount type, it provides easy installation on the board. The brass contacts with tin plating guarantee excellent conductivity. Operating in a wide temperature range from -40 to 110°C (-40 to 230°F), this terminal block is suitable for industrial environments. RoHS compliant and lead-free solder capable, it meets environmental standards. Whether for power distribution or signal transmission, the TERMI-BLOK PCB MOUNT 3P is a dependable choice for your connectivity needs.
