| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose GT17-2022SCF |
| Gender: | Female |
| Wire Size: | 22 - 20 AWG |
| Contact Size: | 1.45 x 14.35 x 2.1 mm |
| Current Rating: | 3 A |
| Voltage Rating: | 250 VAC |
| Contact Plating: | Tin |
| Contact Resistance: | 30 mΩ |
| Contact Insert Type: | Socket |
| Contact Termination: | Crimp |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -30 °C |
| Series: | GT17 |
| SKU: | HIRGT17-2022SCF |

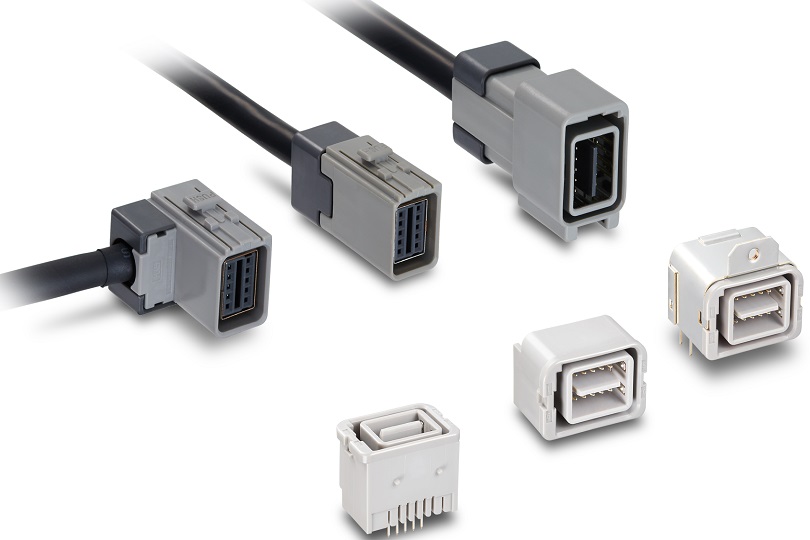

GT17-2022SCF
| Heilind Number: | HIRGT17-2022SCF |
| Manufacturer: | Hirose |
| Manufacturer Number: | GT17-2022SCF |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the GT17-2022SCF, a high-performance socket contact designed for superior connectivity in demanding environments. Part of the GT17 series, this contact features a durable tin plating that ensures reliable operation even in extreme conditions, with a wide operating temperature range from -30°C to 105°C. Its compact 1.45 x 14.35 x 2.1 mm size and crimp termination make it easy to install, accommodating wire sizes from 22 to 20 AWG. With a low contact resistance of 30 mΩ, it provides efficient power transmission, while its 3 A current rating and 250 VAC voltage rating meet industry standards for performance. Fully RoHS compliant, the GT17-2022SCF is the ideal choice for connectors, pin, and socket housings, ensuring seamless connectivity in a wide range of applications.
