| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose HR10-10P-12S(73) |
| Series: | HR10 |
| Gender: | Female |
| Housing Material: | Metal |
| Number of Contacts: | 12 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size: | 10 |
| Mating Type: | Push-Pull |
| Mount Angle: | Straight |
| Shell Size - Insert Arrangement: | 10-12 |
| Mating Cycles: | 1000 cycle |
| Shell Finish: | Nickel |
| Current Rating: | 2 A |
| Voltage Rating: | 100 VAC |
| SKU: | HIRHR10-10P-12S(73) |

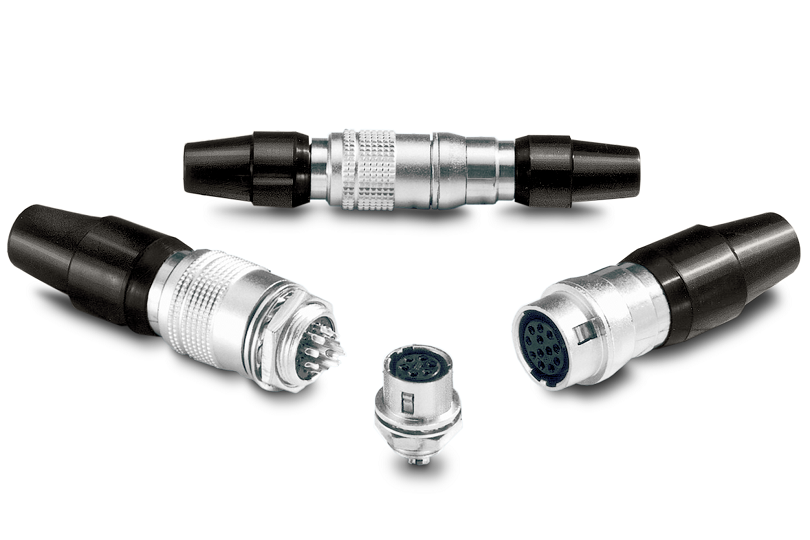

HR10-10P-12S(73)
.jpg)
| Heilind Number: | HIRHR10-10P-12S(73) |
| Manufacturer: | Hirose |
| Manufacturer Number: | HR10-10P-12S(73) |
| ECAD Model: | |
Specifications
Detailed Description
The HR10-10P-12S(73) connector, part of the HR10 series, is a high-performance female connector designed for reliable signal transmission in demanding environments. Featuring a durable metal housing and gold-plated contacts, it ensures optimal conductivity and corrosion resistance. With a panel mount and solder termination, installation is secure and straightforward. Operating efficiently in temperatures ranging from -25 °C to 85 °C, this connector is suitable for a wide range of applications. Its push-pull mating type and straight mount angle offer convenience in use. Meeting RoHS compliance standards, it guarantees environmental responsibility. With a current rating of 2 A and voltage rating of 100 VAC, it provides stable power delivery. The 10-12 shell size insert arrangement and nickel shell finish further enhance its performance and durability. Whether for industrial machinery, aerospace systems, or telecommunications equipment, the HR10-10P-12S(73) connector is a trusted solution for seamless connectivity.
