09322006118

HRT09322006118
Heilind Number:HRT09322006118
Manufacturer:HARTING
Manufacturer Number:09322006118
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

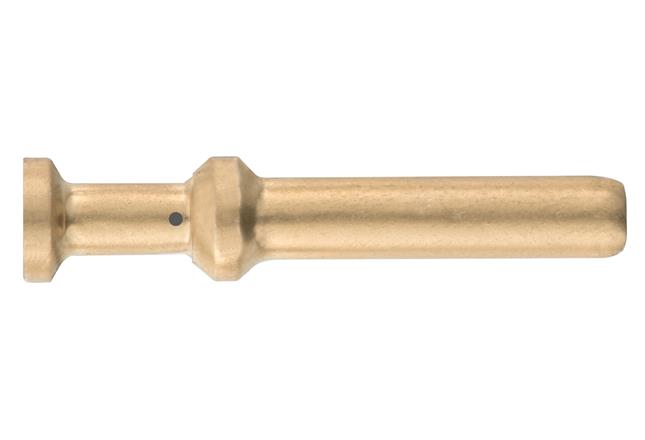

Han® C, HMC, Crimp contact; Operating current: ≤40A; Male; Copper alloy; HMC gold plated; Conductor cross-section: 6mm²; AWG 10

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09322006118
Series:Han® C HMC
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:1 mΩ
Mating Cycles:10000 cycle
Wire Size:10 AWG
Contact Design:Machined
Current Rating:40 A
Stripping Length:9.5 mm
SKU:HRT09322006118

Detailed Description

Introducing the Han® C HMC Crimp Contact, 09322006118, a high-performance male connector designed for industrial applications. Made of durable copper alloy with HMC gold plating, this contact ensures reliable conductivity. With a maximum operating current of 40A and a conductor cross-section of 6mm² (AWG 10), it is ideal for heavy-duty power transmission. The machined contact design guarantees a low contact resistance of 1 mΩ, while the crimp termination method offers easy and secure installation. RoHS compliant and capable of withstanding temperatures from -40°C to 125°C, this contact is built to last. Perfect for use in harsh environments, it has a mating cycle of 10,000 cycles, ensuring long-term durability. Stay connected with confidence with the Han® C HMC Crimp Contact.
