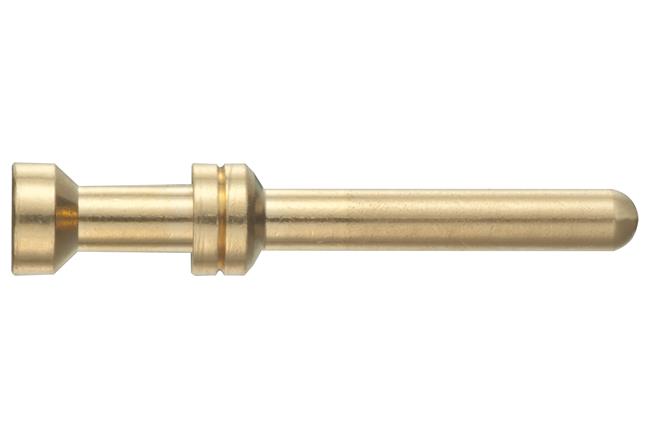

09330006115

Heilind Number:	HRT09330006115
Manufacturer:	HARTING
Manufacturer Number:	09330006115
Datasheet:	Datasheet
ECAD Model:

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

Attribute	Value
Product Category:	Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:	HARTING
Manufacturer Part Number:	HARTING 09330006115
Series:	Han E®
Gender:	Male
Termination Method:	Crimp
Contact Material:	Copper Alloy
Contact Plating:	Gold
Maximum Operating Temperature:	125 °C
Minimum Operating Temperature:	-40 °C
Contact Resistance:	1 mΩ
Mating Cycles:	500 cycle
Wire Size:	18 AWG
Contact Design:	Machined
Current Rating:	16 A
Stripping Length:	7.5 mm
SKU:	HRT09330006115

Detailed Description

The HARTING 09330006115 crimp contact is designed for reliable and efficient termination in Han E® connectors. Made from high-quality copper alloy with gold plating, it ensures excellent conductivity and corrosion resistance. This male contact is suitable for wire sizes up to 18 AWG, with a stripping length of 7.5mm. With a current rating of 16A and a low contact resistance of 1mΩ, it guarantees optimal performance in various applications. Its durable construction, capable of withstanding temperatures ranging from -40°C to 125°C, and 500 mating cycles, make it ideal for use in demanding environments. Fully RoHS compliant, this crimp contact offers a high level of reliability and compliance with environmental standards.
