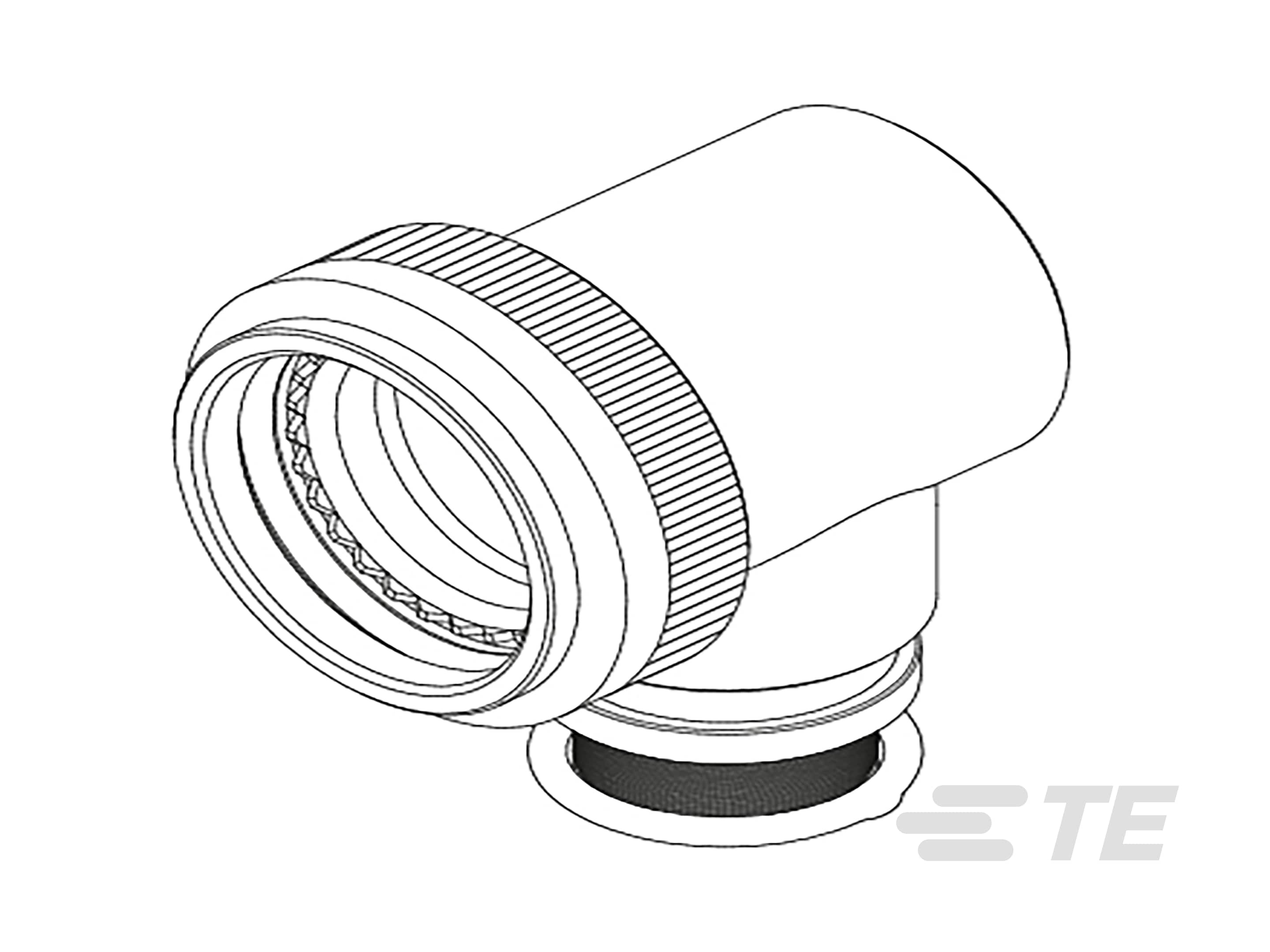

CV0183-000

RYCCV0183_000
Heilind Number:RYCCV0183-000
Manufacturer:TE Connectivity | Raychem
Manufacturer Number:CV0183-000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

TXR40AZ90-2420AI

More >>

Specifications

AttributeValue
Product Category:
Circular Connector Accessories & Components Circular Connector Backshells
Manufacturer:TE Connectivity | Raychem
Manufacturer Part Number:TE Connectivity | Raychem CV0183-000
Color:Black
Series:TXR
Body Orientation:Right Angle
Shell Size:25, J
Body Material:Aluminum
Cable Diameter:.12 - .5 in, 3.05 - 12.7 mm
Device Type:Side-Entry Tinel-Lock Ring, Tinel-Lock Ring
GPL:907
Operating Temperature Range:-65 - 175 °C, -85 - 347 °F
GPL Description:Aerospace Defense & Marine
Product Code:C417
Adapter Material:Zinc Nickel (ASTM B841) Chromate Chemical Conversion
Backshell Plating:Zinc Nickel
Cable Diameter Range:12.7 - 20.7 mm, .5 - .12 in
Adapter Angle:90°
Adapter Entry Size:20
Cable Entry Diameter:.01 - 1.25 in
Part Aliases:9-1899707-5,CV0183-000 TXR40AZ90-2420AI CV0183-000
SKU:RYCCV0183-000

Detailed Description

Enhance your aerospace, defense, and marine applications with the TXR40AZ90-2420AI Backshell in sleek black. Crafted from durable aluminum with a Zinc Nickel Chromate Chemical Conversion adapter, this accessory ensures reliable performance in harsh environments. With a 90° adapter angle and right-angle body orientation, it offers seamless connectivity for Side-Entry Tinel-Lock Ring devices. Its cable entry diameter of .01 - 1.25 inches accommodates a range of cable sizes, while the wide cable diameter range of .12 - .5 inches (3.05 - 12.7 mm) ensures versatility. Operating flawlessly in temperatures from -65 to 175°C (-85 to 347°F), this backshell is essential for secure and efficient cable management. Trust in its high-quality construction to meet your stringent requirements.
