180-M26-103L011

$TEX180_M26_103L011$

Heilind Number:	TEX180-M26-103L011
Manufacturer:	NorComp
Manufacturer Number:	180-M26-103L011
Datasheet:	Datasheet
ECAD Model:

Description:

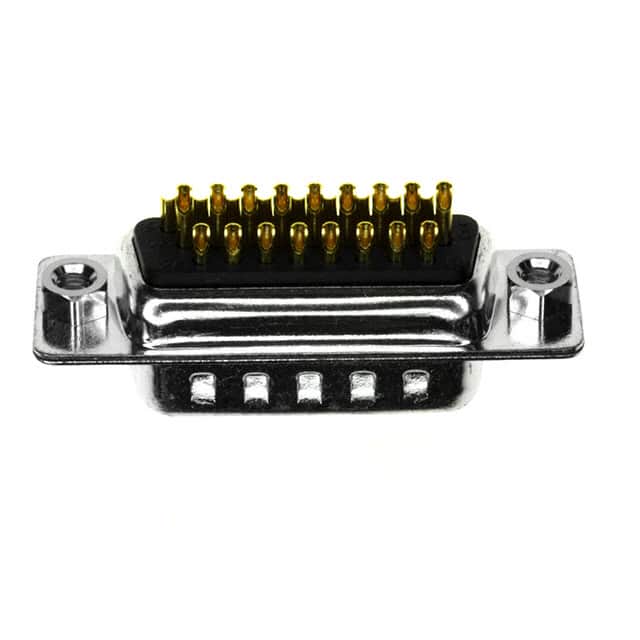

Male High-Density D-Sub 26 Position Straight Solder Cup

More >>

Specifications

Attribute	Value
Product Category:	D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:	NorComp
Manufacturer Part Number:	NorComp 180-M26-103L011
Gender:	Plug
Series:	180-M
Mount Angle:	Straight
Shell Finish:	Nickel Plated
Current Rating:	3 A
Shell Material:	Steel
Signal Wire Size:	24-28 AWG
Termination Method:	Solder Cup
Number of Positions:	26
Contact Plating:	Gold Flash
SKU:	TEX180-M26-103L011

Detailed Description

Introducing the 180-M26-103L011, a high-density D-Sub connector designed for uncompromising performance in male plug applications. Featuring 26 gold flash-plated solder cup contacts, this connector ensures reliable signal transmission even in demanding environments. Its straight mounting angle and steel shell construction guarantee a secure and durable connection. With a current rating of 3A and RoHS compliance, it meets stringent industry standards for quality and environmental responsibility. Suitable for use with 24-28 AWG signal wires, it is a versatile choice for IO and data connectivity. Trust in the 180-M26-103L011 for high-reliability connections in your electronic systems.
