780-M15-203L001

TEX780_M15_203L001
Heilind Number:TEX780-M15-203L001
Manufacturer:NorComp
Manufacturer Number:780-M15-203L001
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

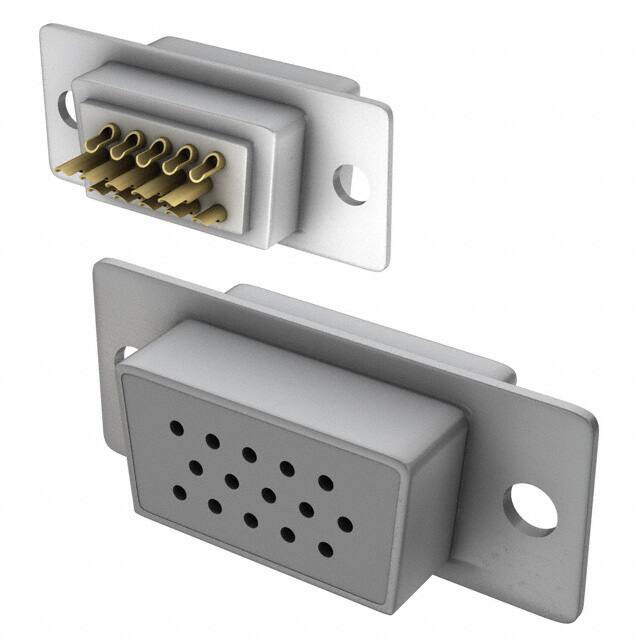

IP67 Female High Density D-Sub 15 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 780-M15-203L001
Series:780-M
Gender:Receptacle
Termination Method:Solder Cup
Contact Plating:Gold Flash
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Mount Angle:Straight
Number of Positions:15
Shell Material:Steel
Signal Wire Size:24-28 AWG
Shell Finish:Nickel Plated
Current Rating:3 A
Voltage Rating:250 VAC
SKU:TEX780-M15-203L001

Detailed Description

Introducing the 780-M15-203L001, an IP67 Female High Density D-Sub 15 Position Straight Solder Cup connector from our SEAL-D campaign. With a rugged steel shell and nickel-plated finish, this connector is designed for durability in harsh environments. Featuring gold flash contact plating, it ensures reliable signal transmission with a current rating of 3A and voltage rating of 250VAC. Operating temperatures ranging from -55°C to 125°C make it suitable for a wide range of applications. With solder cup termination and compatibility with 24-28 AWG signal wire, it offers easy installation. RoHS compliant and tested for high reliability, the 780-M15-203L001 is the perfect choice for industrial and military-grade connectivity needs.
