1-111504-8

AMP1-111504-8
Heilind Number:AMP1-111504-8
Manufacturer:TE Connectivity
Manufacturer Number:1-111504-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

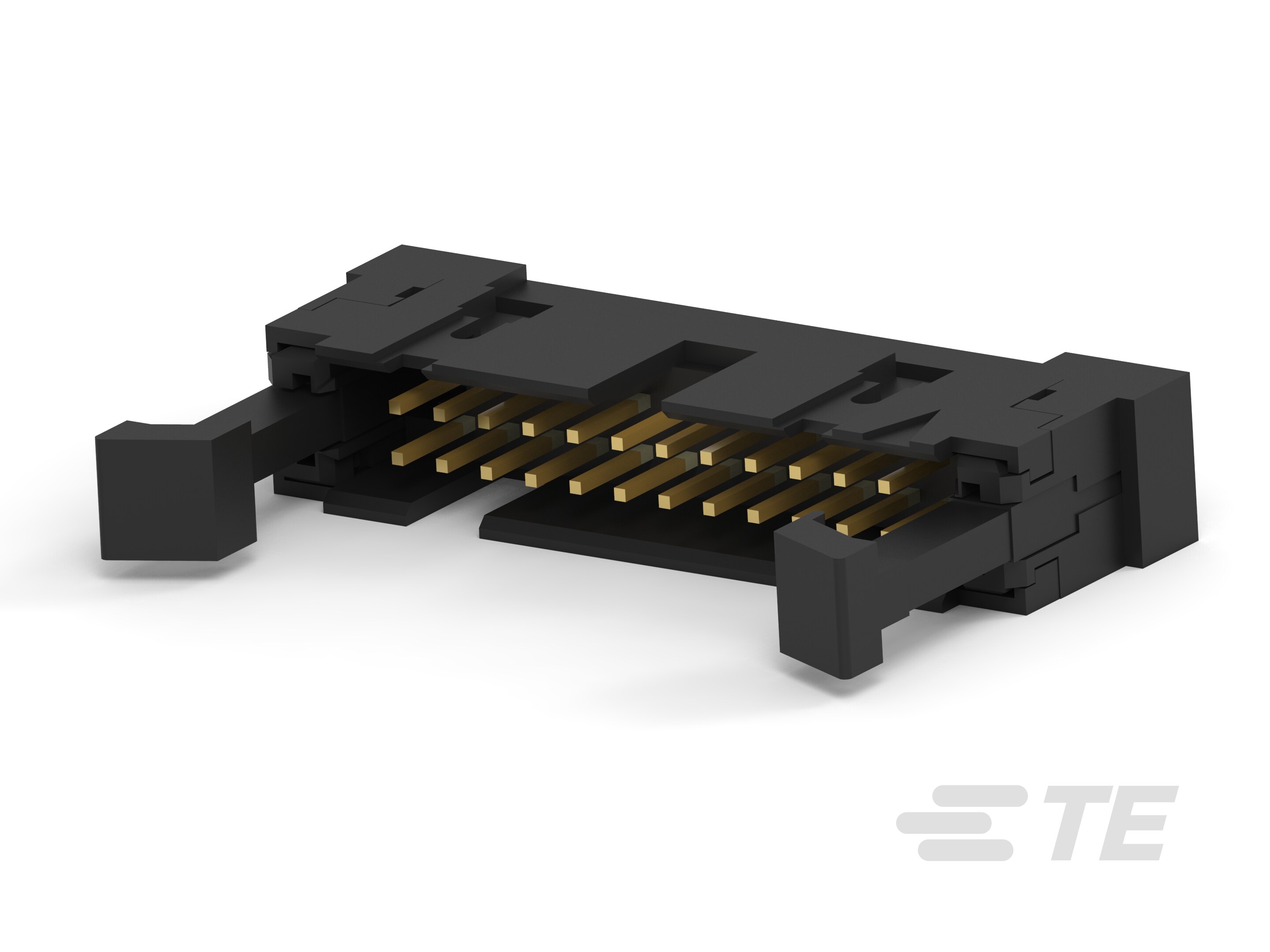

024 UNIV I/O 30DP NO EARS LTCH

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-111504-8
Amperage:1 A
Connector Type:Connector Assembly
Gender:Plug
Housing Material:Thermoplastic
Number of Contacts:24
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Insulation Displacement Crimp (IDC)
Contact Material:Phosphor Bronze
Pitch:.1 in, 2.54 mm
Voltage:250 VAC
Row Spacing:.1 in, 2 mm
Polarization:With
Package Quantity:40
Cable Type:Solid/Stranded
Contact Amperage:1 A
Number of Positions:24
Housing Color:Black
Insulation Resistance:5000 MΩ
GPL:034
Profile:Low
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-65 - 105 °C, -85 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating Thickness:29.92 µin, 30 µin, .76 µm
Panel Mount:Without
PCB Retention:Without
Contact Termination Plating Thickness:100 µin
PCB Contact Termination Area Plating:Tin
Connector Height:1.095 in, 27.81 mm
Mating Alignment:With
Mating Alignment Type:Keyed
Mating Connector Lock Type:Ejection Latch
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:0799
Wire Size:.08 - .15 mm², 158 - 296 CMA, 26 - 28 AWG
Contact Design:Tuning Fork
Contact Transmits:Signal (Data)
Connector Length:1.772 in, 45.01 mm
Connector System:Wire to Wire
CSA Agency Certification:LR 7189
UL Agency Certification:E28476
Connector Product Type:Connector
Mating Post Length:.24 in, 6.1 mm
Connector Width:.33 in, 8.38 mm
Termination Post Length:.13 in, 3.3 mm
Header Type:Shrouded
Mating Connector Lock:With
Accepts Wire Insulation Diameter:.032 - .038 in, .81 - .97 mm
Voltage Rating (UL):250 V AC
Solder Tail Contact Plating Finish:Matte
Board Standoff:Without
Shrouded End Dimension:.15 in, 3.81 mm
Daisy Chain:Without
Ejection Latches:With
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-111504-8
SKU:AMP1-111504-8

Detailed Description

Enhance your connectivity with this robust IDC Connector Assembly, featuring a durable thermoplastic housing and precision-engineered Phosphor Bronze contacts. Designed for seamless cable mounting, this connector boasts two rows with 24 contacts, offering reliable signal transmission in various applications. With UL and CSA certifications, you can trust in its quality and safety compliance. The insulation displacement crimp termination method ensures easy and secure wire connections, accommodating solid/stranded cables. Operating within a wide temperature range and with a 250 VAC voltage rating, this connector is ideal for demanding environments. Its low-profile design and latch mating retention provide convenience and stability during assembly. Whether for data or device connectivity, this connector is a versatile solution. With RoHS compliance and high insulation resistance, it meets stringent industry standards for environmental responsibility and performance. Elevate your connectivity solutions with this high-quality IDC Ribbon Cable Connector.
