1-1586040-6

AMP1-1586040-6
Heilind Number:AMP1-1586040-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1586040-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

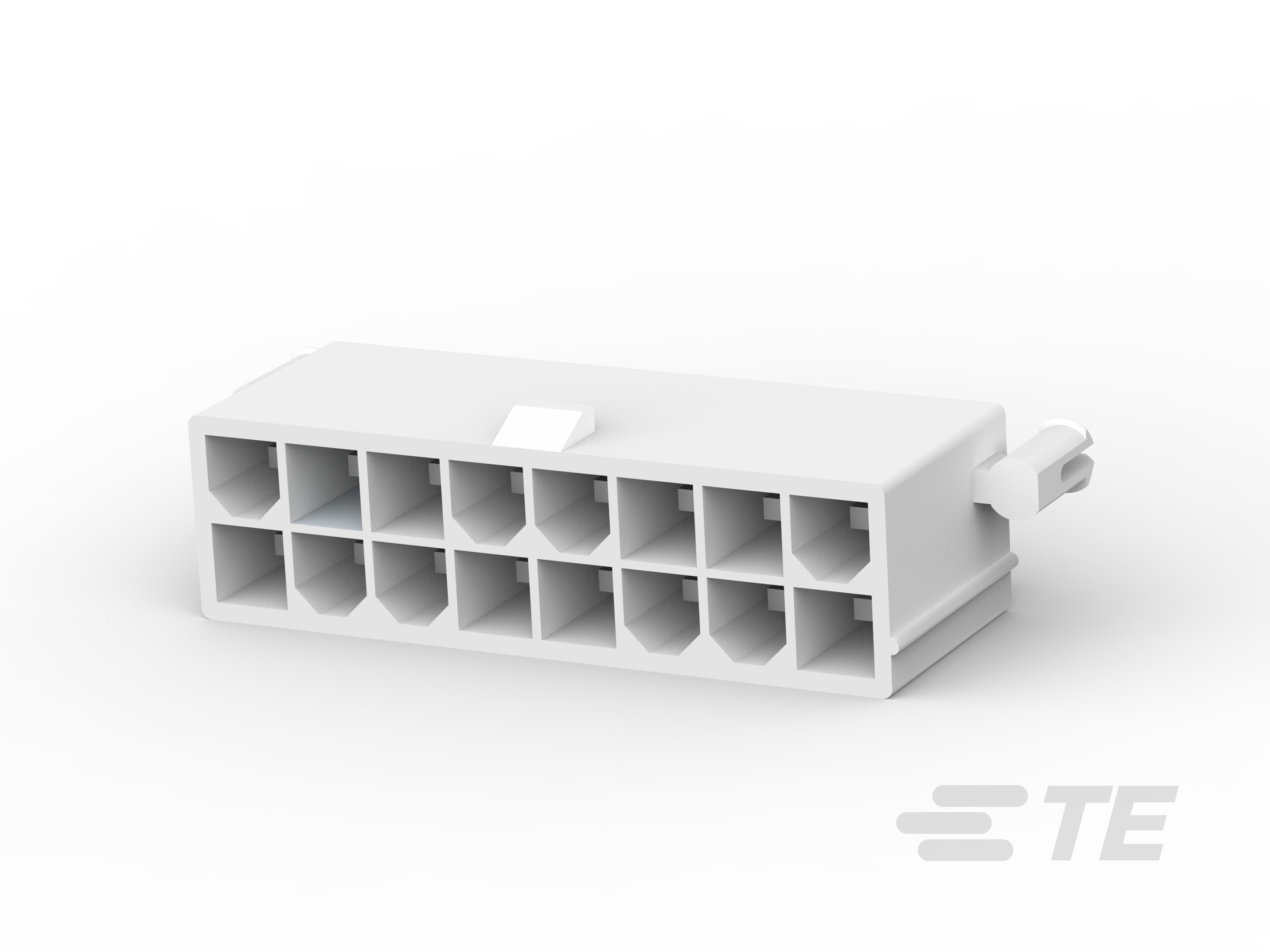

16P VAL-U-LOK VRT HDR W/P V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1586040-6
Housing Material:Nylon
Number of Rows:2
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:135
Contact Amperage:9 A
Number of Positions:16
Housing Color:Natural
Mount Orientation:Vertical
GPL:G31
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 µm, 80 µin
PCB Retention:With
PCB Thickness (Recommended):.063 in, 1.6 mm
Connector Height:12.8 mm, .504 in
PCB Retention Type:Boardlock
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K926
Number of Power Positions:16
Contact Layout:Inline
Connector Length:1.37 in, 34.8 mm
Connector System:Wire to Board
CSA Agency Certification:208567
Contact Termination Plating:Tin
Connector Product Type:Header
ECCN:EAR99
Connector Width:.386 in, 9.8 mm
Mating Retention:With
PCB Mount Alignment:With
Termination Post Tail Length:.138 in, 3.5 mm
Header Type:Shrouded
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-1586040-6
SKU:AMP1-1586040-6

Detailed Description

Enhance power connections with this CSA and UL-certified board mount header, ideal for appliances. With a housing made of UL 94V-0 rated nylon, it offers robust insulation and safety. Featuring 16 pin contacts with through-hole solder termination, it ensures reliable connectivity in power applications. The vertical mount orientation and boardlock system provide secure installation on PCBs with a thickness of 1.6mm. With a contact rating of 9A and voltage capability of 600V AC, it meets stringent performance standards. The connector also boasts tin plating for efficient signal transmission and operates in temperatures ranging from -40 to 105°C. Its tray packaging and 135-piece quantity make it convenient for assembly. RoHS compliant, it aligns with environmental regulations. Suitable for wire-to-board setups, this header with a shrouded design guarantees proper mating alignment for seamless integration.
