1-282966-0

AMP1-282966-0
Heilind Number:AMP1-282966-0
Manufacturer:TE Connectivity
Manufacturer Number:1-282966-0
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

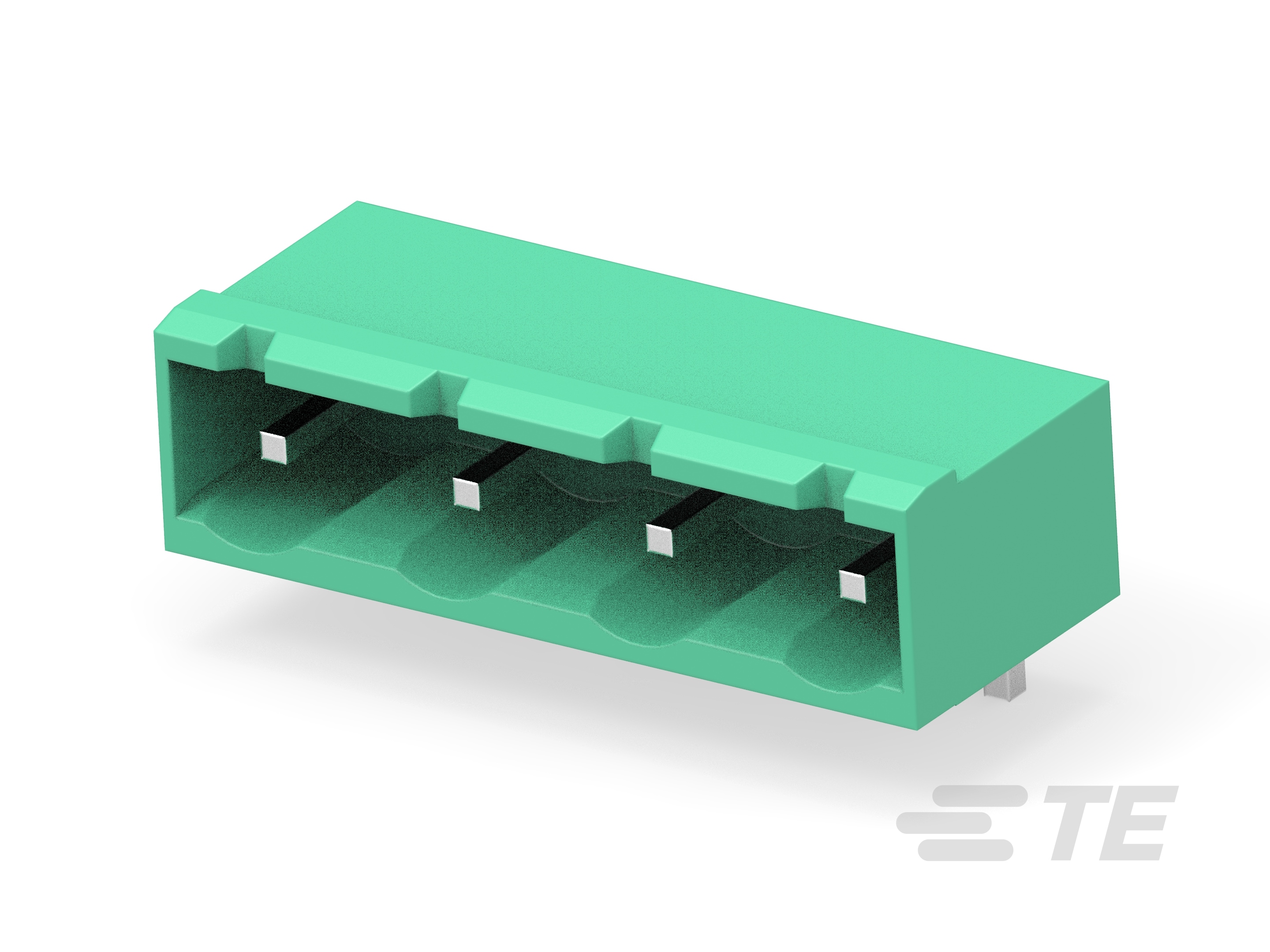

TERMI-BLOK HEADER ASSY 10P.7

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-282966-0
Amperage:15 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.3 in, 7.62 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:25
Contact Amperage:15 A
Number of Positions:10
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:1-282966-0
SKU:AMP1-282966-0

Detailed Description

Easily connect power and signal circuits with this TERMI-BLOK HEADER ASSY 10P.7. Designed for board mount installation with a right-angle orientation, the header features 10 positions in a single row, accommodating wire sizes ranging from 12 to 30 AWG. With a durable PA 6/6 housing in green, it ensures reliable performance in industrial settings. Each package includes 25 units, all meeting RoHS compliance for environmental responsibility. Operating within a wide temperature range of -40 to 105°C, this header is suitable for various applications, guaranteeing a secure and efficient connection to printed circuit boards.
