1437259-6

AMP1437259-6
Heilind Number:AMP1437259-6
Manufacturer:TE Connectivity
Manufacturer Number:1437259-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

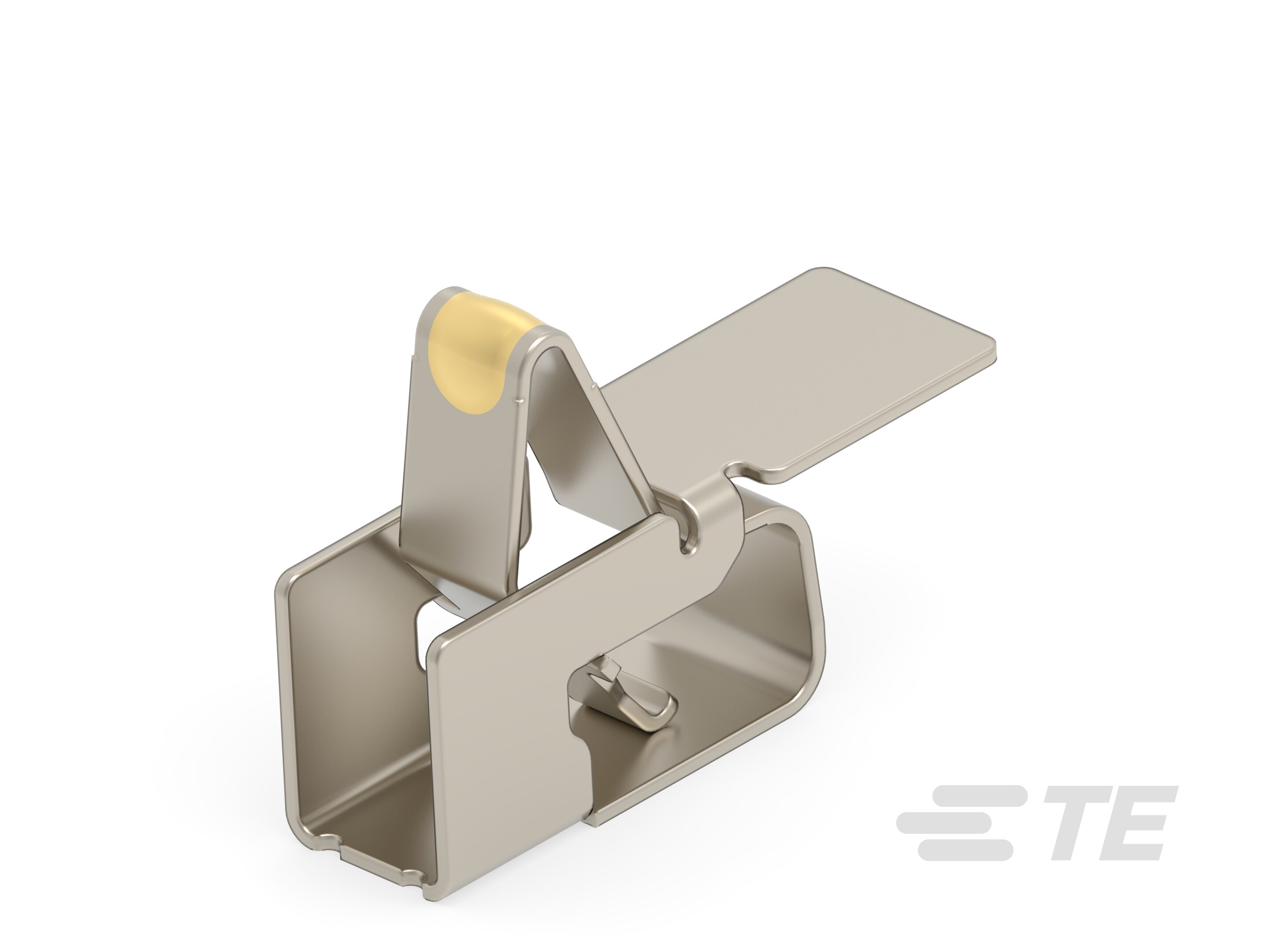

3100089=SHIELD FINGER

More >>

Specifications

AttributeValue
Product Category:
Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1437259-6
Contact Material:Copper Alloy
Contact Length:.276 in, 7 mm
Contact Width:.098 in, 2.5 mm
Package Quantity:2000
Contact Amperage:1.5 A
Number of Positions:1
GPL:K85
Packaging:Tape & Reel
Operating Temperature Range:-40 - 185 °F, -40 - 85 °C
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Gold
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:F211
Connector System:Board to Board
ECCN:EAR99
Height:.157 in, 4 mm
Scalable:No
Spring Finger Type:C-Clip
Side Protected:No
Contact Working Range High:.094 in, 2.4 mm
Contact Working Range Low:.126 in, 3.2 mm
Part Aliases:3100089 1437259-6
SKU:AMP1437259-6

Detailed Description

Enhance your signal connections with these high-performance board-to-board connectors. Made of durable copper alloy with gold plating, they ensure reliable conductivity in a wide operating temperature range from -40 to 85°C (-40 to 185°F). With a contact amperage of 1.5A, they are suitable for various circuit applications. The C-Clip spring finger design offers secure attachment to printed circuit boards, while the tape and reel packaging makes them convenient for high-volume production. Meeting RoHS compliance standards, these connectors are not only efficient but also environmentally friendly. Upgrade your connectivity solutions with our Data and Devices-approved connector system.
