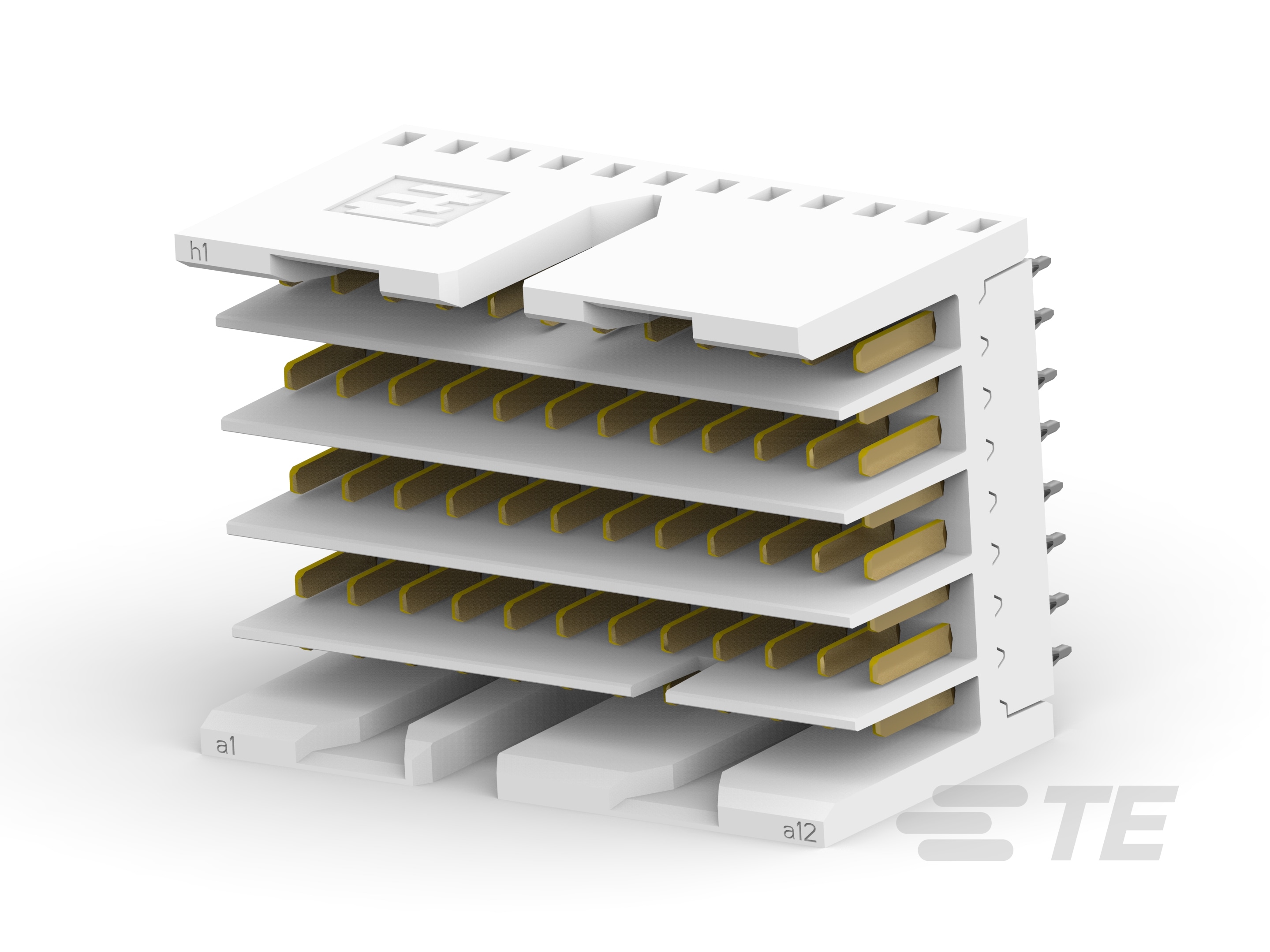

1982738-2

AMP1982738-2
Heilind Number:AMP1982738-2
Manufacturer:TE Connectivity
Manufacturer Number:1982738-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Female Connector IEC

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1982738-2
Series:Z-PACK Slim UHD
Amperage:.5 A
Connector Type:Receptacle
Gender:Receptacle
Housing Material:LCP (Liquid Crystal Polymer)
Number of Rows:8
Termination Method:Through Hole - Press-Fit
Contact Material:Copper Alloy
Body Orientation:Right Angle
Pitch:.057 in, 1.45 mm
Voltage:30 V AC
Contact Type:Socket
Contact Length:24.5 mm
Row Spacing:.05 in, 1.25 mm
Impedance:30 Ω
PCB Hole Diameter:.016 in, .4 mm
Number of Pairs:96
Number of Positions:192
Data Rate:3.5 Gb/s, ≤3.5 Gb/s
Housing Color:Natural
Mount Orientation:Right Angle
Termination Type:Without
Module Type:Center
GPL:K76
Shield Material:Copper Alloy
Tail Length:1.6 mm, .681 in
Packaging:Tray
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Signal
PCB Retention:With
Contact Underplating Material:Nickel
PCB Thickness (Recommended):1.2 mm
Connector Height:12.51 mm, .493 in
PCB Retention Type:Action/Compliant Tail
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L514
Number of Columns:12
Number of Signal Positions:192
Preloaded:Yes
Contact Design:Dual Beam
Contact Transmits:Signal (Data)
Connector Length:.965 in
Connector System:Board to Board
Contact Termination Plating:Tin
Stackable:Yes
Connector Product Type:Connector
Pairs Per Column:8
Contact Style:Press-Fit
Connector Width:17.3 mm, .681 in
Mating Retention:Without
PCB Mount Alignment:With
PCB Mount Alignment Type:Action/Compliant Tail
Make First / Break Last:No
Stack Height:1.6 mm
Shroud Type:No
Post Type:Through Hole - Press-Fit
PCB Contact Termination Area Plating Thickness:20 - 100 µin, .5 - 2.5 µm
End Wall Location:None
Guide Hardware:Without
Durability Rating (Cycles):250 Cycles
Standards Met:UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:1982738-2
SKU:AMP1982738-2

Detailed Description

Explore seamless connectivity with our Female Connector IEC from the Z-PACK Slim UHD series. Designed for high performance, this receptacle features UL 94V-0 standards compliance, making it ideal for signal transmission in demanding environments. With a right-angle body orientation and through-hole press-fit termination method, it ensures secure and efficient PCB mounting. The LCP housing material and copper alloy contacts guarantee durability and reliability, while the 1.45mm pitch and 30Ω impedance support high-speed data transfer up to 3.5 Gb/s. Perfect for board-to-board applications, this connector offers 192 signal positions arranged in 12 columns, with preloaded dual-beam contacts for optimal signal transmission. Its natural housing color and tray packaging make it easy to integrate into your setup, while its wide operating temperature range of -55 to 105°C ensures performance in various conditions. RoHS compliant and with a 250-cycle durability rating, it meets stringent quality standards for your peace of mind. Elevate your connectivity solutions with this advanced Female Connector IEC.
