2-1419104-5

AMP2-1419104-5
Heilind Number:AMP2-1419104-5
Manufacturer:TE Connectivity
Manufacturer Number:2-1419104-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

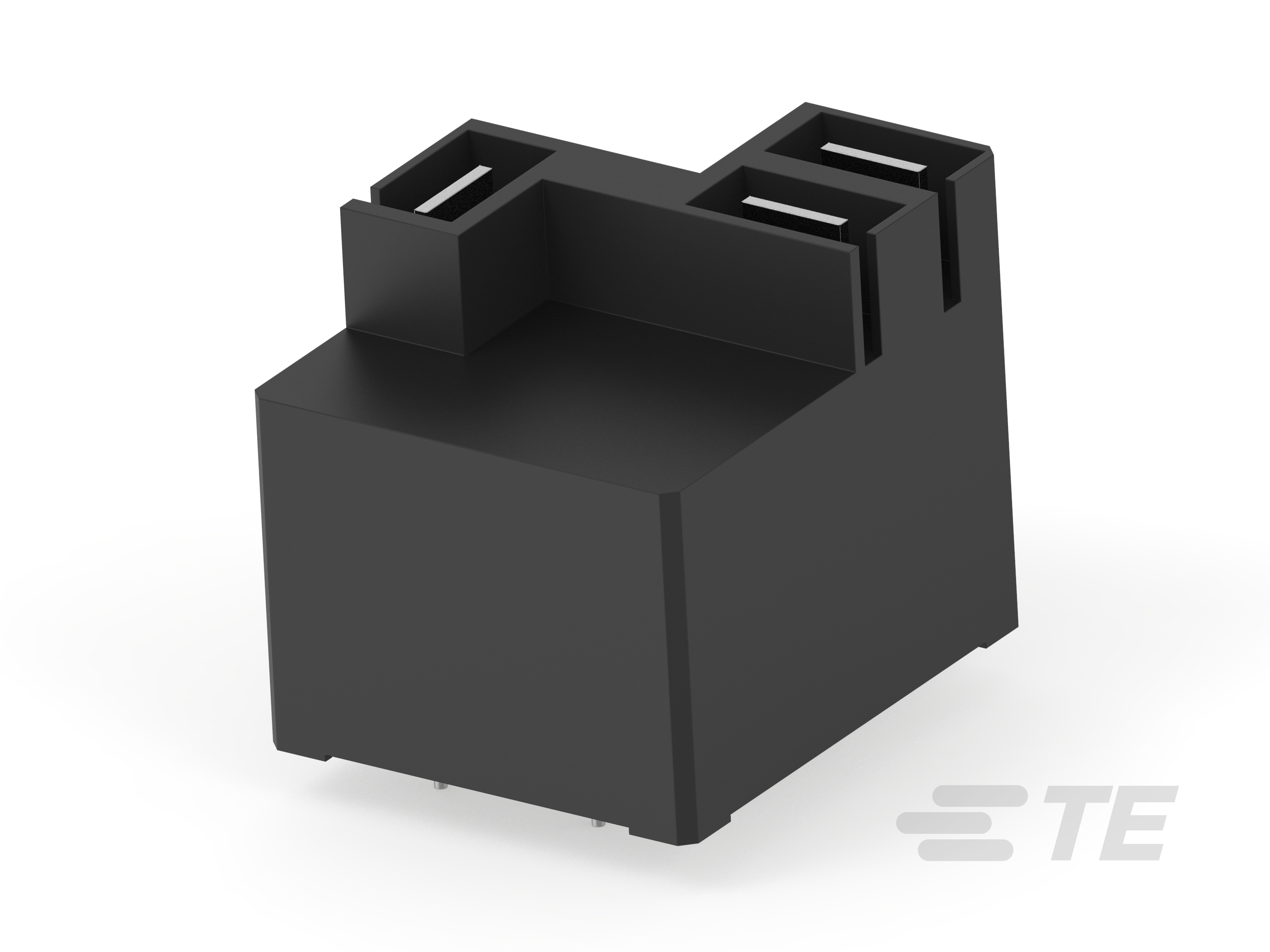

T9AS1L22-12

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2-1419104-5
Amperage:30 A
Mount Type:Printed Circuit Board
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Plating:Silver Cadmium Oxide (AgCdO)
Number of Poles:1
Coil Resistance:155 Ω
Coil Current:.076 A
Coil Voltage:12 VDC
Output Type:AC
Maximum Output Voltage:240 V
Maximum Switching Voltage:277 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:277 VAC
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Contact Arrangement:1 Form A (NO)
SKU:AMP2-1419104-5

Detailed Description

Experience seamless power relay performance with our T9AS1L22-12 model. Designed for Printed Circuit Board mounting, this relay boasts a robust amperage of 30A, making it ideal for high-power applications. Its Silver Cadmium Oxide (AgCdO) contact material ensures reliable conductivity, while the 1 Form A (NO) contact arrangement offers versatile switching capabilities. With a coil voltage of 12VDC and a coil resistance of 155Ω, it operates efficiently even in demanding conditions, with an operating temperature range of -55 to 85°C (-67 to 185°F). This RoHS-compliant relay guarantees both performance and environmental responsibility, making it a top choice for your power relay needs.
