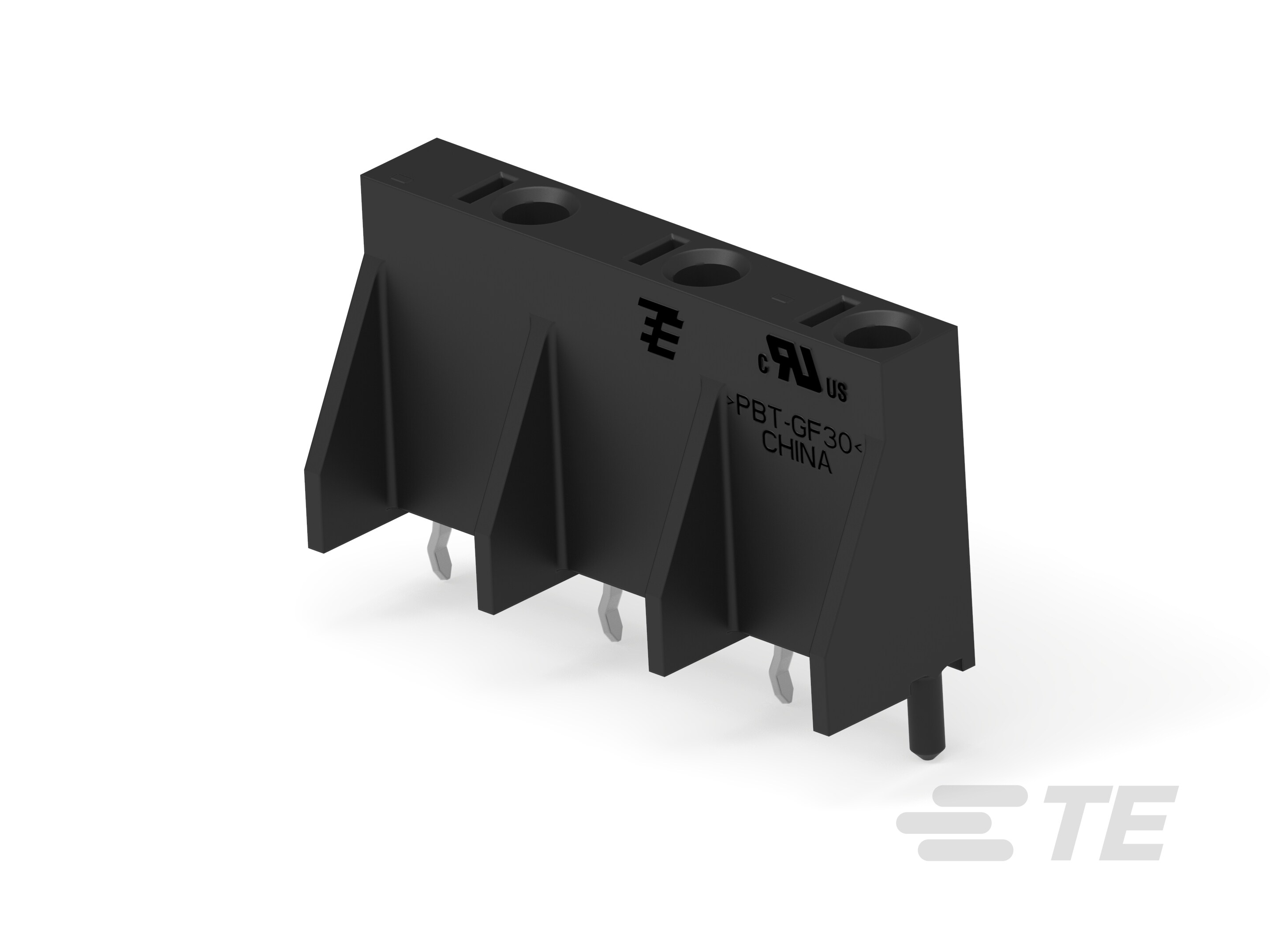

2008552-3

AMP2008552-3
Heilind Number:AMP2008552-3
Manufacturer:TE Connectivity
Manufacturer Number:2008552-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

ASSY,IN-LINE VERT SCREWLESS WIRE ;ASy,In-Line Vert Scrless Wire

More >>

Specifications

AttributeValue
Product Category:
Lighting Connectors & Accessories Lighting Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2008552-3
Color:Black
Connector Type:Header
Gender:Screwless Wire
Housing Material:Polybutylene Terephthalate - GF
Number of Rows:1
Mount Type:Board Mount
Termination Method:Poke-In, Through Hole - Solder
Contact Plating:Tin
Pitch:.323 in, 8.2 mm
Voltage:600 V AC, 600 V DC
Strain Relief:No Strain Relief
Mount Angle:Vertical
Diameter:.0866 ;2.2 mm
Contact Amperage:6 A
Number of Positions:3
Housing Color:Black
GPL:K50
Packaging:Box & Tray, Tray
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 - 3.05 µm, 79.92 - 120.08 µin
PCB Retention:With
Contact Termination Plating Thickness:120 µin, 3.05 µm
PCB Thickness (Recommended):.07 in, 1.8 mm
Connector Height:13 mm, .512 in
PCB Retention Type:Boardlock
Sealable:No
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:H095
Preloaded:Yes
Wire Size:18 AWG
Contact Layout:Inline
Connector Length:25 mm, .984 in
Connector System:Wire to Board
Contact Termination Plating:Tin
Connector Product Type:Connector
ECCN:EAR99
Contact Mating Area Plating Finish:Matte
Connector Width:.289 in, 7.35 mm
PCB Mount Alignment:With
Make First / Break Last:No
Accepts Wire Insulation Diameter:.0866 in, 2.2 mm
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:Without
Contact Termination Area Plating Finish:Matte
Header Mating Orientation:Vertical
Stamped and Formed:Yes
Toolless Wire Termination:Yes
UV Exposure Rated :No
Standards Met:C22.2 No. 182.3 UL 1977 UL 94V-0 CSA
Material Flammability Standard:UL 94V-0
Part Aliases:2008552-3
SKU:AMP2008552-3

Detailed Description

Assembly, In-Line Vertical Screwless Wire Connector: This connector features a black Polybutylene Terephthalate housing, meeting standards C22.2 No. 182.3, UL 1977, UL 94V-0, and CSA. With a header connector type and termination method of Through Hole - Solder, Poke-In, it offers reliable performance in power circuit applications. The contact plating is Tin, with a pitch of .323 in (8.2 mm), suitable for wire sizes up to 18 AWG. Operating at voltage ratings of 600 V AC and 600 V DC, it ensures secure connections on printed circuit boards with a thickness of 1.8 mm (.07 in). Designed for vertical board mount installation, this connector has a compact profile with a connector height of 13 mm (.512 in) and width of .289 in (7.35 mm). Its preloaded assembly and toolless wire termination feature make it easy to install, while its compliance with RoHS regulations ensures environmental responsibility. Ideal for industrial applications, this connector offers efficient wire-to-board connectivity with stamped and formed contacts.
