2029112-3

AMP2029112-3
Heilind Number:AMP2029112-3
Manufacturer:TE Connectivity
Manufacturer Number:2029112-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

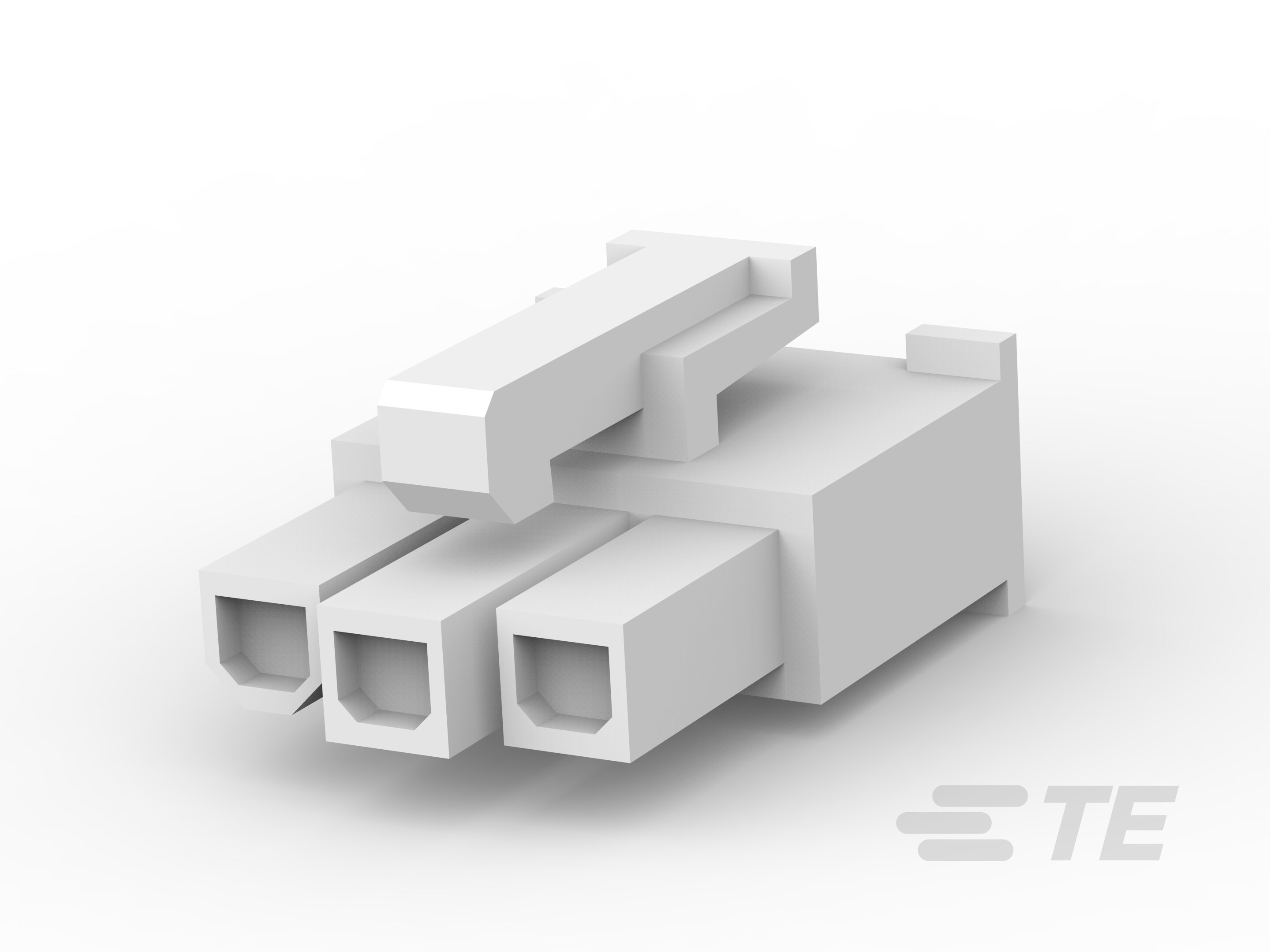

3P RCPT SR VAL-U-LOK GW

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2029112-3
Housing Material:Nylon 6/6
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Socket
Package Quantity:1000
Cable Type:Discrete Wire
Number of Positions:3
Housing Color:White
GPL:G31
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Connector Height:.291 in, 7.4 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Contact Layout:Inline
Connector Length:13.8 mm, .543 in
Connector System:Wire to Wire
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:20.6 mm, .811 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:GWT 750°C (Without Flame)
Circuit Identification Feature:With
Connector and Housing Type:Receptacle
Standards Met:UL CSA
Material Flammability Standard:UL 94V-2
Part Aliases:2029112-3
SKU:AMP2029112-3

Detailed Description

Enhance your power and signal connections with this high-quality connector housing, a reliable component for various appliances. Meeting UL and CSA standards, it ensures safe and efficient performance with its durable Nylon 6/6 construction and UL 94V-2 flammability rating. With a cable mount design and crimp termination method, it offers easy installation for discrete wire connections. Featuring three positions and a 4.2 mm pitch, this white housing is suitable for power and signal applications. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it guarantees reliability in diverse environments. RoHS compliant and with CSA agency certification, this connector housing is a dependable choice for your connectivity needs.
