2307185-3

AMP2307185-3
Heilind Number:AMP2307185-3
Manufacturer:TE Connectivity
Manufacturer Number:2307185-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

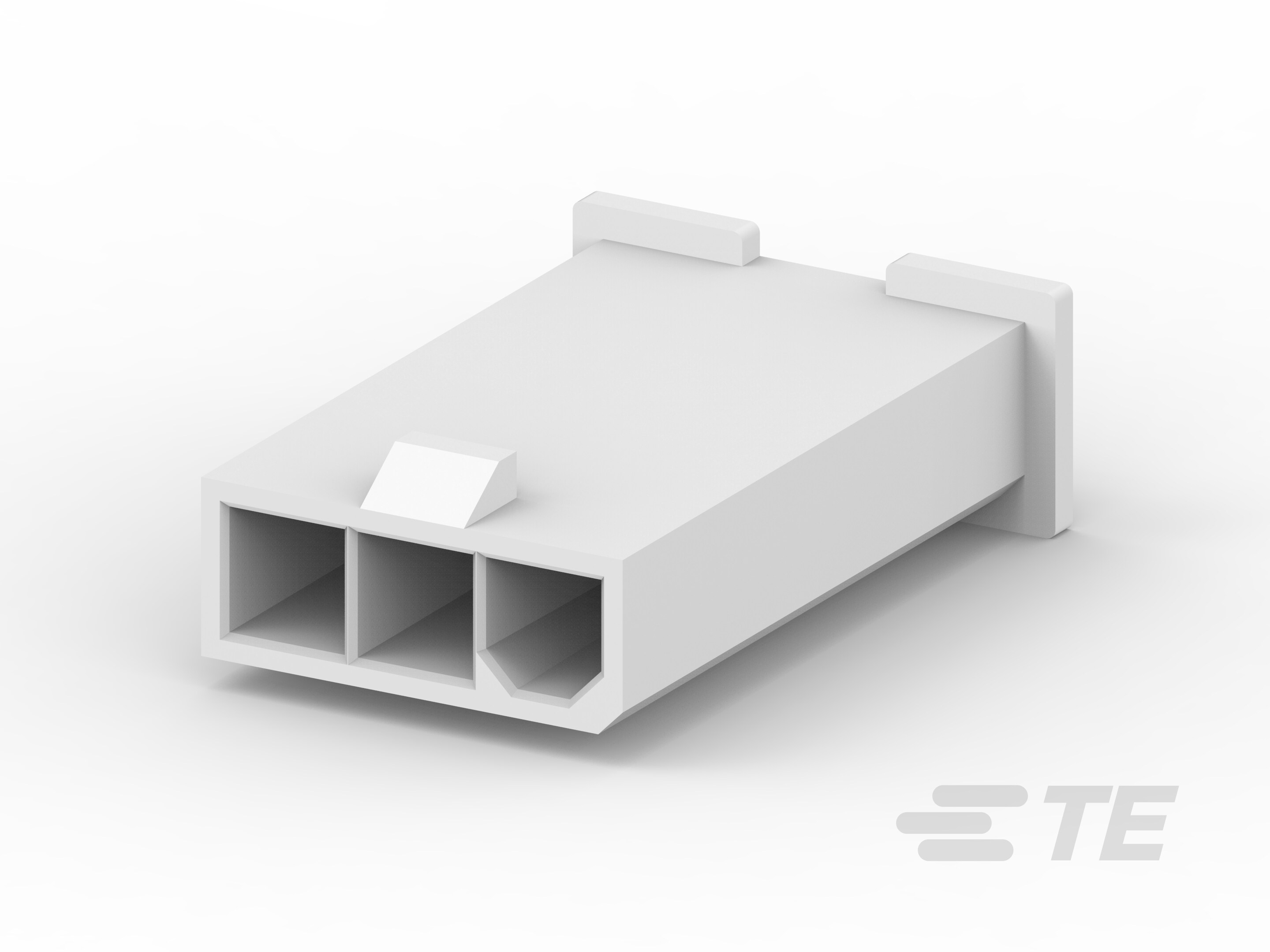

3P PLUG SR VAL-U-LOK FH GW - TPA VERSION

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2307185-3
Housing Material:Nylon
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Package Quantity:1000
Cable Type:Discrete Wire
Number of Positions:3
Housing Color:White
GPL:G31
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Signal
Connector Height:.291 in, 7.4 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Number of Signal Positions:3
Contact Layout:Inline
Connector Length:13.8 mm, .543 in
Connector System:Wire to Wire
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:23.9 mm, .94 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:GWT 750°C (Without Flame)
Circuit Identification Feature:With
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-2
Part Aliases:2307185-3
SKU:AMP2307185-3

Detailed Description

Meet industry standards with our CSA and UL certified 3-position connector housing, perfect for cable mounting in various applications. Crafted from durable nylon in a sleek white finish, this housing features a single row design with a 4.2mm pitch for efficient connectivity. With a high voltage rating of 600V AC, it ensures reliable performance. The crimp termination method allows for easy installation, while its compact size and operating temperature range of -40 to 105°C make it suitable for diverse environments. Ideal for signal circuit applications, this connector housing is RoHS compliant, guaranteeing environmentally friendly manufacturing. Each package includes 1000 units, perfect for bulk projects. Upgrade your power connections with this essential component.
