2040340-1

AMP2040340-1
Heilind Number:AMP2040340-1
Manufacturer:TE Connectivity
Manufacturer Number:2040340-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

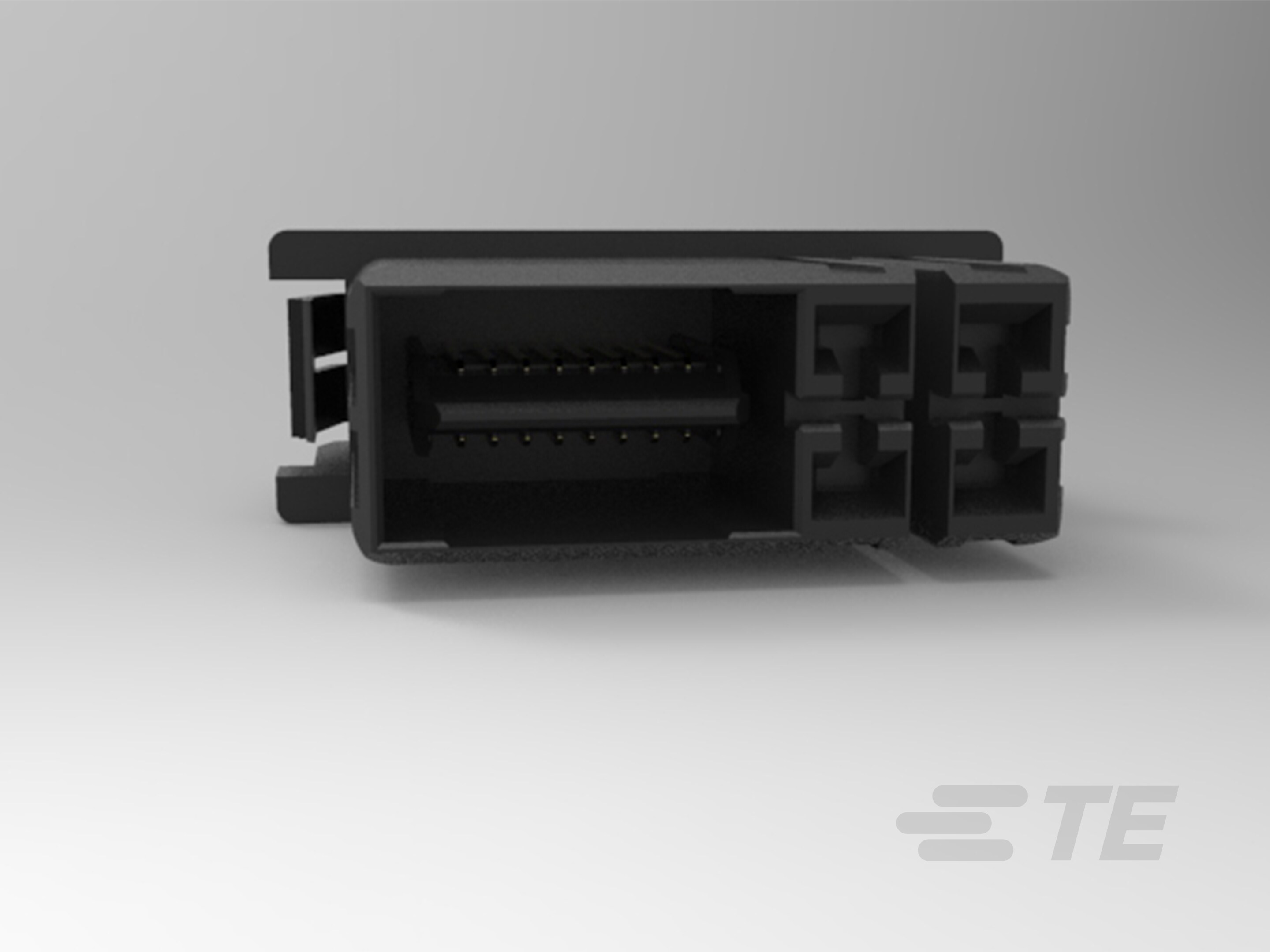

PLUG ASSY MINI CT HYBRID DRAWER SLIMTYPE

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2040340-1
Color:Black
Amperage:12 A
Connector Type:Housing
Gender:Plug
Housing Material:Polybutylene Terephthalate - GF
Number of Rows:2
Mount Type:Panel
Termination Method:Crimp/IDC
Contact Material:Phosphor Bronze
Pitch:.059 in, 1.5 mm
Row Spacing:.311 in, 7.9 mm
Number of Positions:21
Housing Color:Black
GPL:K13
Packaging:Box & Tray, Tray
Operating Temperature Range:-22 - 221 °F, -30 - 105 °C
Circuit Application:Power & Signal
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:1005
Drawer Style:Hybrid, Mini CT, Snap-Fit
Connector Length:45.5 mm
Connector System:Wire to Wire
Connector Product Type:Connector
Mating Retention:Without
Material Flammability Standard:UL 94V-0
Part Aliases:2040340-1
SKU:AMP2040340-1

Detailed Description

Enhance your connectivity with our Plug Assembly, designed for Mini CT Hybrid Drawers in a sleek Slimtype format. This black housing, crafted from Polybutylene Terephthalate - GF, ensures durability and performance. With 21 positions and a 1.5mm pitch, it offers reliable power and signal transmission. The Crimp/IDC termination method simplifies installation on panel mounts. Operating in a wide temperature range of -30 to 105°C (-22 to 221°F), this connector is suitable for various environments. Its UL 94V-0 flammability standard compliance guarantees safety. Ideal for data and device applications, this connector, part of our Wire to Wire system, is RoHS compliant for environmental responsibility. Upgrade your PCB connectivity with this high-quality component.
