2108921-7

AMP2108921_7
Heilind Number:AMP2108921-7
Manufacturer:TE Connectivity
Manufacturer Number:2108921-7
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

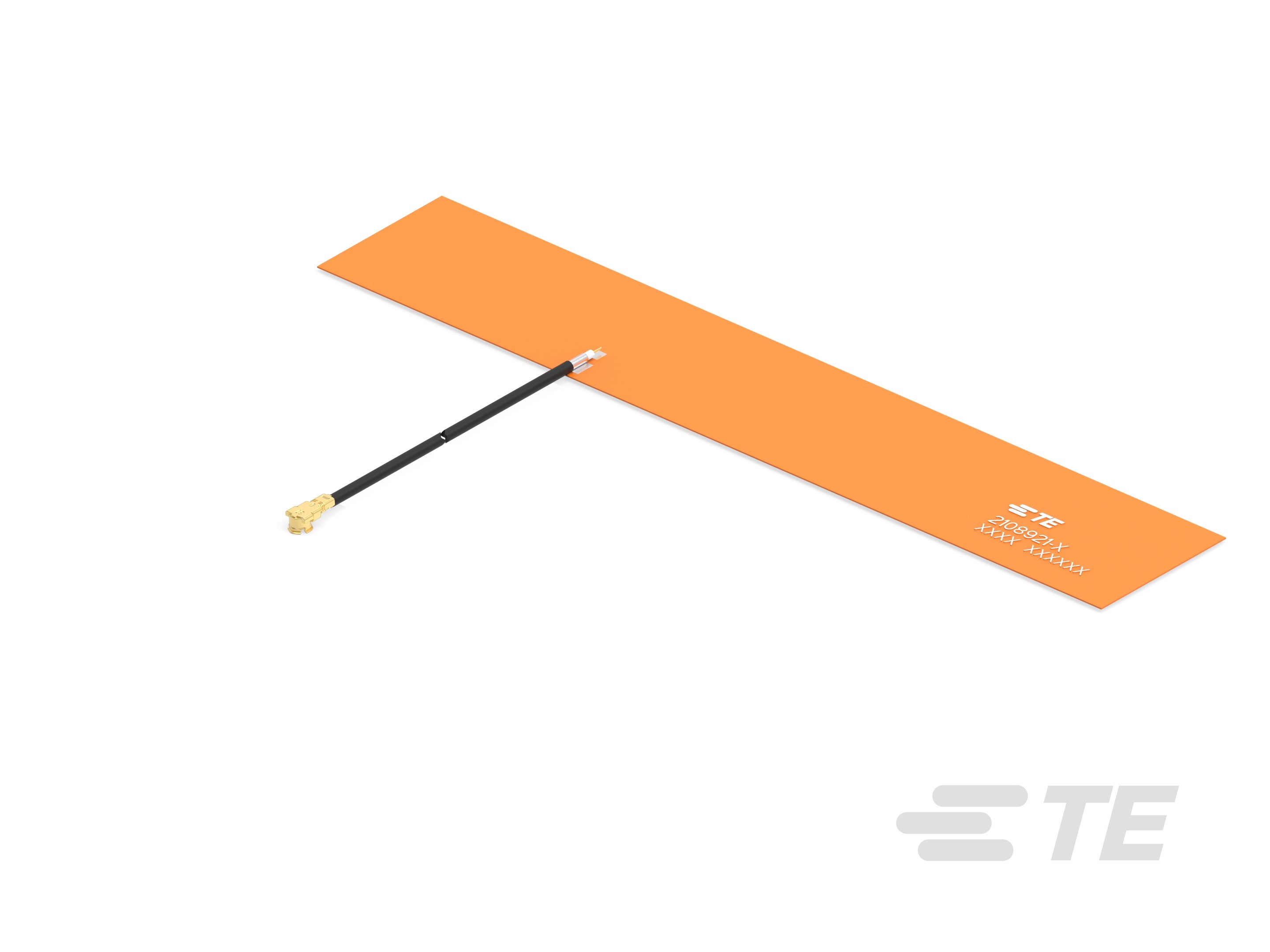

Flexible PCB (FPC) Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108921-7
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Mounting Style:Adhesive
VSWR:3.4:1
Antenna Type:Flexible PCB
Antenna Termination Type:MHF4
Application:5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
Band Type:Multi Band
Center Frequency:1563.5 MHz, 2200 MHz, 3650 MHz, 4500 MHz, 5500 MHz, 6562.5 MHz, 788.5 MHz
Directionality:Omnidirectional
Frequency Range:1427 - 1700 MHz, 1700 - 2700 MHz, 3300 - 4000 MHz, 4000 - 5000 MHz, 5000 - 6000 MHz, 6000 - 7125 MHz, 617 - 960 MHz
Gain:4.2 dB
SKU:AMP2108921-7

Detailed Description

Enhance your connectivity with this high-performance Flexible PCB (FPC) Antenna, designed for seamless integration in a variety of devices. Offering multi-band support for 5G, Cat-M/NB-IoT, and Cellular technologies, it ensures reliable communication across diverse networks. With a linear polarization and omnidirectional directionality, it optimizes signal transmission in all directions. Its adhesive mounting style and compact MHF4 termination make it easy to install internally or embed in devices. Operating across a wide frequency range from 1427MHz to 7125MHz, including key bands like 5G and Wi-Fi, it caters to various wireless applications with efficiency. This RoHS compliant antenna is a versatile solution for boosting connectivity in IoT devices, smartphones, and more.
