2108948-2

AMP2108948_2
Heilind Number:AMP2108948-2
Manufacturer:TE Connectivity
Manufacturer Number:2108948-2
Datasheet:Material Declaration (XLSX)
ECAD Model:
3D Model

Description:

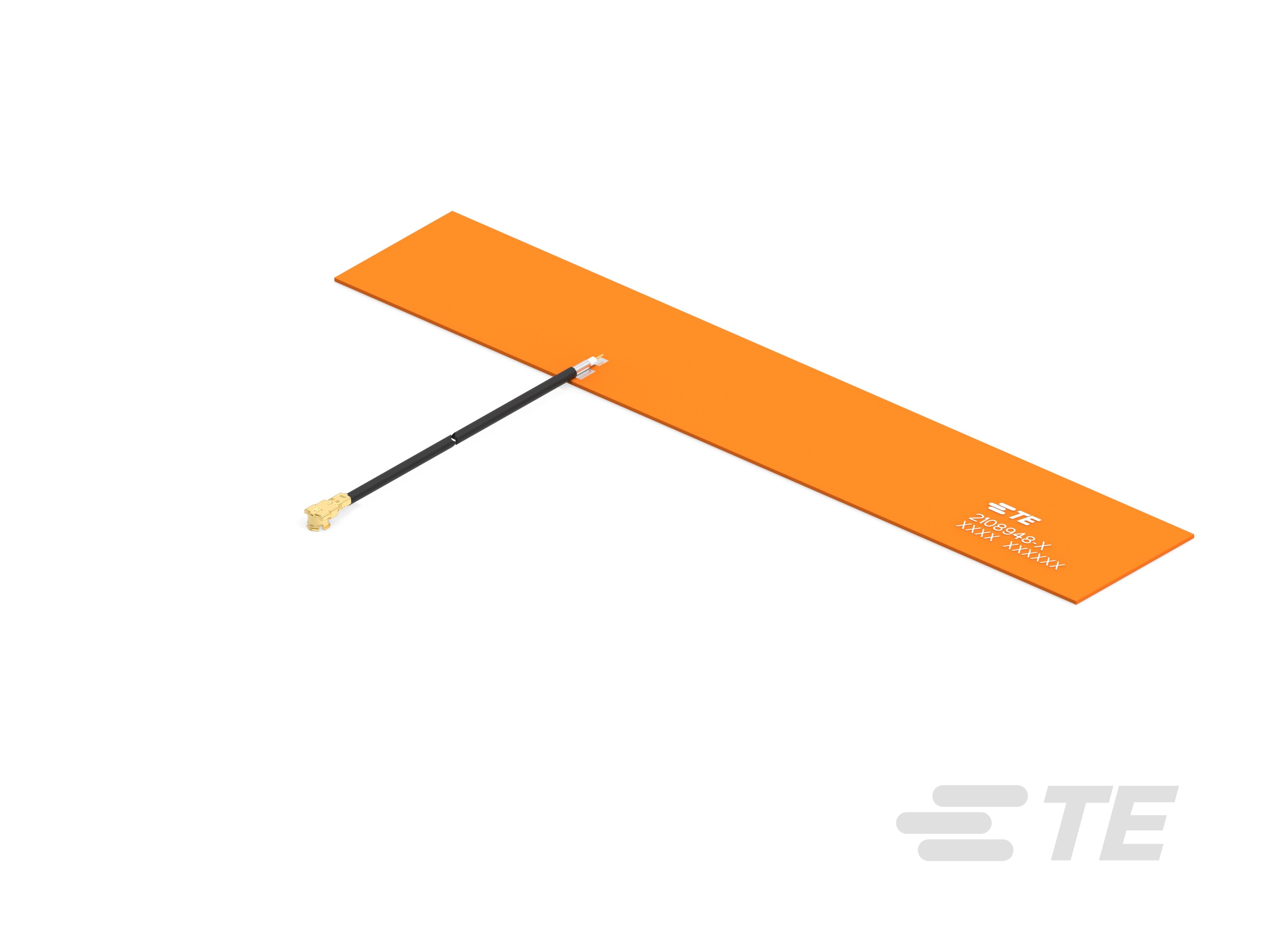

PCB Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108948-2
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Mounting Style:Adhesive
VSWR:3.6:1
Antenna Type:PCB
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
Band Type:Multi Band
Center Frequency:2925 MHz, 6062.5 MHz, 685 MHz
Directionality:Omnidirectional
Frequency Range:1850 - 4000 MHz, 5000 - 7125 MHz, 680 - 690 MHz
Gain:4.3 dB
SKU:AMP2108948-2

Detailed Description

Ensure seamless connectivity with this RoHS-compliant PCB antenna, boasting a 4.3 dB gain and 3.6:1 VSWR for optimal performance across multiple protocols including ZigBee, Bluetooth, LTE, UMTS, and various 802.11 standards. Designed for EU Triband and US Dual Band compatibility, this multi-band antenna operates within the frequency range of 1850 - 4000 MHz, 5000 - 7125 MHz, and 680 - 690 MHz. With linear polarization and omnidirectional directionality, it offers reliable signal transmission for 5G, Cat-M/NB-IoT, Cellular, GNSS, and Wi-Fi applications. Featuring an internal/embedded mount with adhesive backing, this antenna is suitable for various installations. Compatible with MHF, MHF1, U.FL, and UMCC connectors, it ensures easy integration into your system. Trust in this high-quality antenna for seamless wireless connectivity in diverse environments.
